- 0.25°C resolution
- ±1.5°C Accuracy 40°C to 85°C
- Small 6-lead SOT RoHS compliant packages
- Select 1 of 4 per package, 8 addresses available
- Maskable Interrupt using ALERT#
- One-shot Command during standby
- 47uA at 0.0625 Conversions per Second (Typical)
- 4.8uA in Standby (Typical)
- SMBus 2.0 Compliant interface
- Programmable temperature conversion rate
- Desktop and Notebook Computers
- Thermostats
- Smart batteries
- Industrial/Automotive
- Other Electronic Systems
NOT RECOMMENDED FOR NEW DESIGN -use MCP9800 as alternative

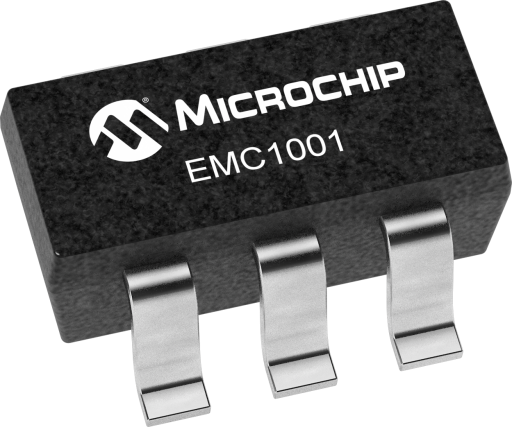

The EMC1001 is a tiny I2C / SMBus temperature sensor with ±1.5°C accuracy and two interrupts. Packaged in a SOT23-6, the EMC1001 provides an accurate, low-cost, low-current, solution for critical temperature monitoring in a PC or embedded applications.
The EMC1001 generates two separate interrupts with programmable thermal trip points. The THERM# output operates as a thermostat with programmable threshold and hysteresis. The ALERT# output can be configured as a maskable SMBus alert with programmable window comparator limits, or as a second THERM# output. An efficient fan control system can be created since this output may be used to control a fan.
A power down mode extends battery life in portable applications.
Each part number may be configured to respond to one of four separate SMBus addresses.
