EDSA sign and HMAC operations with Common Criteria JIL High secure key storage
Overview

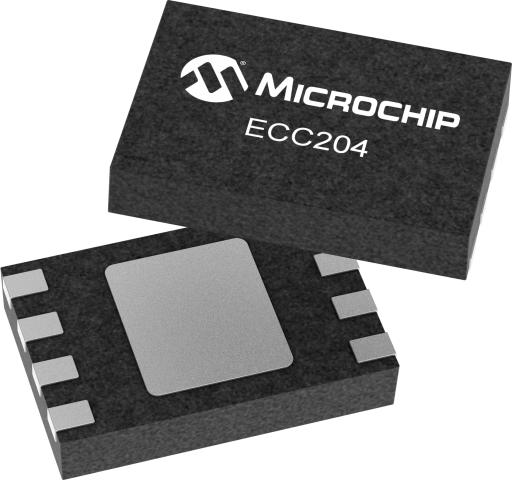

- Device Name:ECC204
- Algorithm Type:ECC256 sign, SHA256 HMAC
- Standby Typical (uA):0.13
- Provisioning:Blank
- Interface Type:I2C, SWI
- ECDSA: FIPS186-4 Elliptic Curve Digital Signature
- NIST standard P-256 elliptic curve support
- Hardware Support for SHA-256 and HMAC
- Internal Asymmetric Key Generation
- Internal High-Quality NIST SP 800-90A/B/C Random Number Generator (RNG)
- Joint Interpretation Laboratory (JIL) Score for Resistance to Attackers– level JIL High
- Evaluated to the standard “Jil-Application-Of-Attack-Potential-To-Smartcards-V3.1”
- Achieved through tamper-resistant countermeasures to resist environmental, non-invasive and invasive
- Active shield to protect against invasive attacks
- Internal memory encryption and scrambling
- Low and high supply voltage tampers
- Low and high temperature tampers
- FIPS 140-3 Compliance Mode Configuration Option
- Field-Programmable EEPROM
- Single ECC private key
- One device certificate and one CA signer certificate
- Single symmetric secret key
- 64-byte user memory
- 40-Year Data Retention at +55℃
- Monotonic Counter with the Maximum Count Value of 10,000
- Unique 72-bit Serial Number
- Two Interface Options Available
- 125 kbps Pulse-Width Modulated (PWM) single-wire serial interface (SWI)
- Parasitic power support for single-wire interface with External Capacitor
- 400 kHz Fast mode I2C interface
- 130 nA Nominal Sleep Current
- Extended Industrial Temperature of -40℃ to +105℃ Ambient Operating Range
The ECC204 is a member of the CryptoAuthentication™ product family. The device is targeted for disposable and ecosystem control applications and is intended to be used as a companion device with Microchip or other vendors’ microcontrollers. Consider implementing an ATECC608 in your host to perform the ECDSA P256 verify function of the signature your disposable or accessory would return. You could leverage that same ATECC608 for mutual authentication to an IoT cloud platform
For Qi 1.3 and Qi 2.0 wireless charging in consumer applications, refer to the ECC204 TrustFLEX WPC
For Qi 1.3 and Qi 2.0 wireless charging in Automotive applications, refer to the TA010.
Use your up or down key to switch images.
Tools And Software
Development Environment
Demo & Evaluation Boards
| Tools |
|---|
 The Trust Platform Design Suite (TPDS) is our onboarding tool for our security-related solutions. The full onboarding experience includes, but is not limited to:
Training and education about security concepts
Prototyping, including dummy key generation and code examples, available via our interactive application notes
Access to our provisioning system through a secure sub-system configurator and secure exchange process
|
| Tools |
|---|
| The CryptoAuth Trust Platform provides a compact development solution for developing IoT solutions with the ATECC608B-TNGTLS and ATECC608B-TFLXTLS and ATECC608B-MAHDA devices or the ATECC608C equivalents.
|
| The AT88CKSCKTUDFN-XPRO is an XPRO extension board that attaches 8-pin UDFN CryptoAuthentication™ devices to Microchip MCU's that support an XPRO interface. All Microchip CryptoAuthentication™ devices regardless of interface can be used with this board.
|
| The EV92R58A Development board is a mikroBUS accessory board for evaluating the ECC204. The board can readily be used with a Microchip DM320118 Trust platform host board or any MicroController board that supports a mikroBus Interface. It is recommended that this board be used with the Microchip CryptoAuthentication Library (CAL) .
|

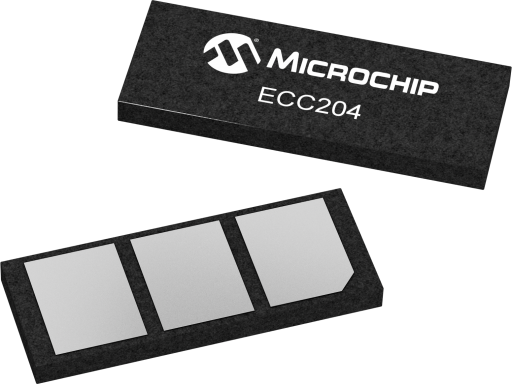

| The EV27Y72A is a 3-Lead Contact Socket Board used to support applications using the 3-Lead Contact Package. in either a powered or parasitic power mode. The socket can be used with the following devices ATECC608B, ATSHA204A, ECC204, SHA104 and TA010.
|
| The MikroElektronica Secure SOIC click board is an 8-pin SOIC socket board that works with Microchip Security Products and the TrustPlatform Development Board
|
