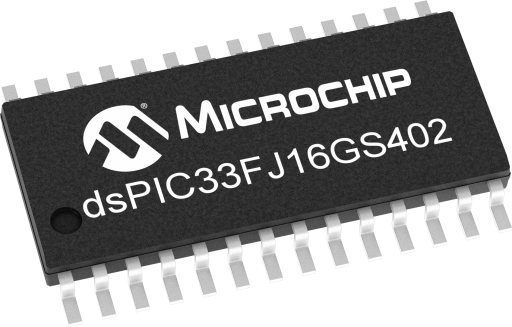

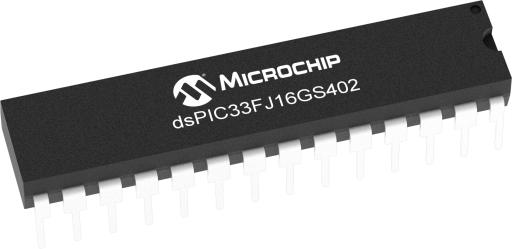

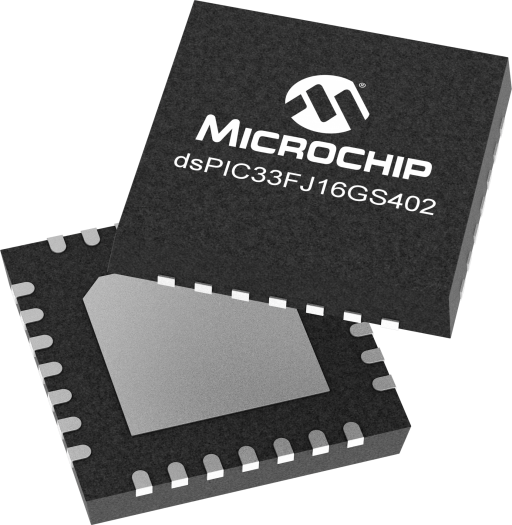

dsPIC33FJ16GS402 | Microchip Technology

Overview

Alternate products
Compare Products (3)
  • CPU Type:dsPIC® DSC
  • CPU Speed Max MHz (megahertz):50
  • Program Memory Size (KB):16
  • Multiple Flash Panels:False
  • Direct Memory Access (DMA) Channels:0
  • Temp. Range Min.(C°):-40
  • Temp. Range Max.(C°):150
  • Operation Voltage Min.(V):3
  • Operation Voltage Max.(V):3.6
  • Pin Count:28
  • Low Power:No
  • Number of Comparators:0
  • ADC Modules:1
  • ADC Channels:8
  • ADC Resolution Max:10
  • ADC Sampling Rate (ksps):2000
  • Number of DACs:0
  • DAC outputs:0
  • Max DAC Resolution (bits):0
  • Hardware RTCC:No
  • Motor Control PWM Channels:6
  • SMPS PWM Channels:6
  • Number of PWM Time Bases:4
  • Output Compare Channels:2
  • USB Interface:None
  • Number of CAN Modules:0
  • Type of CAN module Max:None
  • Crypto Engine:No
  • Quadrature Encoder Interface (QEI):0
  • Segment LCD:0
  • LCD/Graphics Interface:No
  • Configurable Logic Cell Modules (CLC /CCL):0
  • Peripheral Pin Select (PPS)/Pin Muxing:Yes
Read more
    Operating Conditions
  • 3.0V to 3.6V, -40ºC to +150ºC, DC to 20 MIPS
  • 3.0V to 3.6V, -40ºC to +125ºC, DC to 40 MIPS
  • 3.0V to 3.6V, -40ºC to +85ºC, DC to 50 MIPS
    Core: 16-Bit dsPIC33F CPU
  • Code-Efficient (C and Assembly) Architecture
  • Two 40-Bit Wide Accumulators
  • Single-Cycle (MAC/MPY) with Dual Data Fetch
  • Single-Cycle Mixed-Sign MUL plus Hardware Divide
  • 32-Bit Multiply Support
    Clock Management
  • ±2.0% Internal Oscillator
  • Programmable PLLs and Oscillator Clock Sources
  • Fail-Safe Clock Monitor (FSCM)
  • Independent Watchdog Timer (WDT)
  • Fast Wake-up and Start-up
    Power Management
  • Low-Power Management modes (Sleep, Idle, Doze)
  • Integrated Power-on Reset and Brown-out Reset
    High-Speed PWM
  • Up to Four PWM Pairs with Independent Timing
  • Dead Time for Rising and Falling Edges
  • 1.04 ns PWM Resolution
  • PWM Support for: DC/DC, AC/DC, Inverters, PFC and Lighting
  • Programmable Fault Inputs
  • Flexible Trigger Configurations for ADC Conversions
    Advanced Analog Features
  • ADC module: 10-bit resolution with up to 2 Successive Approximation Register (SAR) converters (4 Msps) and up to six Sample-and-Hold (S&H) circuits
  • Flexible and Independent ADC Trigger Sources
  • Up to Four High-Speed Comparators with Direct Connection to the PWM module
    Timers/Output Compare/Input Capture
  • Three General Purpose Timers: Three 16-bit and one 32-bit timer/counter
  • Two Output Compare (OC) modules
  • Two Input Capture (IC) modules
  • Peripheral Pin Select (PPS) to allow Function Remap
    Communication Interfaces
  • UART module (12.5 Mbps): With support for LIN/J2602 protocols and IrDA®
  • 4-Wire SPI module
  • I2C™ module (up to 1 Mbaud) with SMBus Support
  • PPS to allow Function Remap Input/Output
  • Sink/Source 18 mA on 8 Pins, 10 mA on 10 Pins and 6 mA on 17 Pins
  • 5V Tolerant Pins
  • Selectable Open-Drain and Pull-ups
  • External Interrupts on up to 30 I/O Pins
