DSPIC33FJ128GP804 | Microchip Technology

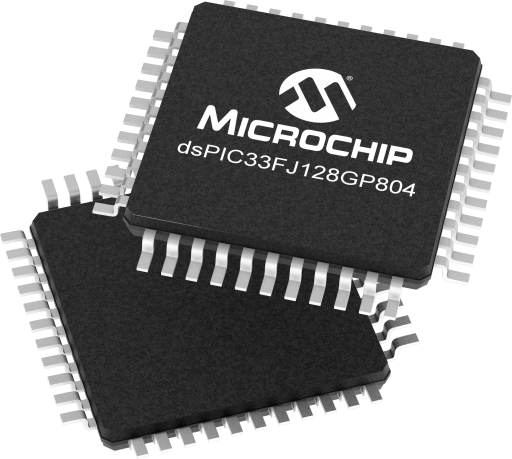

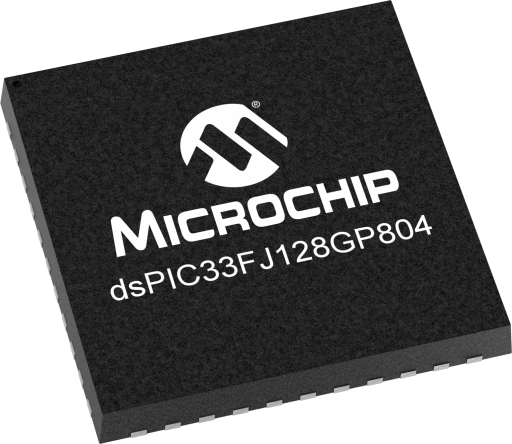

DSPIC33FJ128GP804

Status: In Production
Data Sheet:
PDF
dsPIC33FJ32GP302/304, dsPIC33FJ64GPX02/X04 and dsPIC33FJ128GPX02/X04 Data Sheet
Recommended for Automotive Design
This product is recommended for design into automotive applications. Special ordering codes for automotive grade versions apply. Click on icon for more details.
Overview Documentation Tools And Software Design Resources Similar Devices Purchase Related Videos

Overview

Alternate products
Compare Products (3)
  • CPU Type:dsPIC® DSC
  • CPU Speed Max MHz (megahertz):40
  • Program Memory Size (KB):128
  • Multiple Flash Panels:False
  • Direct Memory Access (DMA) Channels:8
  • Temp. Range Min.(C°):-40
  • Temp. Range Max.(C°):150
  • Operation Voltage Min.(V):3
  • Operation Voltage Max.(V):3.6
  • Pin Count:44
  • Low Power:No
  • Number of Comparators:2
  • ADC Modules:1
  • ADC Channels:13
  • ADC Resolution Max:12
  • ADC Sampling Rate (ksps):1100
  • Number of DACs:2
  • DAC outputs:2
  • Max DAC Resolution (bits):16
  • Hardware RTCC:No
  • Motor Control PWM Channels:0
  • SMPS PWM Channels:0
  • Number of PWM Time Bases:2
  • Output Compare Channels:4
  • USB Interface:None
  • Number of CAN Modules:1
  • Type of CAN module Max:CAN
  • Crypto Engine:No
  • Quadrature Encoder Interface (QEI):0
  • Segment LCD:0
  • LCD/Graphics Interface:No
  • Configurable Logic Cell Modules (CLC /CCL):0
  • Peripheral Pin Select (PPS)/Pin Muxing:Yes
Read more
    Operating Range
  • Up to 40 MIPS operation (at 3.0-3.6V)
  • 3.0V to 3.6V, -40ºC to +150ºC, DC to 20 MIPS
  • 3.0V to 3.6V, -40ºC to +125ºC, DC to 40 MIPS
    High-Performance dsPIC33FJ core
  • Modified Harvard architecture
  • C compiler optimized instruction set
  • 24-bit wide instructions, 16-bit wide data path
  • Linear program memory addressing up to 4M instruction words
  • Linear data memory addressing up to 64 Kbytes
  • Two 40-bit accumulators with rounding and saturation options
  • Indirect, Modulo and Bit-reversed addressing modes
  • 16 x 16 fractional/integer multiply operations
  • 32/16 and 16/16 divide operations
  • Single-cycle multiply and accumulate (MAC) with accumulator write back and dual data fetch
  • Single-cycle MUL plus hardware divide
  • Up to ±16-bit shifts for up to 40-bit data
  • On-chip Flash and SRAM
    Direct Memory Access (DMA)
  • 8-channel hardare DMA
  • Up to 2 Kbytes dual ported DMA buffer area (DMA RAM) to store data transferred via DMA
  • Most peripherals support DMA
    Timers/Capture/Compare/PWM
  • Up to five 16-bit and up to two 32-bit Timers/Counters
  • One timer runs as a Real-Time Clock with an external 32.768 kHz oscillator
  • Input Capture (up to four channels) with Capture on up, down or both edges
  • 16-bit capture input functions
  • 4-deep FIFO on each capture
  • Output Compare (up to four channels) with Single or Dual 16-bit Compare mode and 16-bit Glitchless PWM mode
  • Hardware Real-Time Clock/Calendar (RTCC)
    Interrupt Controller
  • 5-cycle latency
  • 118 interrupt vectors
  • Up to 49 available interrupt sources
  • Up to three external interrups
  • Seven programmable priority levels
  • Five processor exceptions
    Digital I/O
  • Peripheral pin Select functionality
  • Up to 35 programmable digital I/O pins
  • Wake-up/Interrupt-on-Change for up to 21 pins
  • Output pins can drive from 3.0V to 3.6V
  • Up to 5V output with open drain configuration
  • All digital input pins are 5V tolerant
  • 4 mA sink on all I/O pins
    System Management
  • Flexible clock options: External, crystal, resonator and internal RC
  • Fully integrated Phase-Locked Loop (PLL)
  • Extremely low jitter PLL
  • Power-up Timer
  • Oscillator Start-up Timer/Stabilizer
  • Watchdog Timer with its own RC oscillator
  • Fail-Safe Clock Monitor
  • Reset by multiple sources
    Power Management
  • On-chip 2.5V voltage regulator
  • Switch between clock sources in real time
  • Idle, Sleep, and Doze modes with fast wake-up
    Analog-to-Digital Converters (ADCs)
  • 10-bit, 11 Msps or 12-bit, 500 Ksps conversion
  • Two and four simultaneous samples (10-bit ADC)
  • Up to 13 input channels with auto-scanning
  • Conversion start can be manual or synchronized with one of four trigger sources
  • Conversion possible in Sleep mode
  • ±2 LSb max integral nonlinearity
  • ±1 LSb max differential nonlinearity
    Other Analog Peripherals
  • Two analog comparators with programmable input/output configuration
  • 4-bit DAC with two ranges for analog comparators
  • 16-bit dual channel 100 Ksps audio DAC
    Data Converter Interface (DCI) module
  • Codec interface
  • Supports I2S and AC.97 protocols
  • Up to 16-bit data words, up to 16 words per frame
  • 4-word deep TX and RX buffers
    Communication Modules
  • 4-wire SPI (up to two modules) with I/O interface to simple codecs
  • I2C™ with Full Multi-Master Slave mode support, slave address masking, 7-bit and 10-bit addressing, integrated signal conditioning and bus collision detection
  • UART (up to two modules) with LIN bus support, IrDA® and hardware flow control with CTS and RTS
  • Enhanced CAN (ECAN) module (1 Mbaud) with 2.0B support
  • Parallel Master Slave Port (PMP/EPSP)
  • Programmable Cyclic Redundancy Check (CRC)
    Debugger Development Support
  • In-circuit and in-application programming
  • Two program breakpoints
  • Trace and run-time watch
