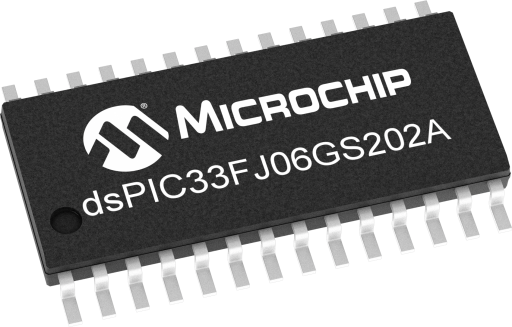

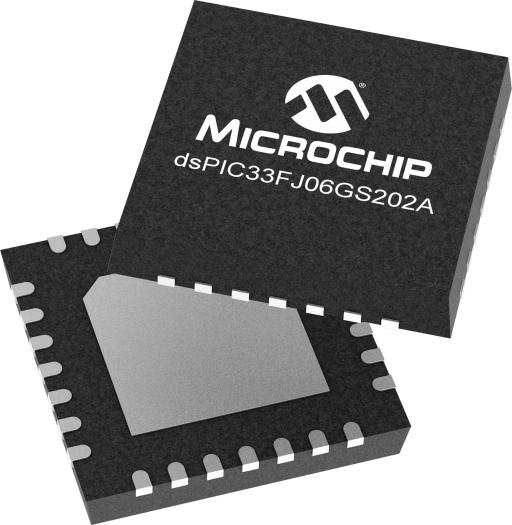

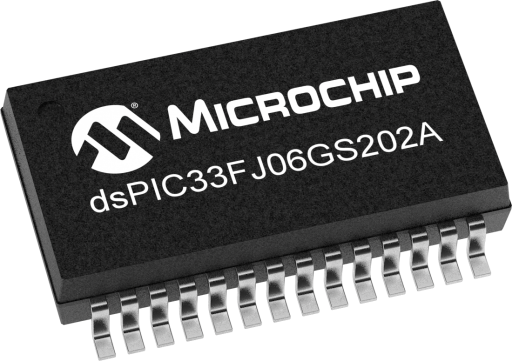

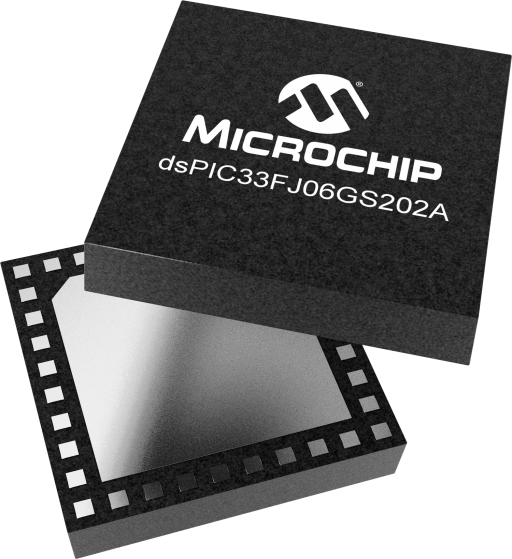

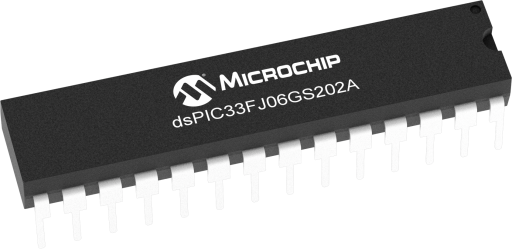

High-Speed PWM, ADC and Comparators
Overview
Alternate products
Compare Products
(3)
- CPU Type:dsPIC® DSC
- CPU Speed Max MHz (megahertz):40
- Program Memory Size (KB):6
- Multiple Flash Panels:False
- Direct Memory Access (DMA) Channels:0
- Temp. Range Min.(C°):-40
- Temp. Range Max.(C°):125
- Operation Voltage Min.(V):3
- Operation Voltage Max.(V):3.6
- Pin Count:28
- Low Power:No
- Number of Comparators:2
- ADC Modules:1
- ADC Channels:6
- ADC Resolution Max:10
- ADC Sampling Rate (ksps):2000
- Number of DACs:2
- DAC outputs:1
- Max DAC Resolution (bits):10
- Hardware RTCC:No
- Motor Control PWM Channels:4
- SMPS PWM Channels:4
- Number of PWM Time Bases:2
- Output Compare Channels:1
- USB Interface:None
- Number of CAN Modules:0
- Type of CAN module Max:None
- Crypto Engine:No
- Quadrature Encoder Interface (QEI):0
- Segment LCD:0
- LCD/Graphics Interface:No
- Configurable Logic Cell Modules (CLC /CCL):0
- Peripheral Pin Select (PPS)/Pin Muxing:Yes
- Operating Conditions
- 3.0V to 3.6V, -40ºC to +125ºC, DC to 40 MIPS
- Core: 16-Bit dsPIC33F CPU
- Code Efficient (C and Assembly) Architecture
- Two 40-Bit Wide Accumulators
- Single-Cycle (MAC/MPY) with Dual Data Fetch
- Single-Cycle Mixed-Sign MUL plus Hardware Divide
- 32-Bit Multiply Support
- Clock Management
- ±2% Internal Oscillator
- Programmable PLLs and Oscillator Clock Sources
- Fail-Safe Clock Monitor (FSCM)
- Independent Watchdog Timer (WDT)
- Fast Wake-up and Start-up
- Power Management
- Low-Power Management modes (Sleep, Idle, Doze)
- Integrated Power-on Reset and Brown-out Reset
- 2.0 mA/MHz Dynamic Current (typical)
- 135 µA IPD Current (typical)
- High-Speed PWM
- Up to Three PWM Pairs with Independent Timing
- Dead Time for Rising and Falling Edges
- 1.04 ns PWM Resolution for Dead Time, Duty Cycle, Phase and Frequency
- PWM Support for: DC/DC, AC/DC, Inverters, PFC and Lighting
- Programmable Fault Inputs
- Flexible Trigger Configurations for ADC Conversions
- Advanced Analog Features
- Two High-Speed Comparators with Direct Connection to the PWM module
- ADC module: 10-bit resolution with Successive Approximation Register (SAR) converter (2 Msps) and three Sample-and-Hold (S&H) circuits
- Up to 8 input channels grouped into four conversion pairs, plus two inputs for monitoring voltage references
- Flexible and independent ADC trigger sources
- Dedicated Result register for each analog channel
- Timers/Output Compare/Input Capture
- Two 16-Bit General Purpose Timers/Counters
- Input Capture module
- Output Compare module
- Peripheral Pin Select (PPS) to allow Function Remap
- Communication Interfaces
- UART module (10 Mbps): With support for LIN/J2602 protocols and IrDA®
- 4-Wire SPI module
- I2C™ module (up to 1 Mbaud) with SMBus Support
- PPS to allow Function Remap
These devices offer features supporting common, multi-loop digital switch-mode power supplies (SMPS) and other digital power-conversion applications such as: AC to DC Converters, DC to DC Converters, Power Factor Correction (PFC), Uninterruptible power supply (UPS), Inverters, Embedded Power-Supply Controllers, Circuit Breakers, Arc Fault Detection, Digital Lighting
