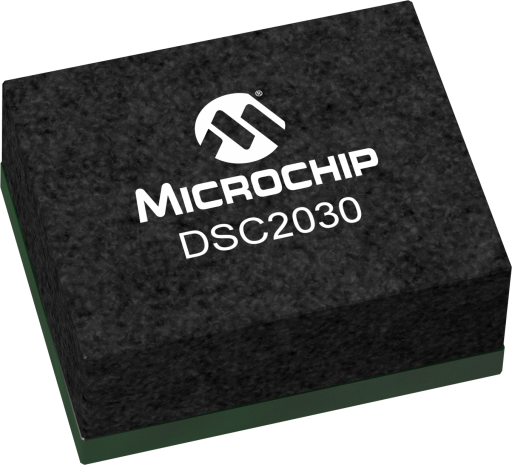

Low-Jitter Configurable LVDS Oscillator
Overview
- Input Type:Integrated MEMS
- Spread Spectrum %:
- # of Outputs:1
- Output Frequency Max. (MHz):400
- Output Frequency Min. (MHz):2.3
- OutputLogic:LVDS
- Product Type:Low-Jitter Clock Generators
- PullRange:0
- Voltage:2.5-3.3
- Low RMS Phase Jitter: <1 ps (typ.)
- High Stability: ±10, ±25, ±50 ppm
- Industrial: -40°C to 85°C
- Ext. Commercial: -20°C to 70°C
- High Supply Noise Rejection: -50dBc
- Four Pin-Selectable Output Frequencies
- Short Lead Times: 2 Weeks
- LVDS Output: 2.3 to 460MHz
- Miniature Footprint of 3.2mm x 2.5mm
- Qualified to MIL-STD-883
- 20x better MTF than quartz oscillators
- Lead Free and RoHS Compliant
- Supply Range of 2.25V to 3.6V

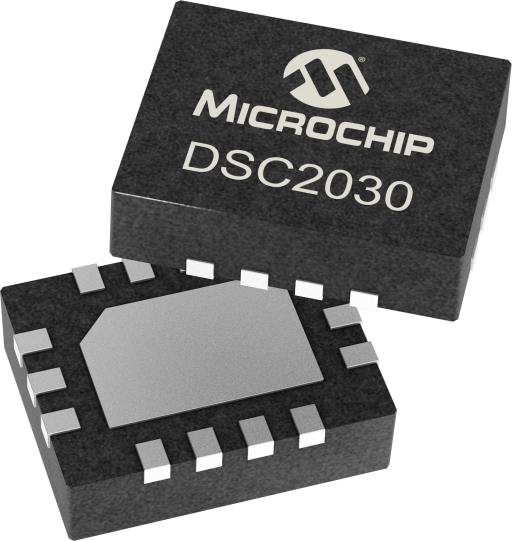

The DSC2030 series of high performance LVDS oscillators utilize a proven silicon MEMS technology to provide excellent jitter and stability while incorporating additional device functionality. The DSC2030 allows the user to easily modify the frequency of the oscillator using pins. The DSC2030 has provision for up to four user-defined preprogrammed, pin-selectable output frequencies.DSC2030 is packaged in a 14-pin 3.2mm x 2.5mm QFN package and available in temperature grades from Ext. Commercial to Automotive.
Create an application specific part and order samples with the CLOCKWORKS CONFIGURATOR tool.
