Overview

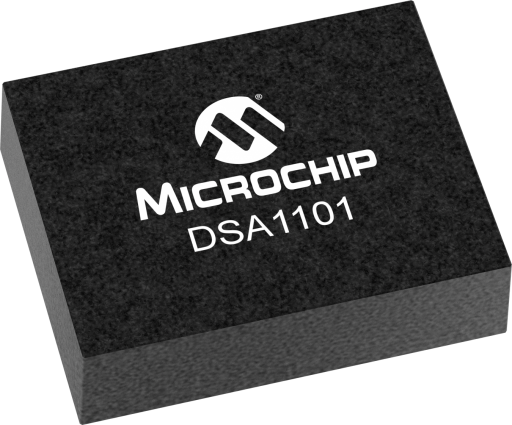

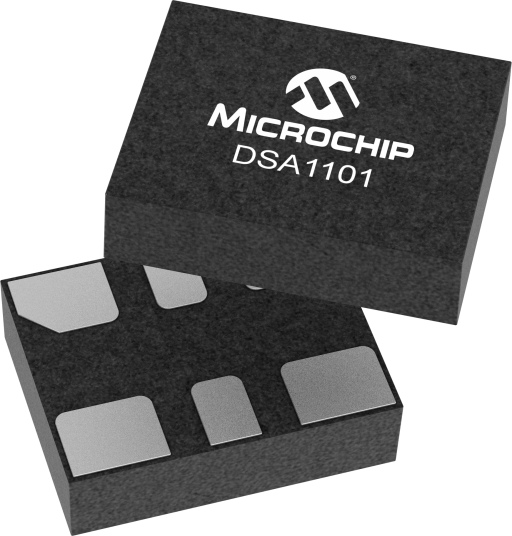

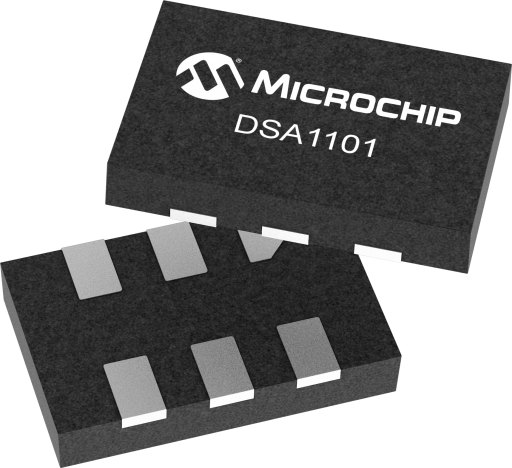

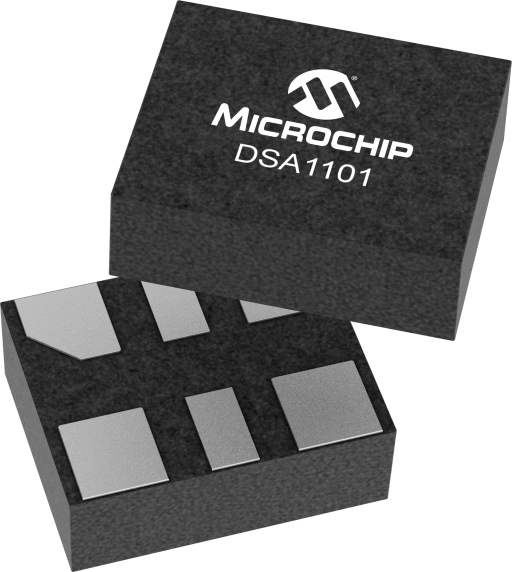

  • Dimensions:2520, 3225, 5032 6-pin
  • Supply Voltage:2.5, 3.3
  • TempRange Max °C (degrees Celsius):125
  • TempRange Min °C (degrees Celsius):-40
  • AEC-Q100 automotive qualified
  • Low RMS Phase Jitter: <1 ps (typ.)
  • High Stability: ±20 ppm, ±25 ppm, ±50 ppm
  • Automotive:Grade 1 -40°C to 125°C
  • Automotive Grade 2 : -40°C to 105°C
  • Automotive Grade 3: -40°C to 85°C
  • High Supply Noise Rejection: -50dBc
  • Wide Freq. Range: 2.3 to 170MHz
  • 2.5mm x 2.0mm, 3.2mm x 2.5mm and 5.0mm x 3.2mm
  • Qualified to MIL-STD-883
  • 20x better MTF than quartz oscillators
  • Low Current Consumption
  • Supply Range of 2.25V to 3.6V
  • Standby & Output Enable Function
  • Lead Free & RoHS Compliant
  • Short Production Lead Time: 4-6 Weeks
