Overview
Alternate products
Compare Products
(2)
- CPU Type:dsPIC® DSC
- CPU Speed Max MHz (megahertz):40
- Program Memory Size (KB):16
- Multiple Flash Panels:False
- Direct Memory Access (DMA) Channels:0
- Temp. Range Min.(C°):-40
- Temp. Range Max.(C°):125
- Operation Voltage Min.(V):3
- Operation Voltage Max.(V):3.6
- Pin Count:44
- Low Power:No
- Number of Comparators:0
- ADC Modules:1
- ADC Channels:13
- ADC Resolution Max:12
- ADC Sampling Rate (ksps):1100
- Number of DACs:0
- DAC outputs:0
- Max DAC Resolution (bits):0
- Hardware RTCC:No
- Motor Control PWM Channels:0
- SMPS PWM Channels:0
- Number of PWM Time Bases:1
- Output Compare Channels:4
- USB Interface:None
- Number of CAN Modules:0
- Type of CAN module Max:None
- Crypto Engine:No
- Quadrature Encoder Interface (QEI):0
- Segment LCD:0
- LCD/Graphics Interface:No
- Configurable Logic Cell Modules (CLC /CCL):0
- Peripheral Pin Select (PPS)/Pin Muxing:Yes
- Operating Conditions
- Up to 40 MIPS operation
- 3.0V to 3.6V, -40°C to +150°C, DC to 20 MIPS
- 3.0V to 3.6V, -40°C to +125°C, DC to 40 MIPS
- High-performance dsPIC33F core
- Code-Efficient (C and Assembly) Architecture
- Two 40-Bit Wide Accumulators
- Single-Cycle (MAC/MPY) with Dual Data Fetch
- Single-Cycle Mixed-Sign MUL plus Hardware Divide
- Clock Management
- ±0.25% Internal Oscillator
- Programmable PLLs and Oscillator Clock Sources
- Fail-Safe Clock Monitor (FSCM)
- Independent Watchdog Timer (WDT)
- Fast Wake-up and Start-up
- Power Management
- Low-Power Management modes (Sleep, Idle, Doze)
- Integrated Power-on Reset and Brown-out Reset
- 1.35 mA/MHz dynamic current (typical)
- 55 μA IPD current (typical)
- Advanced Analog Features
- ADC module: - Configurable as 10-bit, 1.1 Msps with four S/H (Sample-and-Hold) or 12-bit, 500 Ksps with one S/H
- Ten analog inputs on 28-pin devices and up to 13 analog inputs on
- 44-pin devices
- Flexible and independent ADC trigger sources
- Timers/Output Compare/Input Capture
- Three 16-bit timers/counters; can pair up two to make one 32-bit timer
- Two OC modules, configurable as timers/counters
- Four IC modules
- Peripheral Pin Select (PPS) to allow function remap
- Communication Interfaces
- One UART module (10 Mbps) - With support for LIN/J2602 protocols and IrDA®
- One 4-wire SPI module (15 Mbps)
- One I2C™ module (up to 1 Mbaud) with SM Bus support
- Input/Output
- Sink/Source up to 10 mA (pin-specific) for standard VOH/VOL, up to 16 mA (pin-specific) for non-standard VOH1
- 5V tolerant pins
- Selectable open-drain, pull-ups, and pull-downs
- Up to 5 mA overvoltage clamp current
- External interrupts on all I/O pins
- Debugger Development Support
- In-circuit and in-application programming
- Two programs and two complex data breakpoints
- IEEE 1149.2-compatible (JTAG) boundary scan
- Trace and run-time watch
•dsPIC33Fs are designed to execute digital filter algorithms
and high-speed precision digital control loops, ideal for applications that
need to perform under pressure •General
Purpose Digital Signal Controllers (DSCs) with advanced analog and seamless
migration options to PIC24F, PIC24H MCUs and dsPIC30F DSCs
Use your up or down key to switch images.
Tools And Software
Development Environment
Emulator and Debuggers
Demo & Evaluation Boards
Programmers
Library and Firmware
| Tools |
|---|
 MPLAB® X Integrated Development Environment (IDE) is an expandable, highly configurable software program that incorporates powerful tools to help you discover, configure, develop, debug and qualify embedded designs for most of Microchip’s microcontrollers, microprocessors and digital signal controllers.
|
| Available as free, unrestricted-use downloads, our award-winning MPLAB® XC C Compilers are comprehensive solutions for your project’s software development.
|
| MPLAB® Extensions for Microsoft® Visual Studio Code® (VS Code®) is a collection of VS Code extensions that combines the power of the MPLAB development ecosystem with the versatility of VS Code. Whether you are a new or existing client, MPLAB Extensions for VS Code provides you with a seamless, flexible and efficient development environment with comprehensive support for designs based on our devices.
|
| The MPLAB XC-DSC C Compiler is a full-featured, optimizing compiler that translates standard ANSI C programs into Digital Signal Controller (DSC) device assembly language sources. This compiler also supports many command-line options and language extensions that allow full access to the DSC device hardware capabilities and gives users fine control of the compiler code generator.
|
| Tools |
|---|
| The MPLAB® ICD 4 In-Circuit Debugger/Programmer is Microchip’s fastest, cost-effective debugging and programming tool for PIC® Microcontrollers (MCUs), Microprocessors (MPUs) and dsPIC® Digital Signal Controllers (DSCs).
|
| The MPLAB® Snap In-Circuit Debugger/Programmer allows affordable, fast and easy debugging and programming of PIC®, dsPIC® and AVR flash MCUs and MPUs, using the powerful graphical user interface of MPLAB X Integrated Development Environment (IDE). The MPLAB Snap can be connected to a design engineer's computer using a High-Speed USB 2.0 interface and can be connected to the target via an 8-pin Single In-Line (SIL) connector. The connector uses two device I/O pins and the reset line to implement in-circuit debugging and In-Circuit Serial Programming™ (ICSP™). It has all the speed and features entry-level users need to quickly debug their prototype.
|
| The MPLAB® PICkit™ 4 In-Circuit Debugger/Programmer allows fast and easy debugging and programming of PIC®, dsPIC® , AVR, SAM and CEC flash microcontrollers and microprocessors.
|
| The MPLAB ICE 4 in-circuit emulator system boosts productivity with feature-rich programming and debugging for PIC®, AVR® and SAM devices and dsPIC® Digital Signal Controllers (DSCs).
|
| The MPLAB® PICkit™ 5 in-circuit debugger/programmer enables quick prototyping and portable, production-ready programming for all Microchip devices, including PIC® microcontrollers (MCUs) and dsPIC® Digital Signal Controllers (DSCs), AVR® and SAM devices and Arm® Cortex®-based microprocessors (MPUs).
|
| Tools |
|---|
| The Explorer 16/32 Development Board is a low-cost modular development system for Microchip's 16-bit and 32-bit microcontrollers. It supports devices from the PIC24F, dsPIC®, and PIC32 families, with processor Plug-In Modules (PIMs) for easy device swapping. It includes a PICtail™ Plus daughter card connector for adding new functionalities.
|
| Use this PICtail™ Daughter Board to interface with our newer Development boards that offer the PICtail connector interface such as the PICDEM FS USB Development Board. This PICtail Daughter Board also interfaces with our new Explorer 16 Development Board via the new PICtail Plus connector.
|
| The Ethernet PICtail™ Plus Daughter Board provides a cost-effective method of evaluating and developing Ethernet control applications.
|
| The MPLAB Starter Kit for dsPIC Digital Signal Controllers is a complete hardware and software tool suite for exploring applications based upon Microchip’s dsPIC DSCs.
|
| Microstick II delivers a complete development hardware platform for Microchips 16-bit and 32-bit microcontrollers and digital signal controllers. |
| Tools |
|---|
| The MPLAB. PM3 Universal Device Programmer operates with a PC or as a stand-alone unit, and programs Microchips entire line of PICmicro.devices as well as the latest dsPIC30F DSC devices.
|
| The MPLAB® PICkit™ 5 in-circuit debugger/programmer enables quick prototyping and portable, production-ready programming for all Microchip devices, including PIC® microcontrollers (MCUs) and dsPIC® Digital Signal Controllers (DSCs), AVR® and SAM devices and Arm® Cortex®-based microprocessors (MPUs).
|
| The MPLAB® ICD 5 In-Circuit Debugger/Programmer offers advanced connectivity and power options for developers of designs based on PIC®, AVR® and SAM devices and dsPIC® Digital Signal Controllers (DSCs).
|
| The MPLAB ICE 4 in-circuit emulator system boosts productivity with feature-rich programming and debugging for PIC®, AVR® and SAM devices and dsPIC® Digital Signal Controllers (DSCs).
|
| The MPLAB® ICD 4 In-Circuit Debugger/Programmer is Microchip’s fastest, cost-effective debugging and programming tool for PIC® Microcontrollers (MCUs), Microprocessors (MPUs) and dsPIC® Digital Signal Controllers (DSCs).
|
["developmentenvironment","Development Environment"] ,
["emulators","Emulator and Debuggers"] ,
["demoevaluationboards","Demo & Evaluation Boards"] ,
["programmerrelations","Programmers"] ,
["thirdpartytools","3rd Party Tools"] ,
["legacy","Legacy"] ,
["softwarelibraries","Library and Firmware"]
referencedesigns,Reference Designs:
codeexamples,Code Examples:
ibisboarddesignfiles,Board Design Files:
Purchase
Loading

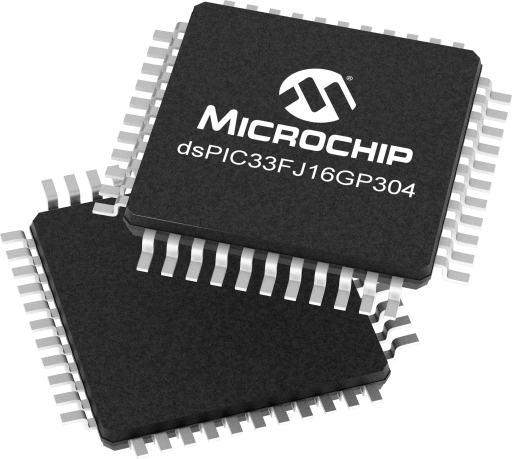

Catalog Parts for dsPIC33FJ16GP304
All parts
|
|
|
|
|
|
|
|||
|---|---|---|---|---|---|---|---|---|
|
DSPIC33FJ16GP304-E/PT
| 44 | TQFP | -40C to +125C | TRAY | $3.83 |
Available To Order
|
Please select a different part available in this familyView Samples |
|
 44-PIN, 16KB, FLASH, 2048BYTES-RAM, 40MIPS, 35I/O, 16-BIT FAMILY Country of Origin (COO):
Available To Order
Place your order today and we can ship on Standard Pricing: Buy Now Price, Any Quantity 1-24 25-99 100 + $5.28 $4.85 $4.38 Estimated Large-Quantity Pricing 1000-4999 5000 + *$4.03 *$3.83 |
||||||||
|
DSPIC33FJ16GP304-I/PT
| 44 | TQFP | -40C to +85C | TRAY | $3.49 |
In Stock Now
|
View Samples | |
|
44-PIN, 16KB, FLASH, 2048BYTES-RAM, 40MIPS, 35I/O, 16-BIT FAMILY Country of Origin (COO):
In Stock Now:
480
Order now, up to 480 estimated to ship on Lead-time stated here is a snapshot in time. Timing of order, volume and other variables will impact actual delivery. Microchip is committed to continue to keep or improve our commit dates to the best of our ability during these times of very high demand.Lead Time For Additional Quantities Additional quantities estimated to ship by Standard Pricing: Buy Now Price, Any Quantity 1-24 25-99 100 + $4.80 $4.40 $3.98 Estimated Large-Quantity Pricing 1000-4999 5000 + *$3.67 *$3.49 |
||||||||
|
DSPIC33FJ16GP304T-I/ML
| 44 | QFN | -40C to +85C | T/R | $3.65 |
Available To Order
|
Please select a different part available in this familyView Samples |
|
 44-PIN, 16KB, FLASH, 2048BYTES-RAM, 40MIPS, 35I/O, 16-BIT FAMILY Country of Origin (COO):
Available To Order
Place your order today and we can ship on Standard Pricing: Buy Now Price, Any Quantity 1-24 25-99 100 + $5.03 $4.60 $4.16 Estimated Large-Quantity Pricing 1000-4999 5000 + *$3.83 *$3.65 |
||||||||
|
DSPIC33FJ16GP304T-E/ML
| 44 | QFN | -40C to +125C | T/R | $4.33 |
Available To Order
|
Please select a different part available in this familyView Samples |
|
|
44-PIN, 16KB, FLASH, 2048BYTES-RAM, 40MIPS, 35I/O, 16-BIT FAMILY Country of Origin (COO):
Available To Order
Place your order today and we can ship on Standard Pricing: Buy Now Price, Any Quantity 1-24 25-99 100 + $5.19 $5.06 $4.93 Estimated Large-Quantity Pricing 1000-4999 5000 + *$4.56 *$4.33 |
||||||||
|
DSPIC33FJ16GP304-I/ML
| 44 | QFN | -40C to +85C | TUBE | $3.60 |
Available To Order
|
View Samples | |
|
44-PIN, 16KB, FLASH, 2048BYTES-RAM, 40MIPS, 35I/O, 16-BIT FAMILY Country of Origin (COO):
Available To Order
Place your order today and we can ship on Standard Pricing: Buy Now Price, Any Quantity 1-24 25-99 100 + $4.94 $4.55 $4.11 Estimated Large-Quantity Pricing 1000-4999 5000 + *$3.78 *$3.60 |
||||||||
