Overview
- ADC Resolution b (bits):12
- Number of Comparators:2
- Data EEPROM (bytes):512
- Data Signal Modulator (DSM):0
- MVIO Pins:0
- Numerically Controlled Oscillator (NCO):1
- Operation Voltage Max.(V):5.5
- Operation Voltage Min.(V):1.8
- RAM B (byte):2048
- Program Memory Size (KB):32
- Low Power:Yes
- ADC Channels:12
- Pincount:14
- Stand alone PWM:4
- Zero Cross Detect:0
- Functional Safety
- Appliances safety - IEC 60730 (Class B)
- Industrial safety – IEC 61508 (SIL
- Automotive safety – ISO 26262 (ASIL)
- High-Performance AVR RISC CPU with Hardware Multiplier
- Running at up to 20 MHz
- Flash with true Read-While-Write (RWW) operation
- Single Cycle I/O Access
- Two-level Interrupt Controller
- Sleep modes: Idle, Standby, Power-down
- 6 channels Event System
- Configurable Custom Logic (CCL)
- Single pin programming and debugging interface (UPDI)
- Analog Features
- 12-bit Diff ADC with Programmable Gain Amplifier (PGA)
- 2x Analog Comparator with internal DAC reference
- Timer/Counters
- 2x 16-bit Timer/Counter type B (TCB)
- 1x 16-bit Timer/Counter type E (TCE) with WEX
- 1x 24-bit Timer/Counter F for Frequency Generation
- 1x 16-bit Real Time Counter (RTC) with Periodic Interrupt Controller (PIT)
- Built-in Safety Functions:
- Power-On Reset (POR)
- Brown-Out-Detection (BOD)
- Voltage Level Monitor (VLM)
- Clock Failure Detection (CFD)
- Cyclic Redundancy Check (CRC) Scan
- Window Watchdog Timer (WWDT)
- Communication
- Serial communication interfaces: 3x USART, SPI, I2C

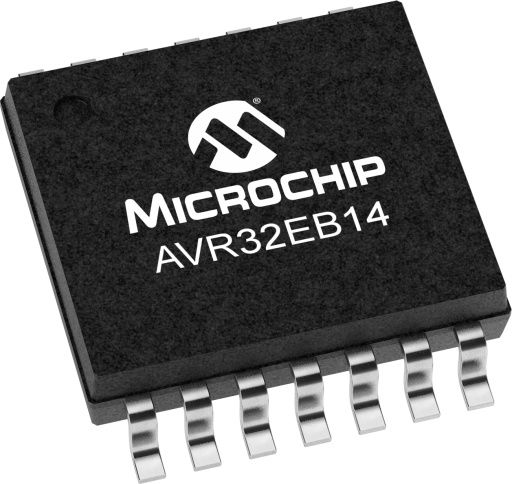

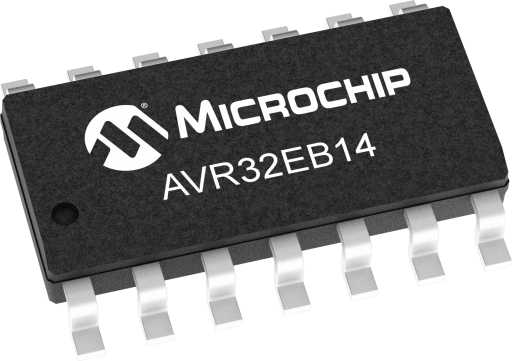

The AVR32EB14 is a microcontroller in the AVR® EB family featuring the AVR® CPU with hardware multiplier, running at up to 20 MHz and with 32 KB Flash with dedicated Read-While-Write (RWW) section, 3 KB SRAM, and 512B of EEPROM available in 14-pin SOIC and TSSOP packages. The family uses the latest Core Independent Peripherals with low-power features including Event System, intelligent analog and advanced peripherals.
The new 12-bit ADC offers true differential measuring capabilities with optional hardware accumulation of up to 1024 samples, which effectively gives up to 17-bits resolution. With sampling rates up to 300 ksps the analog data is available very rapidly. The Programmable Gain Amplifier (PGA) for the ADC can amplify single-ended and differential analog inputs to make it possible to measure even small amplitude signals efficiently. AVR32EB14 introduces a 24-bit Timer/Counter F (TCF) for high resolution frequency generation and a Timer/Counter E (TCE) with Waveform Extension (WEX) for up to 4 channel PWM power control applications.
Functional Safety
This product is suitable for safety-critical applications that target home appliances (IEC 60730), automotive (ISO 26262) and industrial (IEC 61508) products. We have important documentation and tools available to aid developers of safety applications—refer to the product feature list for links to the specific safety collateral. TÜV SÜD-certified MPLAB® X Integrated Development Environment (IDE) tools, such as the MPLAB XC8 Functional Safety Compiler, are also available for this product.
Use your up or down key to switch images.
Tools And Software
Development Environment
Emulator and Debuggers
Demo & Evaluation Boards
Programmers
3rd Party Tools
| Tools |
|---|
 MPLAB® X Integrated Development Environment (IDE) is an expandable, highly configurable software program that incorporates powerful tools to help you discover, configure, develop, debug and qualify embedded designs for most of Microchip’s microcontrollers, microprocessors and digital signal controllers.
|
| Available as free, unrestricted-use downloads, our award-winning MPLAB® XC C Compilers are comprehensive solutions for your project’s software development.
|
| MPLAB Code Configurator supports 8-bit, 16-bit and 32-bit PIC® microcontrollers. MCC is incorporated into both the downloadable MPLAB X Integrated Development Environment (IDE) and the cloud-based MPLAB Xpress IDE.
|
| Tools |
|---|
| Atmel-ICE is a powerful development tool for debugging and programming ARM® Cortex®-M based SAM and AVR microcontrollers with on-chip debug capability.
|
| Take your next idea to market with a development board that you can keep in your pocket. With full programming and debugging capabilities, the AVR16EB32 Curiosity Nano Evaluation Kit offers complete support for your next design.
With the award-winning MPLAB X integrated development platform and MPLAB Code Configurator (MCC), the kit provides access to the Intelligent analog and Core Independent Peripherals on the AVR16EB32. MCC is a free, graphical programming tool to configure the rich set of peripherals and functions specific for your application.
|
| Power Debugger is a powerful development tool for debugging and programming AVR and ARM® Cortex®-M based SAM microcontrollers. In addition the Power Debugger features two independent current sensing channels and includes a CDC virtual COM port interface as well as Data Gateway Interface channels for streaming application data to the host computer from a SPI, USART, TWI or GPIO source.
|
| The MPLAB® PICkit™ 4 In-Circuit Debugger/Programmer allows fast and easy debugging and programming of PIC®, dsPIC® , AVR, SAM and CEC flash microcontrollers and microprocessors.
|
| The MPLAB® ICD 4 In-Circuit Debugger/Programmer is Microchip’s fastest, cost-effective debugging and programming tool for PIC® Microcontrollers (MCUs), Microprocessors (MPUs) and dsPIC® Digital Signal Controllers (DSCs).
|
| Tools |
|---|
| Take your next idea to market with a development board that you can keep in your pocket. With full programming and debugging capabilities, the AVR16EB32 Curiosity Nano Evaluation Kit offers complete support for your next design.
With the award-winning MPLAB X integrated development platform and MPLAB Code Configurator (MCC), the kit provides access to the Intelligent analog and Core Independent Peripherals on the AVR16EB32. MCC is a free, graphical programming tool to configure the rich set of peripherals and functions specific for your application.
|
| The Multi-Phase Power Board is a driver board designed for 3-phase BLDC motors with or without Hall sensors. The board supports up to 4 individual phases making it well suited for stepper motors as well.
The Multi-Phase Power Board is fully supported by MCC Melody and MPLAB and software drivers for sinusoidal and trapezoidal BLDC with and without Hall Sensors are available for select microcontrollers.
The Multi-Phases Power Board needs a Curiosity Nano development board and an adapter board.
A full solution for the AVR16EB32 requires the following three development kits:
AVR16EB32 Curiosity Nano
AVR16EB32-CNANO MPPB-Adapter
Multi-Phase Power Board
|
| The EV88N31A is an adapter board that allow an easy connection between the AVR16EB32 Curiority Nano and the Multi-Phase Power Board.
A full solution for the AVR16EB32 requires the following three development kits:
AVR16EB32 Curiosity Nano
AVR16EB32-CNANO MPPB-Adapter
Multi-Phase Power Board
|
| Tools |
|---|
| Atmel-ICE is a powerful development tool for debugging and programming ARM® Cortex®-M based SAM and AVR microcontrollers with on-chip debug capability.
|
| Take your next idea to market with a development board that you can keep in your pocket. With full programming and debugging capabilities, the AVR16EB32 Curiosity Nano Evaluation Kit offers complete support for your next design.
With the award-winning MPLAB X integrated development platform and MPLAB Code Configurator (MCC), the kit provides access to the Intelligent analog and Core Independent Peripherals on the AVR16EB32. MCC is a free, graphical programming tool to configure the rich set of peripherals and functions specific for your application.
|
| Power Debugger is a powerful development tool for debugging and programming AVR and ARM® Cortex®-M based SAM microcontrollers. In addition the Power Debugger features two independent current sensing channels and includes a CDC virtual COM port interface as well as Data Gateway Interface channels for streaming application data to the host computer from a SPI, USART, TWI or GPIO source.
|
| The MPLAB® PICkit™ 4 In-Circuit Debugger/Programmer allows fast and easy debugging and programming of PIC®, dsPIC® , AVR, SAM and CEC flash microcontrollers and microprocessors.
|
| The MPLAB® ICD 4 In-Circuit Debugger/Programmer is Microchip’s fastest, cost-effective debugging and programming tool for PIC® Microcontrollers (MCUs), Microprocessors (MPUs) and dsPIC® Digital Signal Controllers (DSCs).
|
