Overview
- CPU:Cortex-M0+
- I2C:4
- CPU Speed Max MHz (megahertz):32
- Operation Voltage Max.(V):3.63
- Operation Voltage Min.(V):1.62
- Internal Oscillator:32Khz ULP, 16Mhz
- Part Family:SAML22
- QSPI:0
- RAM (KB):32
- Segmented LCD (# of segments):320
- U(S)ART:6 -UART
- Program Memory Size (KB):256
- Pincount:100
- Crypto Engine:Yes
- TempRange Min:-40
- TempRange Max:85
- ARM Cortex-M0+ CPU running at up to 32 MHz
- 256KB in-system self-programmable Flash
- 8KB Flash Read-While-Write section
- 32KB SRAM Main Memory
- Operating voltage: 1.62V – 3.63V
- Segment LCD (SLCD) controller
- Ultra Low Power Architecture consuming 39µA/MHz
- Idle, Standby, Backup, and Off sleep modes
- Battery backup support
- Two Performance Levels
- Embedded Buck/LDO regulator supporting on-the-fly selection
- Peripheral Touch Controller (PTC)
- Wake-up on touch in standby mode
- Two-pin Serial Wire Debug (SWD) programming, test and debugging interface
- Temperature Range - 40°C to 85°C
- 16-channel Direct Memory Access Controller (DMAC)
- 8-channel Event System
- 16-bit Timer/Counters (TC)
- One 24-bit Timer/Counters for Control (TCC)
- Frequency Meter
- 8x32-bit Backup Register
- Tamper Detection
- Watchdog Timer (WDT)
- CRC-32 generator
- One full-speed (12Mbps) Universal Serial Bus (USB) 2.0 Device
- ISO7816, USART, I2C, SPI
- One AES Encryption Engine & TRNG
- One Configurable Custom Logic (CCL)
- One 12-bit, 1MSPS Analog-to-Digital Converter (ADC)
- Two Analog Comparators (AC) with window compare function

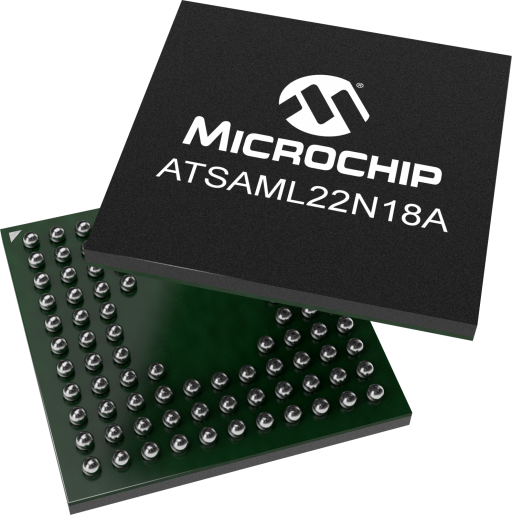

The ultra-low-power ATSAML22 based Flash microcontrollers (MCU) feature sophisticated power management technologies and consumes 39 µA/MHz (CPU running CoreMark) in active mode and down to 490nA in ultra low-power backup mode with RTC. In addition to ultra-low-power performance, these devices feature Segment LCD controller, tamper detection, smart card interface, Full Speed USB device, Event System and Sleepwalking, 12-bit analog, AES, capacitive touch sensing and much more.
Supported by MPLAB X IDE and MPLAB Harmony.
Use your up or down key to switch images.
Tools And Software
Development Environment
Emulator and Debuggers
Demo & Evaluation Boards
Programmers
3rd Party Tools
| Tools |
|---|
 MPLAB® X Integrated Development Environment (IDE) is an expandable, highly configurable software program that incorporates powerful tools to help you discover, configure, develop, debug and qualify embedded designs for most of Microchip’s microcontrollers, microprocessors and digital signal controllers.
|
| When combined with our free and award-winning MPLAB X Integrated Development Environment (IDE), the fully graphical frontend provides:
Editing errors and breakpoints that match corresponding lines in the source code
Single stepping through C and C++ (C++ only available in MPLAB XC32++ compilers) source code to inspect variables and structures at critical points
Data structures with defined data types, including floating point, display in watch windows
|
| MPLAB Code Configurator supports 8-bit, 16-bit and 32-bit PIC® microcontrollers. MCC is incorporated into both the downloadable MPLAB X Integrated Development Environment (IDE) and the cloud-based MPLAB Xpress IDE.
|
| MPLAB® Harmony is a modular framework that provides interoperable firmware libraries for application development on 32-bit microcontrollers and microprocessors.
|
| MPLAB® Extensions for Microsoft® Visual Studio Code® (VS Code®) is a collection of VS Code extensions that combines the power of the MPLAB development ecosystem with the versatility of VS Code. Whether you are a new or existing client, MPLAB Extensions for VS Code provides you with a seamless, flexible and efficient development environment with comprehensive support for designs based on our devices.
|
| Tools |
|---|
| Atmel-ICE is a powerful development tool for debugging and programming ARM® Cortex®-M based SAM and AVR microcontrollers with on-chip debug capability.
|
| Power Debugger is a powerful development tool for debugging and programming AVR and ARM® Cortex®-M based SAM microcontrollers. In addition the Power Debugger features two independent current sensing channels and includes a CDC virtual COM port interface as well as Data Gateway Interface channels for streaming application data to the host computer from a SPI, USART, TWI or GPIO source.
|
| The MPLAB® ICD 4 In-Circuit Debugger/Programmer is Microchip’s fastest, cost-effective debugging and programming tool for PIC® Microcontrollers (MCUs), Microprocessors (MPUs) and dsPIC® Digital Signal Controllers (DSCs).
|
| J-32 Debug Probe is a JTAG/ICSP Debugger that supports all of Microchip's 32-bit MCU and MPU products.
|
| The MPLAB® Snap In-Circuit Debugger/Programmer allows affordable, fast and easy debugging and programming of PIC®, dsPIC® and AVR flash MCUs and MPUs, using the powerful graphical user interface of MPLAB X Integrated Development Environment (IDE). The MPLAB Snap can be connected to a design engineer's computer using a High-Speed USB 2.0 interface and can be connected to the target via an 8-pin Single In-Line (SIL) connector. The connector uses two device I/O pins and the reset line to implement in-circuit debugging and In-Circuit Serial Programming™ (ICSP™). It has all the speed and features entry-level users need to quickly debug their prototype.
|
| Tools |
|---|
| The SAM L22 Xplained Pro evaluation kit is the ideal for evaluating the ultra-low power SAM L22 ARM® Cortex®-M0+ microcontroller with a Touch Segment LCD.
|
| SLCD1 Xplained Pro is an extension kit with a 96-segment LCD display compatible with Xplained Pro evaluation kits with the segment LCD extension header. |
| The ?? SmartCard Xplained Pro is intended for use along with the SAM L22 Xplained Pro to demonstrate and prototype Smart Card applications, leveraging the ISO7816 module on the SAM L22 chip. |
| I/O1 Xplained Pro provides a light sensor, temperature sensor, and microSD card for use with Xplained Pro Evaluation Kits. |
| QT2 Xplained Pro is a QTouch Surface extension board for Xplained Pro evaluation kits that demonstrates the Peripheral Touch Controller (PTC) as a high performance touch-surface controller. |
| Tools |
|---|
| Atmel-ICE is a powerful development tool for debugging and programming ARM® Cortex®-M based SAM and AVR microcontrollers with on-chip debug capability.
|
| Power Debugger is a powerful development tool for debugging and programming AVR and ARM® Cortex®-M based SAM microcontrollers. In addition the Power Debugger features two independent current sensing channels and includes a CDC virtual COM port interface as well as Data Gateway Interface channels for streaming application data to the host computer from a SPI, USART, TWI or GPIO source.
|
| The MPLAB® ICD 4 In-Circuit Debugger/Programmer is Microchip’s fastest, cost-effective debugging and programming tool for PIC® Microcontrollers (MCUs), Microprocessors (MPUs) and dsPIC® Digital Signal Controllers (DSCs).
|
| J-32 Debug Probe is a JTAG/ICSP Debugger that supports all of Microchip's 32-bit MCU and MPU products.
|
| The MPLAB® PICkit™ 4 In-Circuit Debugger/Programmer allows fast and easy debugging and programming of PIC®, dsPIC® , AVR, SAM and CEC flash microcontrollers and microprocessors.
|
