Overview
- Part Family:SAMDA1
- CPU Type:Cortex-M0+
- MaxSpeed (MHz):48
- Program Memory Size (KB):32
- SRAM (KB):4
- Temp. Range Min.:-40
- Temp. Range Max.:105
- Operation Voltage Min.(V):2.7
- Operation Voltage Max.(V):3.63
- SPI:4
- I2C:4
- UART:4
- QSPI:0
- Crypto Engine:No
- Internal Oscillator:32khz, 32Khz ULP, 8Mhz
- Pin Count:32
- ARM Cortex-M0+ CPU running at up to 48MHz
- Single-cycle hardware multiplier
- Micro trace buffer
- 32KB in-system self-programmable Flash
- 1KB Read-While-Write (RWW) Flash section
- 4KB SRAM memory
- Power-on reset (POR) and brown-out detection (BOD)
- Internal and external clock options with 48MHdigital frequency locked loop (DFLL48M) and 48MHto 96MHz
- fractional digital phase locked loop (FDPLL96M)
- External interrupt controller (EIC)
- 16 external interrupts
- One non-maskable interrupt
- Two-pin serial wire debug (SWD) programming, test and debugging interface
- Idle and standby sleep modes
- SleepWalking peripherals
- 8-channel direct memory access controller (DMAC)
- 12-channel event system
- One 16-bit TC with compare/capture channels
- One 8-bit TC with compare/capture channels
- One 32-bit TC with compare/capture channels, by using two TCs
- Up to four compare channels with optional complementary output
- Generation of synchronized pulse width modulation (PWM) pattern across port pins
- Deterministic fault protection, fast decay and configurable dead-time between complementary output
- Dithering for enhancing resolution with up to 5-bit and reduce quantization error
- 32-bit real time counter (RTC) with clock/calendar function
- Watchdog timer (WDT)
- CRC-32 generator
- Device 2.0 and reduced-host low speed and full speed
- Flexible end-point configuration and management with dedicated DMA channels
- On-chip transceivers including pull-ups and serial resistors
- Crystal-less operation in device mode
- USART with full-duplex and single-wire half-duplex configuration
- I2C up to 3.4MHz
- SPI
- LIN Client
- One two-channel inter-IC sound (I2S) interface
- Differential and single-ended input
- 1/2x to 16x programmable gain stage
- Automatic offset and gain error compensation
- Oversampling and decimation in hardware to support 13-, 14-, 15- or 16-bit resolution
- 10-bit, 350ksps digital-to-analog converter (DAC)
- Two analog comparators (AC) with window compare function
- Up to 256-channel capacitive touch and proximity sensing
- 26 GPIO pins
- 32-pin TQFP, QFN
- 2.7V to 3.63V
- –40 to +105°C

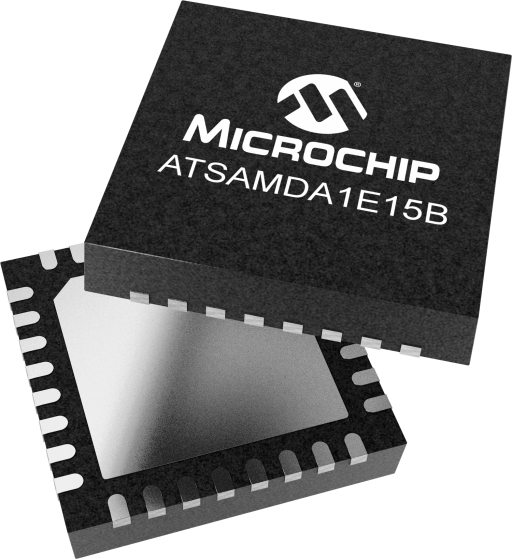

The SAM DA1 ARM® Cortex®-M0+ -based microcontrollers are operating at 48MHz (45DMIPS). The ATSAMDA1E15B provides 32KB Flash, 4kB SRAM and 1KB RWW Flash. The peripheral set for connectivity consists of 4 serial communication modules (SERCOM) that each can be configured to act as a USART, UART, SPI and I2C. Additional connectivity options are provided by the on-chip one channel Inter-IC sound interface (I2S) and the full-speed USB 2.0 embedded host and device.
Supported by MPLAB X IDE and MPLAB Harmony.
Functional Safety
This device supports the ISO 26262 (ASIL B) functional safety standard.
· The Functional Safety Manual, FMEDA and information on the Diagnostic Software are available under NDA through the request form on the 32-bit Microcontrollers Functional Safety web page.
· Learn more about 32-bit MCUs with Functional Safety capabilities including device hardware and certified software libraries.
