Overview
- Timers:0
- Temp# Range Min (deg C):-40
- Temp# Range Max (deg C):85
- Operating Voltage Min (Vcc):3
- Operating Voltage Max (Vcc):3.6
- PWM Channels:0
- Energy Metering Analog Front-End:7 channels
- Anti-Tampering Inputs:0
- Temp Coefficient Type (ppm/degC):6
- Reactive Energy Accy (%):0.2
- Active Meas# Accy (%):0
- Active Energy Accy (%):0.1
- Flash (kBytes):0
- ADC Resolution (bits):16
- Max I/O Pins:0
- UART:0
- SRAM (kBytes):0
- Meter Type:Three-Phase
- ADC Channels:7
- Dynamic Range:6000:1
- Poly-phase solutions up to class 0.2 accuracy.
- 6000:1 dynamic range improves performance and reduces OEM''s overall cost of manufacturing and bill of materials.
- Compliant with IEC62052-11, IEC62053-22/23, ANSI C12.1, C12.20.
- Lowest temperature drift in the industry for this type of device.

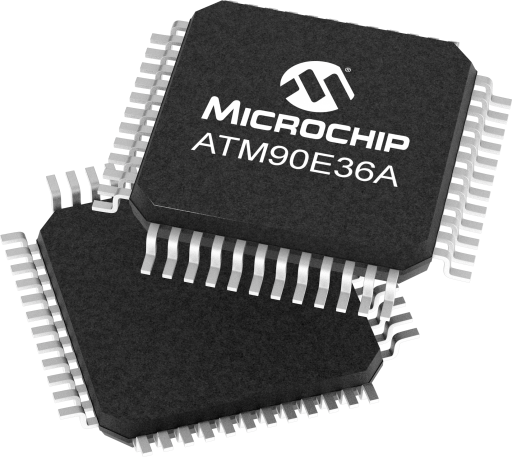

The ATM90E36A is a high-performance energy metering device for three-phase four-wire (3P4W, Y0) or three-phase three-wire (3P3W, Y or Δ) systems. It is also applicable in Data Acquisition Terminal. With the measurement and Fourier analysis functions, the ATM90E36A can also be used in power monitoring instruments which need to measure voltage, current, THD, DFT, mean power, etc.
Use your up or down key to switch images.
Tools And Software
Demo & Evaluation Boards
| Tools |
|---|
 ATM90E26 Single-Phase Energy Metering Demo Board is used for the demo and testing of ATM90E26, which can sample single-phase voltage and current, meter active/reactive energy and output active/reactive energy pulses accordingly, as well as measure parameters such as voltage, current and power.
|
| ATM90E32AS Poly-Phase Energy Metering Demo is used for the demo and testing of ATM90E32AS (poly-phase energy metering AFE chip), which can sample poly-phase voltage and current, meter active/reactive/apparent/fundamental/harmonic energy and output these energy pulses accordingly, as well as measure parameters such as voltage, current and power.
|
| ATM90E36A Poly-Phase Energy Metering Demo is used for the demo and testing of ATM90E36A (poly-phase energy metering AFE chip), which can sample poly-phase voltage and current, meter active/reactive/apparent/fundamental/harmonic energy and output these energy pulses accordingly, as well as measure parameters such as voltage, current and power.
|
| The ATSAM4C32-EK lets designers quickly evaluate and develop code for smart energy applications built around two high performance 32-bit ARM® Cortex® -M4 RISC processors.
|
| The ATSAM4CMP32-DB demonstration board uses ATSAM4CMP32C to demonstrate the high accuracy poly-phase energy metering functions.
|
