Overview
- Program Memory Size (KB):4
- RAM:0
- Data EEPROM (bytes):0
- Pin Count:44
- Operation Voltage Max.(V):4
- Operation Voltage Min.(V):2.7
- ADC Resolution Max:0
- ADC Channels:0
- Zero Cross Detect:False
- Number of Comparators:0
- SPI:0
- I2C:0
- Stand alone PWM:0
- Low Power:No
- Numerically Controlled Oscillator (NCO):0
- Data Signal Modulator (DSM):0

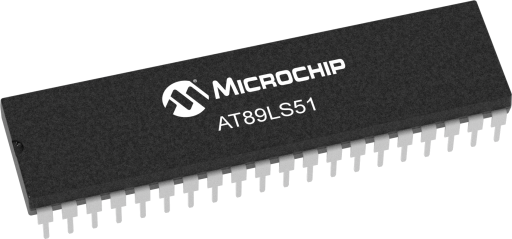

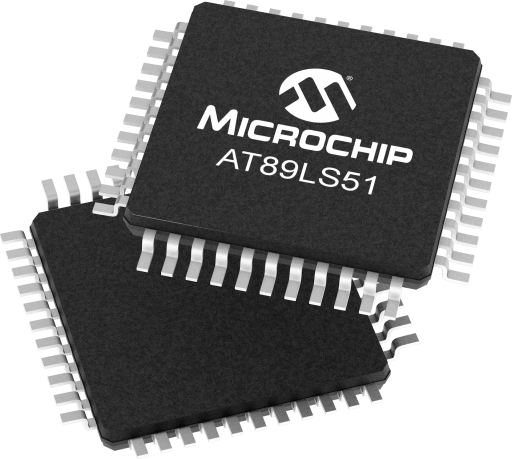

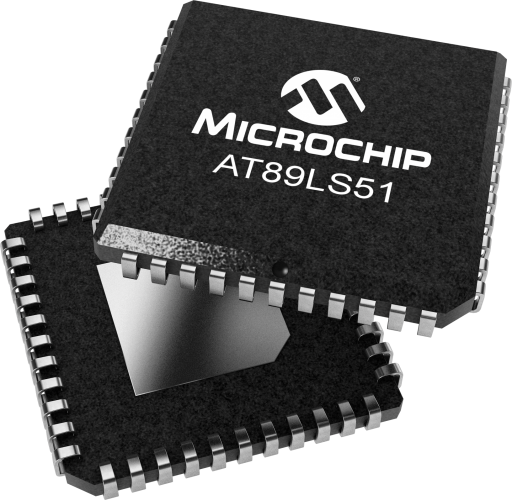

Low-voltage, high-performance CMOS 8-bit microcontroller with 4KB of ISP flash memory. The device uses Microchip high-density, nonvolatile memory technology and is compatible with the industry-standard 80C51 instruction set and pinout. On-chip flash allows the program memory to be reprogrammed in-system or by a conventional nonvolatile memory programmer.
This is a powerful microcontroller suitable for many embedded control applications.
