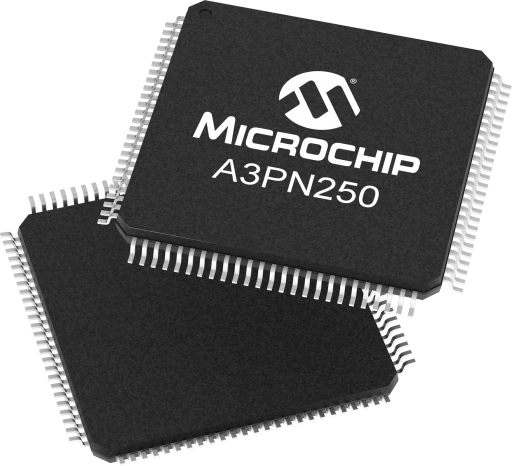

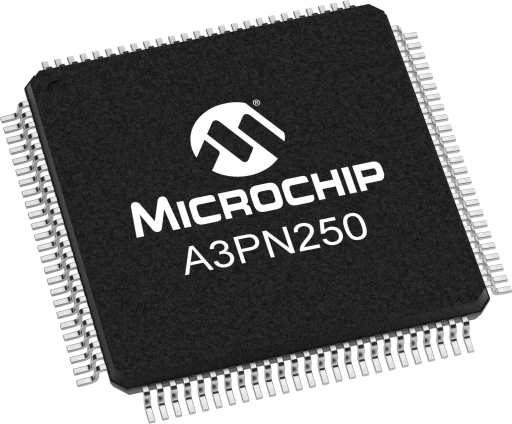

Ultra Low Density FPGAs
Overview
- Analog:No
- Data Security:No
- FPGA I/O Max:No
- Total RAM Kbit (kilobit):36
- Fabric ROM Kbit (kilobit):1
- Fabric uPROM Kbit (kilobit):No
- LogicElements(K):3
- Max. MSS I/O (3.3V) Max:No
- Math Blocks 18x18:No
- PCIe Lanes:No
- Product Type:ProASIC3 nano
- Temp Max °C (degrees Celsius):100
- Temp Min °C (degrees Celsius):-40
- eNVM(KB) KB (kilobyte):No
- eSRAM(KB) KB (kilobyte):No
- 3K logic elements
- 36Kb RAM
- 1Kb FlashROM
- 1PLL in CCC
- Temperature - Commercial, Industrial
The
ProASIC3 nano family increases the breadth of the ProASIC3 product line by
offering smaller densities and packages with enhanced features of the
ProASIC3 family. ProASIC3 nano devices offer the advantage of being a secure,
low-power, single-chip solution that is Instant On.
Key Features
• Low TOC (total cost of ownership)
• System performance of 350 MHz
• 1.5V Core voltage support
• Proven Security
• Protection from Overbuilding and Cloning
• Exceptional Reliability
Key Features
• Low TOC (total cost of ownership)
• System performance of 350 MHz
• 1.5V Core voltage support
• Proven Security
• Protection from Overbuilding and Cloning
• Exceptional Reliability
Use your up or down key to switch images.
Tools And Software
Development Environment
Emulator and Debuggers
Programmers
| Tools |
|---|
 Our comprehensive, easy-to-learn and easy-to-adopt development tools allow you to design with our power-efficient FPGAs.
|
| Tools |
|---|
| FlashPro5 offers high performance through USB 2.0 that supports Serial Peripheral Interconnect (SPI) and JTAG interfaces.
|
| Silicon Sculptor 4 CE-compliant production device programmer works alongside Silicon Sculptor adapter modules to program the FPGA devices. It concurrently programs large FPGA parts without performance degradation.
|
