XIFM

Name: XIFM
Brand: Microchip Technology
SKU: 35506
Availability: InStock

Status: In Production

Augmented Switching™ LINPAK / HV100 Intelligent Isolated Plug-and-Play mSiC™ Gate Driver

Data Sheet:

PDF | HTML

XIFM Intelligent Plug-and-Play 3.3 kV Gate Driver Data Sheet

Overview Documentation Tools And Software Design Resources Similar Devices Purchase Related Videos

Overview

Driver Type:Plug-and-Play Gate Drivers
Usable Device Voltage(V):3300
Output Channels:2
Peak Gate Current:15
Gate Output Power W (watt):10
Primary to Secondary Isolation Voltage Max V (volt):10200
Short-Circuit Response Time:
Temperature Feedback:Yes
Integrated DC-DC Converter:Yes
Short-Circuit Protection:Yes
Configurable Parameters:Turn On/Turn Off
Software Configurable:Yes

Supports 3.3 kV HV100/LinPak SiC modules

10.2 kV Primary to Secondary Isolation

Augmented switching – Configurable Turn-On and Turn-Off

Monitoring function : Isolated Temperature, DC Link monitoring,

Advanced protection feature : UVLO, OVLO, Desat, Negative Temperature coefficient (NTC)

2 X 10W output power

15A peak source/ sink current

Configurable Gate Output Voltages

Soft Shut Down (SSD) time and voltage level

Qualified to below standards:

Railway standard EN50155

EMC Compliant to EN 50121-3-2, EN 61000-6-4

Shock and Vibration to EN 61373

Fire hazard level HL2

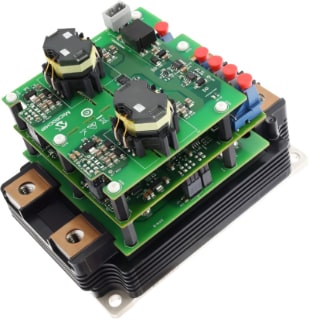

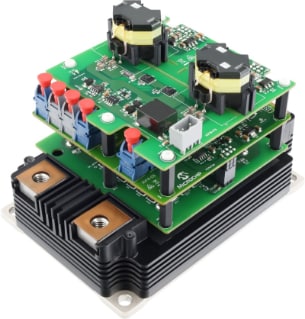

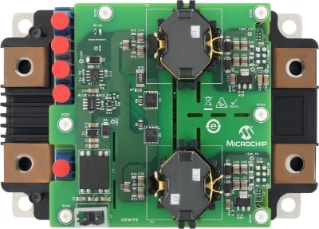

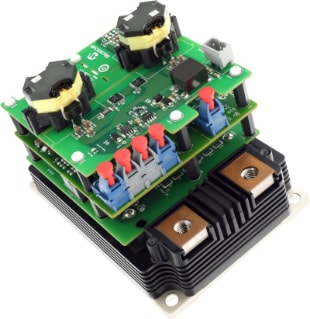

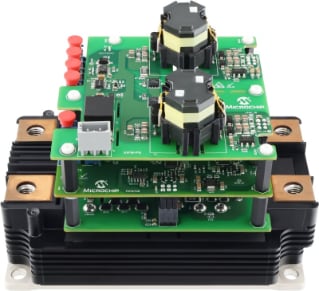

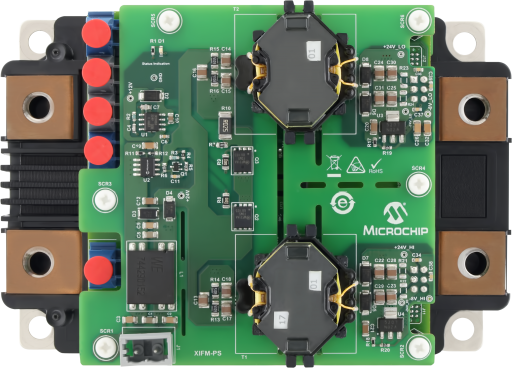

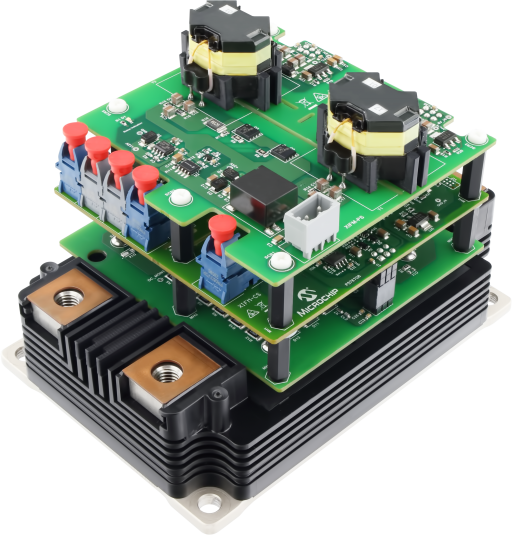

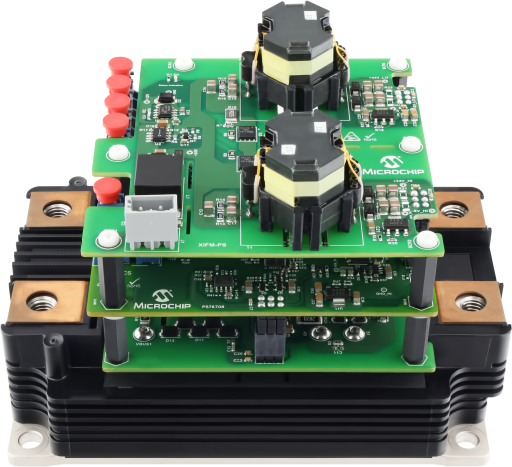

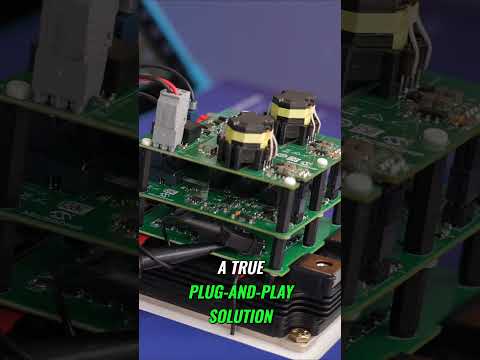

XIFM is an intelligent isolated Plug-and-Play mSiC™ Gate Driver designed to drive 3.3kV SiC modules in High-Voltage (HV) packages such as HV LinPak / HV100. The driver includes gate drive control, power supply, fiber optic interface and high voltage isolation (10.2 kV).

Applications

It features Augmented Switching™ to monitor the fault report and to improve control of SiC MOSFET-based power systems.

Rail Traction (Auxiliary & Propulsion systems)
Battery charging systems
Smart Grid / Grid-tied distribution generation
Uninterruptible power supply (UPS) systems
Industrial Motor drives
Heavy duty Equipment
Medium voltage chargers / Fast chargers

Key driver parameters can be modified with the optional Programming Kit and Intelligent Configuration Software.

We offer fast-to-market solutions to meet the demands of you and your customers, covering adaptation to full customization services. Schedule a call with our team about gate driver customization.
