52 Port 80G L2/L3 Switch
Overview
Alternate products
Compare Products
(3)
- Copper Support:No
- DownstreamPorts:52
- Port Speed:10/100/1000/2500Mbps 10Gbps
- Fiber Support:100FX 1000X SFI
- IEEE 1588:Yes
- InterfaceUpStream:SGMII QSGMII XFI XAUI RXAUI
- LinkMDCableDiag:No
- Managed:Yes
- OpVoltage:1
- Static MAC Address:32768
- Supply Voltages:1
- Temp Range Min (°C):-40
- Temp Range Max (°C):110 (Junction)
- Digital I/O Voltage: 1.0/1.2/2.5/3.3
- WakeonLAN:No

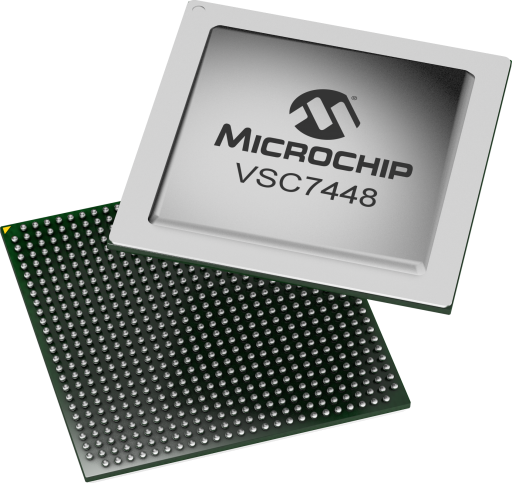

The VSC7448 SparX-IV-80 device is an 80G SMB/SME Industrial Ethernet switch with up to 52 ports supporting a combination of 1G, 2.5G, and 10G Ethernet ports. The device provides a rich set of Enterprise Ethernet switching features. Using multistage Versatile Content Aware Processing (VCAP), it delivers VLAN and QoS processing that enables delivery of differentiated services, security through intelligent frame processing, and egress frame manipulation.
Supported Ethernet Software Options
Microchip's complimentary and confidential MicroCHECK design review service, which offers insight from the initial concept to the final PCB layout, is available to customers who are using our products in their projects. You can confidently submit your design materials in a secure and private setting, and our expert engineers will provide individualized feedback to enhance your design. MicroCHECK design review service is subject to Microchip's Program Terms and Conditions and requires a myMicrochip account.
Use your up or down key to switch images.
Tools And Software
Demo & Evaluation Boards
Library and Firmware
| Tools |
|---|
 Evaluation board for the VSC7442,44,48,49 SparX-IV Ethernet Switches
|
| Jaguar-2 (VSC7464/68), SparX-IV (VSC7442/44/48) – Ethernet Development System
|
