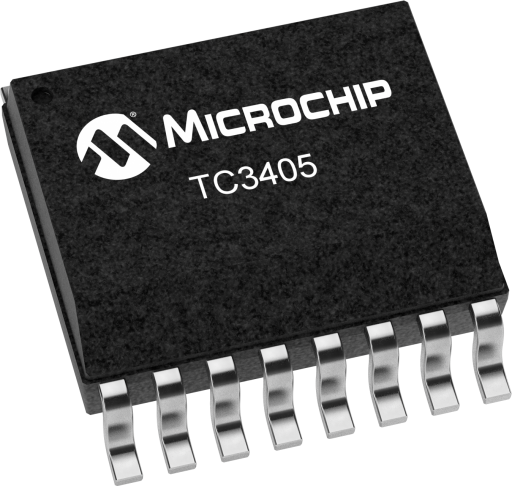

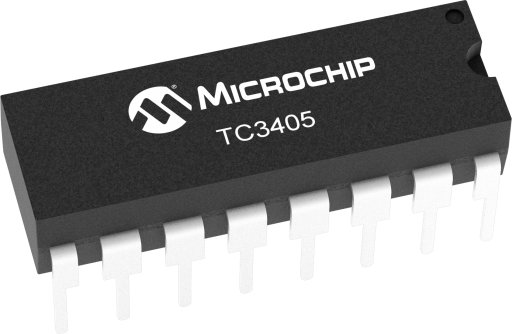

The TC3405 is a low cost, low power analog-to-digital converter based on Microchip’s Sigma-Delta technology. It performs 16-bit conversions (15-bit plus sign) at up to eight per second.Thedeviceis optimizedforuseas microcontroller peripherals in low cost, battery operated systems. A voltage reference is included, or an external reference can be used. A VDD monitor with reset generator provides Power-On Reset and Brown-out protection. The TC3405’s 2-wire MicroPort™ digital interface is used for starting conversions and for reading out the data. Driving the SCLK line low starts a conversion. After the conversion starts, each additional falling edge (up to six) detected on SCLK for t4 seconds reduces the A/D resolution by one bit and cuts conversion time in half. After a conversion is completed, clocking the SCLK line puts the MSB through LSB of the resulting data word onto the SDAT line, much like a shift register. The parts automatically sleep when not performing a data conversion. The TC3405 is available in PDIP and QSOP packages.
