1GHz ARM Cortex-A7 SIP with Advanced Graphics Features and 2Gb integrated DDR3L
Overview
- CPU:Cortex-A7
- CPU Speed Max MHz (megahertz):1000
- L2 Cache:256
- ARM Neon:Yes
- FPU:Yes
- RAM KB (kilobyte):128
- Internal DRAM MB (megabyte):256
- Int. DRAM Type:DDR3L
- NAND Interface:Yes
- Graphic LCD Interface:MIPI-DSI, LVDS, RGB
- Graphics Controller/GPU:2D GPU
- Octal SPI:yes
- QSPI:2
- U(S)ART:11
- SPI:11
- I2C:11
- I3C:yes
- I2S:2
- 10/100/1000 Ethernet MAC:2
- Ethernet TSN Support:yes
- USB Interface:1 HS Host, 2 HS Host/Device
- USB Type C support:yes
- CAN:5
- Type of CAN module:CAN-FD
- SDIO/SD-CARD/eMMC:3
- ADC Channels:16
- ADC Resolution b (bits):12
- Crypto Engine:Yes
- Secure Bootloader:Yes
- ARM Trust Zone:Yes
- External Memory Encryption/Descryption:Yes
- Integrity Check Monitor (ICM):Yes
- Anti-Tampering Inputs:4
- Environmental Monitors:Yes
- Secure Key Storage (bits):11 KByte OTP
- TempRange Min:-40
- TempRange Max:105
- I/O Pins Max:142
- Pincount:427
- Packages:TFBGA
- Direct Memory Access (DMA) Channels:72
- Secure Arm Cortex-A7 based MPU with advanced graphic features running up to 1GHz
- 256KB L2 cache
- 128 KBytes SRAM + 5 KBytes Secure SRAM
- 256 MBytes / 2Gbit integrated 533MHz DDR3L
- Audio Sub-System
- I2S, PDM, SPDIF (Rx/Tx), 4 stereo channel ASRC
- HMI Features
- LCD controller with a 2D GPU supporting resolution up to WXGA/720p
- MIPI DSI-4 (4-lane), LVDS and 8-bit Serial RGB interface
- Large number of connectivity options
- Dual Gbit Ethernet MAC supporting TSN/AVB
- Three HS USB Phy, 5x CAN-FD, 3x SD/eMMC
- One I3C controller interface
- Fully-Integrated Security Features
- ARM TrustZone
- Secure Boot w/ HW Cryptography (AES/TEDS/SHA/RSA/ECC)
- FIPS compliant TRNG plus 11 kB OTP for key storage
- On-the-fly encryption/decryption from external memories
- TFBGA427 18mm x 21mm, 0.80 mm pitch
- Optimized BGA ball-out facilitates 4-layer PCB designs
- Optimized Power Management IC and Integrated LDOs
- Voltage and frequency scaling support

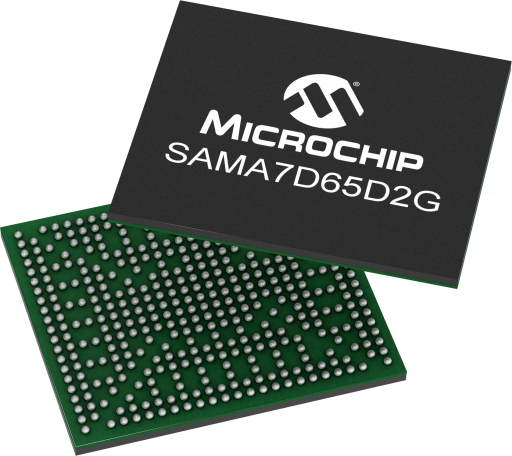

The SAMA7D65D2G is a SIP (System in Package) device embedding a high-performance Arm® Cortex®-A7 CPU Microprocessor (MPU) and integrating a 2Gb DDR3L.
It is targeting HMI and connectivity applications in the home/building, industrial, appliance & transportation markets.
The SAMA7D6 Series is delivered with a comprehensive development suite that includes a mainline Linux® distribution and the Microchip MPLAB® X/Harmony software framework.
The device offers support for multiple memories, such as octal/quad SPI, and e.MMC Flash. It integrates various display interfaces, including MIPI DSI®, LVDS and 8-bit Serial RGB.
The SAMA7D65D2G features connectivity such as a dual 10/100/1000 Ethernet MAC, an I3C controller, five CAN-FD and three high-speed USB interfaces. It also embeds advanced security functions, such as PUF, secure boot, secure key storage and high-performance crypto accelerators for AES, SHA, RSA and ECC.
Microchip provides an optimized power management solution for the SAMA7D65D2G. The MCP16502 has been fully tested and optimized to provide the best power vs. performance for the SAMA7D65D2G.
