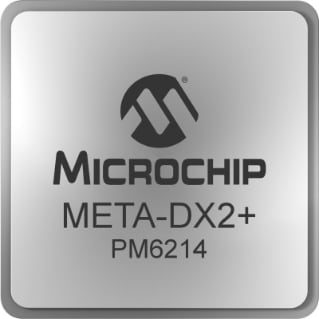

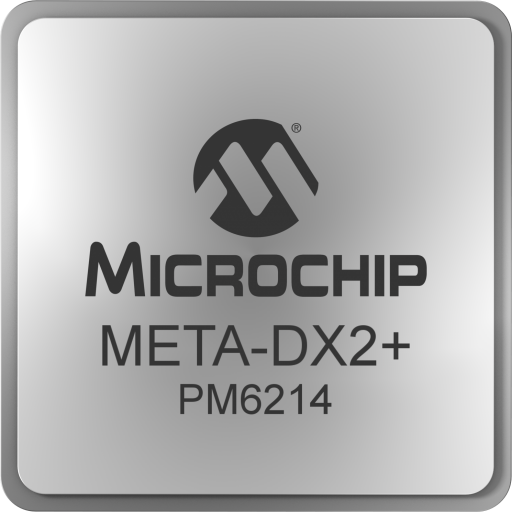

META-DX2+ Ethernet PHY (featuring OTN support)
Overview
- MACsec:No
- Max Gearbox Bandwidth (Gbps):1600
- RoHS:Yes
- XpandIO:No
- Crosspoint:Yes
- Gearbox:Yes
- max_bandwidth:1600
- Max Ethernet Port Rate:800GbE
- max_serdes:112
- Retimer:Yes
- 1.6T gearbox and retimer configurations
- 1.6T hitless 2:1 mux for working/protect architectures
- Dual 800G ETC (Ethernet Technology Consortium), Quad 400 GbE and 16x 1/10/25/40/50/100 GbE MAC/PHYs
- Highly configurable crosspoint with ShiftIO, supporting multi-rate services on any port
- Supports Ethernet, OTN, Fibre Channel, and proprietary data rates for AI/ML applications
- Lambda Splitting support for splitting of 400 GbE and 800 GbE clients across multiple wavelengths
- PTP (IEEE 1588v2) support up to Class C/D
- 48 Long Reach (LR) capable 112G PAM4 SerDes
- Direct connectivity to passive copper cables including support for link training and auto-negotiation
- Industrial temperature range support, enabling deployments in outdoor environments
- Software Development Kit (SDK) that is common across the entire META-DX2 family, including all META-DX2+ and META-DX2L devices
- Support for Open Compute Project (OCP) based Switch Abstraction Interface (SAI) APIs

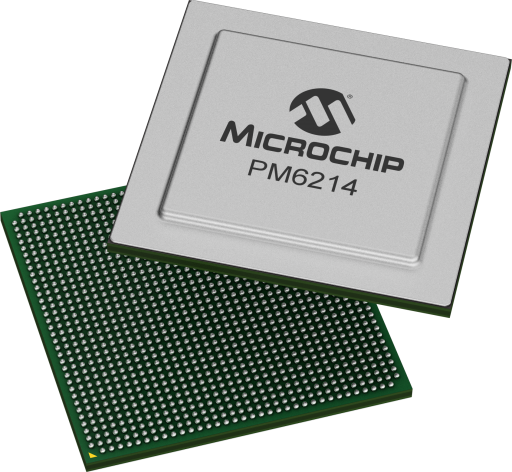

- 33 mm × 33 mm device package
The META-DX2+ family of devices are multi-purpose 1.6T Ethernet MAC/PHYs supporting rates from 1 GbE to 800 GbE and 112G PAM4 long reach SerDes. These versatile devices support encryption, port aggregation, Class C/D PTP and hitless 2:1 multiplexing, as well as SerDes crosspoint functionality that enables connectivity to a variety of optical modules, Direct Attach Copper (DAC) cables, packet processors and Ethernet switches. Encryption is a key feature of META-DX2+, providing security via MACsec or IPsec at full line rate. MACsec encrypts Ethernet traffic at the frame level and supports "VLAN tag in the clear", enabling multi-hop routing of encrypted packets. IPsec encrypts IP packets which ensures security across wide-area networks. By providing encryption within META-DX2+, packet processors can offload the task of encryption to META-DX2+, enabling systems to scale up to larger bandwidths while providing end-to-end security. Lambda Splitting feature enables splitting of 400GbE and 800GbE clients across multiple wavelengths. The META-DX2+ family offers variants with 48 SerDes, enabling 1.6T gearbox or hitless 2:1 mux configurations, which is double the capacity of other solutions and cuts the device count in half to enable smaller form factors. The META-DX2+ 32 SerDes variants are pin compatible with the META-DX2L device, enabling META-DX2L designs to easily add encryption, port aggregation, or MAC layer services such as PTP, all within a single Software Development Kit (SDK).
Variants available:
- PM6200 META-DX2L: Retimer and gearbox (32 SerDes)
- PM6210 META-DX2+: PHY with encryption and XpandIO (32 SerDes)
- PM6214 META-DX2+: PHY with OTN rates (48 SerDes)
- PM6216 META-DX2+: PHY with encryption (32 SerDes)
- PM6218 META-DX2+: PHY with encryption (48 SerDes)
Applications
- High-density Ethernet line cards
- Cloud data centers, service providers and enterprise routers and switches
- High-availability working/protect switches requiring hitless mux
- Compact modular optical transponders and muxponders
- AI/ML acceleration nodes
