PFX 28xG4 Gen 4 Fanout PCIe Switch
Overview
- Lanes:28
- Ports:16
- NTBs:14
- Hot Plug Controllers:16
- Power Dissipation:0
- Bandwidth:0
- Product Name1:PFX 28xG4
- Generation:Gen 4
- DMA Controller
- High-performance, ultra-low latency DMA engine
- Error Containment
- Advanced error reporting (AER) on all ports
- Downstream port containment (DPC) on all downstream ports
- Completion timeout synthesis (CTS) to prevent an error state in an upstream host due to incomplete non-posted transactions
- Hot- and surprise-plug controllers per port
- GPIOs configurable for different cable/connector standards
- PCIe Interfaces
- Passive, managed, and optical cables
- SFF-8644, SFF-8643, SFF-8639, OCuLink and other connectors
- Diagnostics and Debug
- Real-time eye capture
- External loopback
- Errors, statistics, and performance counters
- Peripheral I/O Interfaces
- Up to 11 Two-Wire Interfaces (TWIs) with SMBus support
- Up to 4 SFF-8485-compliant SGPIO ports
- Up to 4 UARTs
- JTAG and EJTAG interface
- High-Speed I/O
- PCIe Gen 4 16 GT/s
- Supports OCuLink cabling, CEM ×16 slots, and other interfaces
- Manual PHY configuration for optical
- Power Management
- Active State Power Management (ASPM)
- Software-controlled power management
- ChipLink Diagnostic Tools
- Extensive debug, diagnostics, configuration, and analysis tools with an intuitive GUI
- Access to configuration data, management capabilities, and signal integrity analysis tools (such as real-time eye capture)
- Evaluation Kit
- The PM42100-KIT Switchtec Gen 4 PCIe switch evaluation kit is a device evaluation environment that supports multiple interfaces
- *x1 natively on four lanes

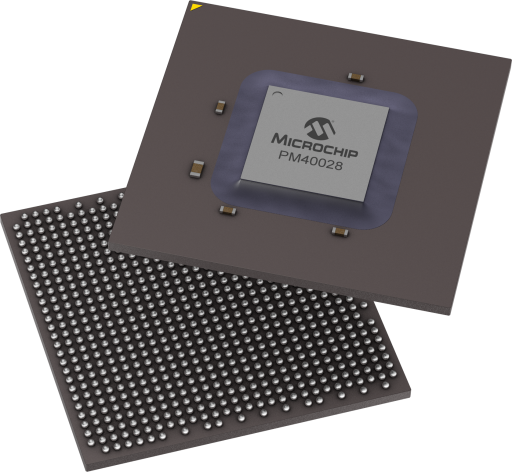

The Switchtec Gen 4 PM40028 PFX Fanout PCIe switch is a high-reliability, high-performance switch with significant power, cost, and board space supporting 28 lanes, 16 ports, and hot- and surprise-plug controllers for each port. PFX switches feature advanced error containment, comprehensive diagnostics and debug capabilities, end-to-end data integrity protection, high-quality, low-power SERDES and secure boot image authentication.
Unigen MAHOGANY offers an LLC evaluation board supplementing our Microchip HLC eval board for customers needing an LLC device only
Typical applications for the PFX family include data center equipment, defense and industrial servers, workstations, test equipment, video production and broadcasting equipment, cellular infrastructure, access networks, metro networks and core networking.
