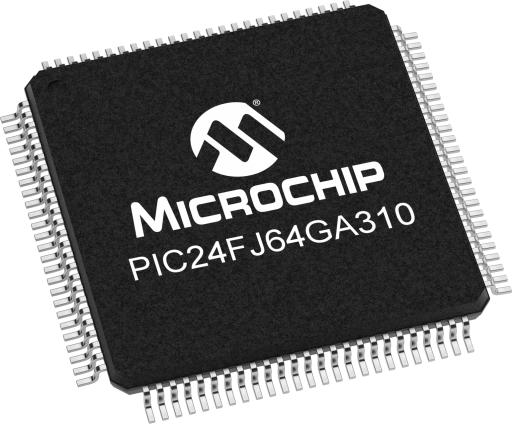

Low Power MCU w/ Integrated Analog, LCD
Overview
- CPU Type:16-bit PIC MCU
- CPU Speed Max MHz (megahertz):16
- Program Memory Size (KB):64
- Multiple Flash Panels:False
- Direct Memory Access (DMA) Channels:6
- Temp. Range Min.(C°):-40
- Temp. Range Max.(C°):85
- Operation Voltage Min.(V):2
- Operation Voltage Max.(V):3.6
- Pin Count:100
- Low Power:Yes
- Number of Comparators:3
- ADC Modules:1
- ADC Channels:24
- ADC Resolution Max:12
- ADC Sampling Rate (ksps):500
- Number of DACs:0
- DAC outputs:0
- Max DAC Resolution (bits):0
- Hardware RTCC:Yes
- Motor Control PWM Channels:0
- SMPS PWM Channels:0
- Number of PWM Time Bases:7
- Output Compare Channels:7
- USB Interface:None
- Number of CAN Modules:0
- Type of CAN module Max:None
- Crypto Engine:No
- Quadrature Encoder Interface (QEI):0
- Segment LCD:480
- LCD/Graphics Interface:No
- Configurable Logic Cell Modules (CLC /CCL):0
- Peripheral Pin Select (PPS)/Pin Muxing:Yes
- Supported in MPLAB Code Configurator:Yes
- Low Power nanoWatt XLP
- 10 nA Deep Sleep mode
- 400 nA RTCC in Vbat mode
- 330 nA Low Voltage Sleep mode (RAM retention)
- 400 nA Real Time Clock & Calendar operation in Sleep modes
- 270 nA Watch Dog Timer operation in Deep Sleep modes
- 150 uA/MHz Run mode
- Power Modes: Run, Doze, Idle, Sleep, Low Voltage Sleep, Deep Sleep, Vbat
- Multiple, Switchable Clock Modes for Optimum Performance and Power Management
- System Supervisors: Low Power BOR, WDT, INT0 and RTCC
- CPU
- Up to 16 MIPS performance
- Single Cycle Instruction Execution
- 16 x 16 Hardware Multiply, & 32-bit x 16-bit Hardware Divider
- C Compiler Optimized Instruction Set System
- Peripherals
- Up to 480 segment LCD Driver with 60 segment x 8 common drive
- 10/12-bit Differential ADC, 24 channels, 200/500 Ksps with Threshold Detect
- Peripheral Pin Select allows I/O remapping of many peripherals in real time
- Charge Time Measurement Unit (CTMU) enabling 24 channels of Capacitive Touch
- Three Analog rail-to-rail comparators Peripherals
- Hardware RTCC, Real-Time Clock Calendar with Alarms
- System
- Internal oscillators support - 31 kHz to 8 MHz, up to 32 MHz with 4X PLL
- Fail-Safe Clock Monitor - allows safe shutdown if clock fails
- Watchdog Timer with separate RC oscillator
- System Supervisors: Low Power BOR, WDT, INT0 and RTCC
- JTAG Boundary Scan
PIC24F 16-bit Microcontroller featuring nanoWatt XLP for eXtreme Low Power consumption. The device includes advanced low power features including a Low Voltage Sleep mode that maintains the device state and RAM with a typical current of 340 nA, and a Vbat pin that automatically transitions the RTCC to a battery supply when Vdd is removed. The family includes a 480 segment LCD Driver with 60 segment x 8 common drive capability. The combination of feature make the part ideally suited to a number of battery powered and general purpose applications.
