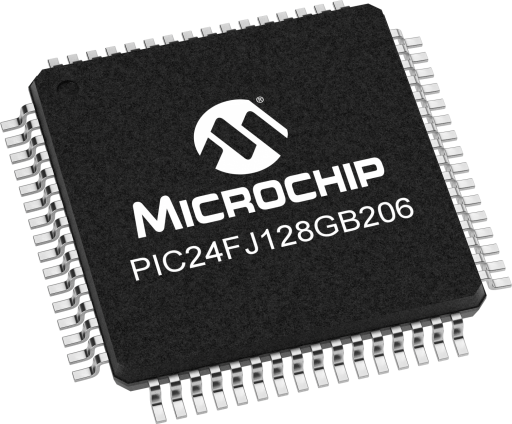

MCU with Large RAM & USB
Overview
- CPU Type:16-bit PIC MCU
- CPU Speed Max MHz (megahertz):16
- Program Memory Size (KB):128
- Multiple Flash Panels:False
- Direct Memory Access (DMA) Channels:0
- Temp. Range Min.(C°):-40
- Temp. Range Max.(C°):85
- Operation Voltage Min.(V):2.2
- Operation Voltage Max.(V):3.6
- Pin Count:64
- Low Power:No
- Number of Comparators:3
- ADC Modules:1
- ADC Channels:16
- ADC Resolution Max:10
- ADC Sampling Rate (ksps):500
- Number of DACs:0
- DAC outputs:0
- Max DAC Resolution (bits):0
- Hardware RTCC:No
- Motor Control PWM Channels:0
- SMPS PWM Channels:0
- Number of PWM Time Bases:9
- Output Compare Channels:9
- USB Interface:FS Device/Host/OTG
- Number of CAN Modules:0
- Type of CAN module Max:None
- Crypto Engine:No
- Quadrature Encoder Interface (QEI):0
- Segment LCD:0
- LCD/Graphics Interface:No
- Configurable Logic Cell Modules (CLC /CCL):0
- Peripheral Pin Select (PPS)/Pin Muxing:Yes
- Supported in MPLAB Code Configurator:Yes
- Universal Serial Bus Features
- USB v2.0 On-the-Go compliant
- Dual role capable, can act as either Host or Device
- Low speed(1.5Mb/s) and full speed(12 Mb/s) operation in host mode
- Full speed USB operation in Device mode
- Analog Features
- Up to 24x, Capacitive touch sensing
- Up to 24x, 10-Bit, ADC at 500 ksps
- 3x Analog Comparators with Programmable Input/Output Configuration
- Power Management
- On-Chip Voltage Regulator of 1.8V
- Switch between Clock Sources in Real Time
- Idle, Sleep and Doze modes with Fast Wake-up and Two-Speed Start-up
- Run Mode: 800 uA/MIPS, 3.3V Typical
- Sleep mode Current Down to 20 uA, 3.3V Typical
- Standby Current with 32 kHz Oscillator: 22 uA, 3.3V Typical
Ideal for USB related applications that can benefit from the 16-bit MCU, USB, 96K byte RAM, and other peripherals.
