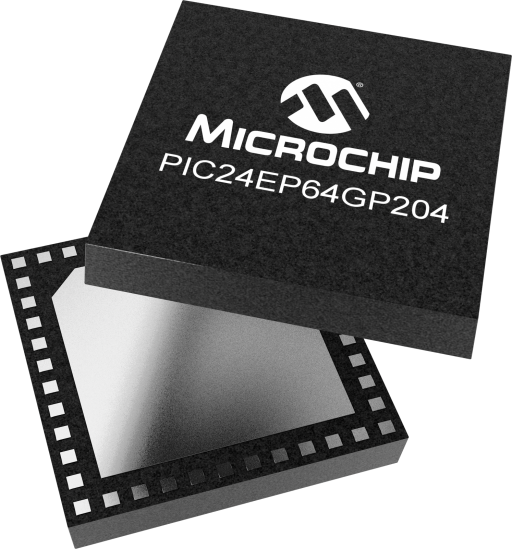

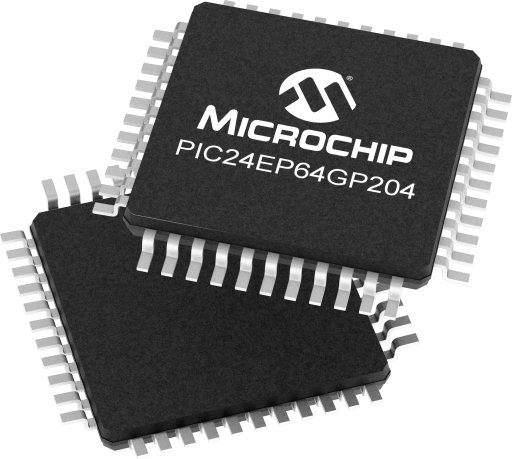

70 MIPS Microcontroller with Internal Op Amps
Overview
- CPU Type:16-bit PIC MCU
- CPU Speed Max MHz (megahertz):70
- Program Memory Size (KB):64
- Multiple Flash Panels:False
- Direct Memory Access (DMA) Channels:4
- Temp. Range Min.(C°):-40
- Temp. Range Max.(C°):125
- Operation Voltage Min.(V):3
- Operation Voltage Max.(V):3.6
- Pin Count:44
- Low Power:No
- Number of Comparators:4
- ADC Modules:1
- ADC Channels:9
- ADC Resolution Max:12
- ADC Sampling Rate (ksps):500
- Number of DACs:1
- DAC outputs:0
- Max DAC Resolution (bits):4
- Hardware RTCC:No
- Motor Control PWM Channels:0
- SMPS PWM Channels:0
- Number of PWM Time Bases:0
- Output Compare Channels:4
- USB Interface:None
- Number of CAN Modules:0
- Type of CAN module Max:None
- Crypto Engine:No
- Quadrature Encoder Interface (QEI):0
- Segment LCD:0
- LCD/Graphics Interface:No
- Configurable Logic Cell Modules (CLC /CCL):0
- Peripheral Pin Select (PPS)/Pin Muxing:Yes
- Supported in MPLAB Code Configurator:Yes
- Operating Conditions
- 3.0V to 3.6V, -40ºC to +85ºC, DC to 70 MIPS
- 3.0V to 3.6V, -40ºC to +125ºC, DC to 60 MIPS
- PIC24E MCU Core
- Modified Harvard Architecture
- C Compiler Optimized Instruction Set
- 16-bit Wide Data Path
- 24-bit Wide Instructions
- 16x16 Integer Multiply Operations
- 32/16 and 16/16 Integer Divide Operations
- Advanced Analog Features
- ADC module Configurable as 10-bit, 1.1 Msps with four S&H or 12-bit, 500 ksps with one S&H
- Up to three Op amp/Comparators
- Op Amp direct connection to the ADC module
- Additional dedicated comparator
- Programmable references with 32 voltage points for comparators
- Charge Time Measurement Unit (CTMU) supports mTouch™ capacitive touch sensing
- Timers/Output Compare/Input Capture
- 12 general purpose timers
- Five 16-bit and up to two 32-bit timers/counters
- Four OC modules configurable as timers/counters
- Four IC modules
- Peripheral Trigger Generator (PTG) for scheduling complex sequences
- PTG module with two configurable timers/counters
- Communication Interfaces
- Two UART modules (15 Mbps)
- Two 4-wire SPI modules (15 Mbps)
- Two I2C™ modules (up to 1 Mbaud) with SMBus support
- PPS to allow function remap
- Programmable Cyclic Redundancy Check (CRC)
- Direct Memory Access (DMA)
- 4-channel DMA with user selectable priority arbitration
- UART, SPI, ADC, IC, OC, and Timers
The PIC24E general purpose MCUs feature the high speed 70 MIPS core with excellent performance and code density. It offers superior ADC performance, CTMU, Op Amps and Peripheral Trigger Generator (PTG) for high-end general purpose applications. These devices are available in various packages and with extended (125°C) temp option.
