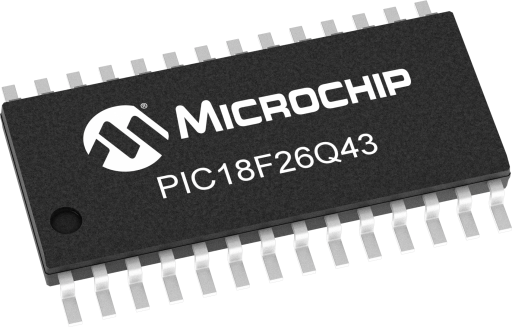

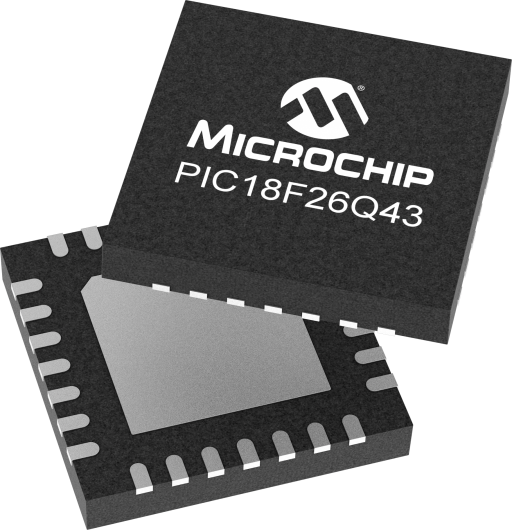

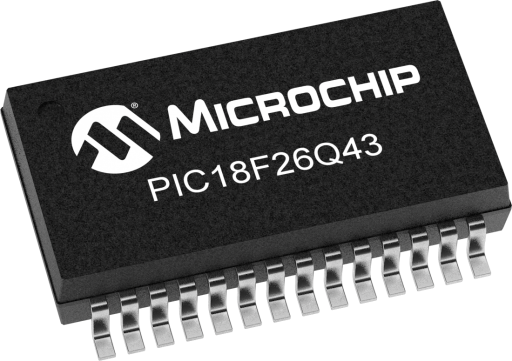

Overview
- Program Memory Size (KB):64
- RAM:4096
- Data EEPROM (bytes):1024
- Pin Count:28
- Operation Voltage Max.(V):5.5
- Operation Voltage Min.(V):1.8
- ADC Resolution Max:12
- ADC Channels:24
- Zero Cross Detect:True
- Number of Comparators:2
- SPI:2
- I2C:1
- Stand alone PWM:3
- Low Power:Yes
- Numerically Controlled Oscillator (NCO):3
- Data Signal Modulator (DSM):1
- Six Direct Memory Access (DMA) Controllers
- Three 16-bit dual PWMs provide six PWM outputs
- Vectored Interrupt (VI) Capability - Faster interrupt response time
- Selectable high/low priority
- Fixed interrupt latency of three instruction cycles
- Programmable vector table base address
- Backwards compatible with previous interrupt capabilities
- Memory Access Partition (MAP): The Program Flash Memory can be partitioned into:
- Application Block
- Boot Block
- Storage Area Flash (SAF) Block
- Device Information Area (DIA) Stores:
- Temperature Indicator factory calibrated data
- Fixed Voltage Reference measurement data
- Microchip Unique Identifier
- Low Power Mode Features:
- Sleep: < 1μA typical @ 3V
- Doze: CPU and Peripherals Running at Different Cycle Rates (typically CPU is lower)
- Idle: CPU Halted While Peripherals Operate
- Sleep: Lowest Power Consumption
- Peripheral Module Disable (PMD):
- Selectively disable hardware module to minimize active power consumption of unused peripherals
- Peripheral Pin Select (PPS):
- Enables pin mapping of digital I/O
- Analog-to-Digital Converter with Computation (ADCC):
- Up to 43 external channels
- Automated math functions on input signals such as averaging, filter calculations, oversampling and threshold comparison
- Operates in Sleep
- Five internal analog channels
- Hardware Capacitive Voltage Divider (CVD) Support:
- Automates touch sampling and reduces software size and CPU usage
- Four external inputs
- 8-Bit Digital-to-Analog Converter (DAC):
- Buffered output available on two I/O pins
- Internal connections to ADC and Comparators
- Two Comparators (CMP):
- Configurable output polarity
- External output via Peripheral Pin Select
- Zero-Cross Detect (ZCD):
- Detect when AC signal on pin crosses ground
- Voltage Reference:
- Fixed Voltage Reference with 1.024V, 2.048V and 4.096V output levels
- Internal connections to ADC, Comparator and DAC
- 5 x UART - One UART supports LIN/DMX/DALI
- DMA compatible
- Asynchronous UART, RS-232, RS-485 compatible
- Programmable 1, 1.5, 2 stop bits
- Two SPI modules:
- Configurable length bytes
- Arbitrary length data packets
- Transmit-without-Receive and Receive-without-transmit option
- Transfer byte counter
- Separate transmit and receive buffers with 2-byte FIFO and DMA capabilities
- One I2C module, SMBus, PMBus™ Compatible:
- 7-bit and 10-bit addressing modes with address masking modes
- Dedicated address, transmit and receive buffers and DMA capabilities
- I2C, SMBus 2.0 and SMBus 3.0, and 1.8V input level selections
- Multi-Master mode, including self-addressing
- Programming/Debugging Features:
- In-Circuit Serial Programming™ (ICSP™) via Two Pins
- In-Circuit Debug (ICD) with Three Breakpoints via Two Pins
- Debug Integrated On-Chip
PIC18-Q43 combines our most popular, versatile and easy to use Core Independent Peripherals with advanced interconnection capabilities that make sophisticated hardware customization effortless. These 28-, 40- and 48-pin devices are equipped with a 12-bit ADC with computation, six 16-bit dual PWMs outputs, six Direct Memory Access channels, eight Configurable Logic Cells (CLCs) and five UARTS. This combination simplifies the creation of customized hardware-based functions to improve system response and reduce code development time for a variety of real-time control applications.
PIC18-Q43 Product Family Overview
Functional Safety:
This product is recommended for safety critical applications targeting both industrial and automotive products (IEC 61508 and ISO 26262). Necessary documentation such as FMEDA report and Safety Manual can be provided on request. Certified development tools are also available for this product. Please contact your local Microchip sales office or your distributor for more information.
