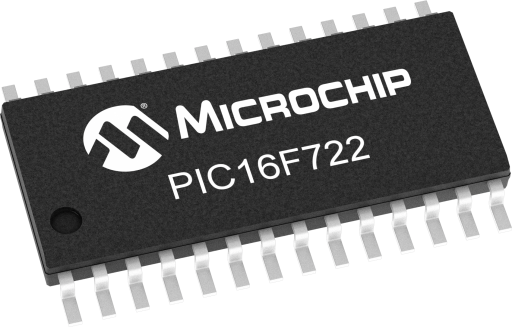

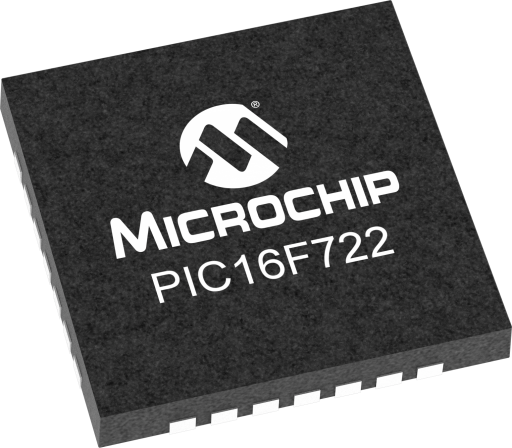

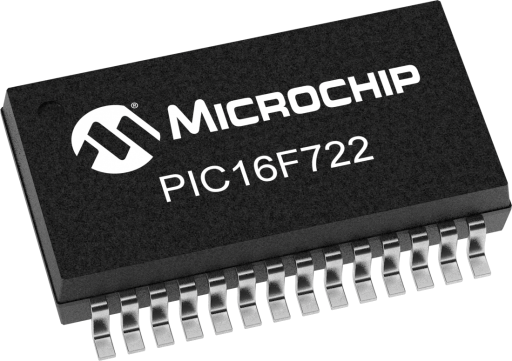

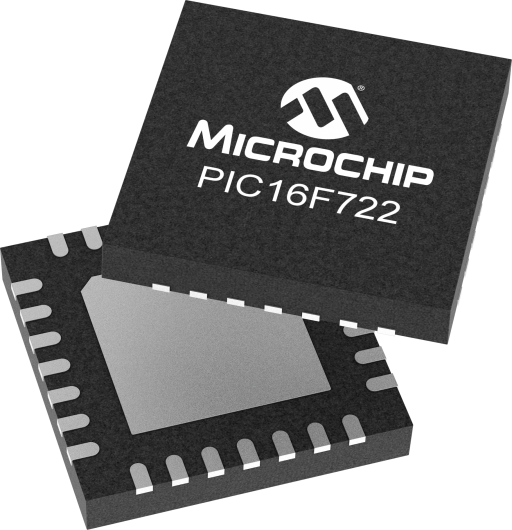

PIC16F722

Name: PIC16F722
Brand: Microchip Technology
SKU: 2003
Availability: InStock

Status: In Production

Data Sheet:

PDF

PIC16(L)F722/3/4/6/7 Data Sheet

Recommended for Automotive Design

Overview Documentation Tools And Software Design Resources Similar Devices Purchase Related Videos

Overview

Alternate products

Compare Products (2)

Program Memory Size (KB):3.5
RAM:128
Data EEPROM (bytes):0
Pin Count:28
Operation Voltage Max.(V):5.5
Operation Voltage Min.(V):1.8
ADC Resolution Max:8
ADC Channels:11
Zero Cross Detect:False
Number of Comparators:0
SPI:1
I2C:1
Stand alone PWM:0
Low Power:Yes
Numerically Controlled Oscillator (NCO):0
Data Signal Modulator (DSM):0

Mid-Range core with 35 Instruction, 8 Stack Levels
Flash Program Memory
Internal 16MHz oscillator
I²C™, SPI, AUSART
2 X CCP (Caputure/Compare/PWM)
11 Channel 8b ADC
25mA Source/Sink current I/O
One 8-bit Timer (TMR0)
Two 16-bit Timer (TMR1/TMR2)
Watchdog Timer (WDT)
Enhanced Power-On/Off-Reset
Brown-Out Reset (BOR)
In Circuit Serial Programming™ (ICSP™)
Built-in mTouch™ capacative sensing module
Wide Operation Voltage Variant ‘F’ (1.8V – 5.5V)
eXtreme Low Power (XLP) ‘LF’ Variant (1.8V – 3.6V)
The PIC16F/LF722 & PIC16F/LF722A are electrically identical
The ''A'' variants are provided at reduced pricing

This versatile 28-pin MCU is a member of Microchip's family of Extreme Low Power MCUs featuring nanoWatt XLP(TM) Technology.

Use your up or down key to switch images.

Documentation

Documents

Filter by Document Type

Search Documentation

Show entries

Search:

Title	Document Category	DS Number
PIC16(L)F722/3/4/6/7 Data Sheet Data Sheets DS Number DS40001341	Data Sheets	DS40001341	Download	PIC16(L)F722/3/4/6/7 Data Sheet
PIC16(L)F72X Family Silicon Errata and Data Sheet Clarification Errata DS Number DS80000382	Errata	DS80000382	Download	PIC16(L)F72X Family Silicon Errata and Data Sheet Clarification
eXtreme Low-Power (XLP) PIC Microcontrollers: An Introduction to Microchip's Low-Power Devices Application Notes	Application Notes		Link Download	eXtreme Low-Power (XLP) PIC Microcontrollers: An Introduction to Microchip's Low-Power Devices
Using the Temperature Indicator Module Application Notes	Application Notes		Link Download	Using the Temperature Indicator Module
Utility Metering Brochure Brochures DS Number DS01008	Brochures	DS01008	Download	Utility Metering Brochure
Electronic Solutions for Medical and Fitness Brochures	Brochures		Download	Electronic Solutions for Medical and Fitness

Previous1 2 3Next

Tools And Software

Development Environment

Emulator and Debuggers

Demo & Evaluation Boards

Programmers

Tools
MPLAB X INTEGRATED DEVELOPMENT ENVIRONMENT (IDE) MPLAB® X Integrated Development Environment (IDE) is an expandable, highly configurable software program that incorporates powerful tools to help you discover, configure, develop, debug and qualify embedded designs for most of Microchip’s microcontrollers, microprocessors and digital signal controllers.
MPLAB XC8 COMPILER Available as free, unrestricted-use downloads, our award-winning MPLAB® XC C Compilers are comprehensive solutions for your project’s software development.
MPLAB-Extensions MPLAB® Extensions for Microsoft® Visual Studio Code® (VS Code®) is a collection of VS Code extensions that combines the power of the MPLAB development ecosystem with the versatility of VS Code. Whether you are a new or existing client, MPLAB Extensions for VS Code provides you with a seamless, flexible and efficient development environment with comprehensive support for designs based on our devices.

Previous1Next

Tools
MPLAB® ICD 4 In-Circuit Debugger The MPLAB® ICD 4 In-Circuit Debugger/Programmer is Microchip’s fastest, cost-effective debugging and programming tool for PIC® Microcontrollers (MCUs), Microprocessors (MPUs) and dsPIC® Digital Signal Controllers (DSCs).
MPLAB® PICkit™ 4 In-Circuit Debugger The MPLAB® PICkit™ 4 In-Circuit Debugger/Programmer allows fast and easy debugging and programming of PIC®, dsPIC® , AVR, SAM and CEC flash microcontrollers and microprocessors. View Purchasing Options
MPLAB® ICE 4 In-Circuit Emulator, Programmer and Debugger The MPLAB ICE 4 in-circuit emulator system boosts productivity with feature-rich programming and debugging for PIC®, AVR® and SAM devices and dsPIC® Digital Signal Controllers (DSCs). View Purchasing Options
MPLAB® ICD 5 In-Circuit Debugger/Programmer The MPLAB® ICD 5 In-Circuit Debugger/Programmer offers advanced connectivity and power options for developers of designs based on PIC®, AVR® and SAM devices and dsPIC® Digital Signal Controllers (DSCs). View Purchasing Options
MPLAB® PICkit™ 5 In-Circuit Debugger The MPLAB® PICkit™ 5 in-circuit debugger/programmer enables quick prototyping and portable, production-ready programming for all Microchip devices, including PIC® microcontrollers (MCUs) and dsPIC® Digital Signal Controllers (DSCs), AVR® and SAM devices and Arm® Cortex®-based microprocessors (MPUs). View Purchasing Options

Previous1Next

Tools
EXPLORER 8 DEVELOPMENT KIT .The Explorer 8 Development Kit is a full-featured development board and platform for 8-bit PIC® microcontrollers. This kit is a versatile development solution, featuring several options for external sensors, off-board communication and human interface. View Purchasing Options

Previous1Next

Tools
MPLAB PM3 UNIVERSAL DEVICE PROGRAMMER The MPLAB. PM3 Universal Device Programmer operates with a PC or as a stand-alone unit, and programs Microchips entire line of PICmicro.devices as well as the latest dsPIC30F DSC devices. Socket: AC164322 PartNo: PIC16F722 (28ML) Socket: AC164307 PartNo: PIC16F722 (28SS) Socket: AC164302 PartNo: PIC16F722 (28SO) Socket: AC164301 PartNo: PIC16F722 (28SP) View Purchasing Options
MPLAB® ICD 4 In-Circuit Debugger The MPLAB® ICD 4 In-Circuit Debugger/Programmer is Microchip’s fastest, cost-effective debugging and programming tool for PIC® Microcontrollers (MCUs), Microprocessors (MPUs) and dsPIC® Digital Signal Controllers (DSCs).
MPLAB® PICkit™ 4 In-Circuit Debugger The MPLAB® PICkit™ 4 In-Circuit Debugger/Programmer allows fast and easy debugging and programming of PIC®, dsPIC® , AVR, SAM and CEC flash microcontrollers and microprocessors. View Purchasing Options
SOFTLOG SEC-DS SECURE PROGRAMMING UPGRADE FOR ICP2 PROGRAMMERS The Softlog SEC-DS Secure Programming Upgrade is a "Secure Programming" extension for the ICP2 and ICP2(HC) progra View Purchasing Options
SOFTLOG SEC4CH-DS SECURE PROGRAMMING UPGRADE FOR ICP2GANG PROGRAMMERS The Softlog SEC4CH-DS Secure Programming Upgrade is a "Secure Programming" extension for the ICP2GANG programmer. View Purchasing Options

Previous1 2 3 4 5Next

Design Resources

Code Examples

View All Parametrics

Please visit the full parametric chart. If you still cannot find the chart you are looking for, please complete our Website Feedback Form to notify us of this issue.

Similar Devices

View All Family Devices

No similar devices found.
