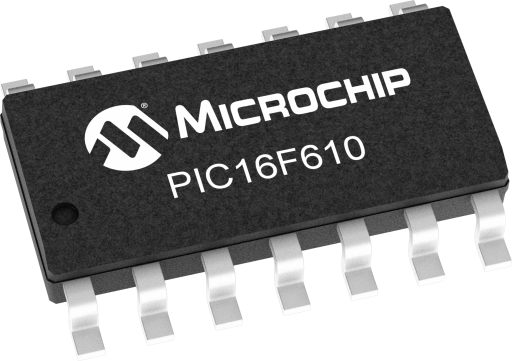

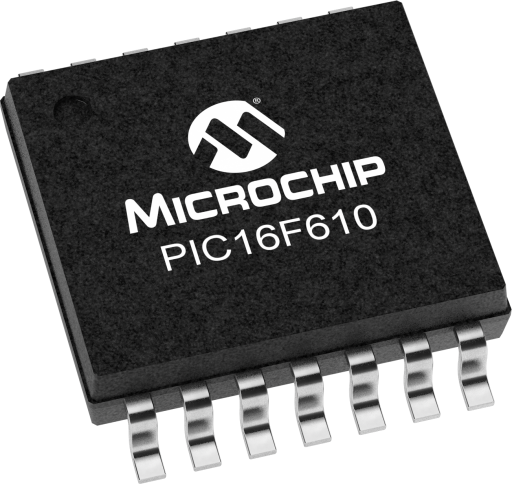

Overview
- Program Memory Size (KB):1.75
- RAM:64
- Data EEPROM (bytes):0
- Pin Count:14
- Operation Voltage Max.(V):15
- Operation Voltage Min.(V):2
- ADC Resolution Max:0
- ADC Channels:0
- Zero Cross Detect:False
- Number of Comparators:2
- SPI:0
- I2C:0
- Stand alone PWM:0
- Low Power:No
- Numerically Controlled Oscillator (NCO):0
- Data Signal Modulator (DSM):0
- Flash Program Memory
- Internal 4/8MHz oscillator
- Comparator with hysterisis (user configurable)
- Mid-Range core with 35 Instruction, 8 Stack Levels
- 25mA Source/Sink current I/O
- One 8-bit Timer (TMR0)
- One 16-bit Timer (TMR1)
- Watchdog Timer (WDT)
- Enhanced Power-On/Off-Reset
- Brown-Out Reset (BOR)
- In Circuit Serial Programming (ICSP)
- Wide Operating Voltage (2.0V – 5.5V)
- High Voltage PIC16HV610 variant (2.0V – User Defined) with internal shunt regulator
