Overview
Alternate products
Compare Products
(2)
- Program Memory Size (KB):0.875
- RAM:36
- Data EEPROM (bytes):64
- Pin Count:18
- Operation Voltage Max.(V):6
- Operation Voltage Min.(V):2
- ADC Resolution Max:0
- ADC Channels:0
- Zero Cross Detect:False
- Number of Comparators:0
- SPI:0
- I2C:0
- Stand alone PWM:0
- Low Power:No
- Numerically Controlled Oscillator (NCO):0
- Data Signal Modulator (DSM):0
A newer device is available. Please consider PIC16F84A.

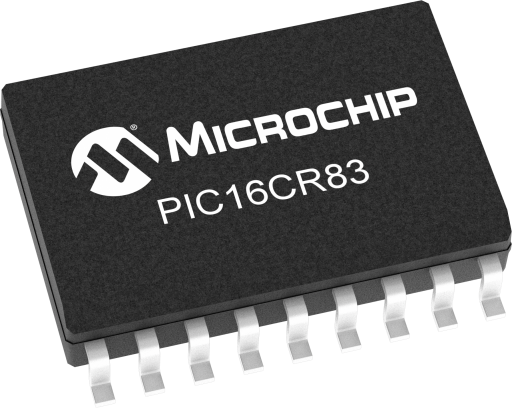

This powerful (400 nanosecond instruction execution) yet easy-to-program (only 35 single word instructions) CMOS ROM/EEPROM-based 8-bit microcontroller packs Microchip’s powerful PIC® architecture into an 18-pin package. Easily adapted for automotive, industrial, appliances, and low power remote sensors, electronic locks and security applications.
Use your up or down key to switch images.
Tools And Software
Development Environment
Programmers
| Tools |
|---|
 MPLAB® X Integrated Development Environment (IDE) is an expandable, highly configurable software program that incorporates powerful tools to help you discover, configure, develop, debug and qualify embedded designs for most of Microchip’s microcontrollers, microprocessors and digital signal controllers.
|
| Available as free, unrestricted-use downloads, our award-winning MPLAB® XC C Compilers are comprehensive solutions for your project’s software development.
|
| Tools |
|---|
| The MPLAB. PM3 Universal Device Programmer operates with a PC or as a stand-alone unit, and programs Microchips entire line of PICmicro.devices as well as the latest dsPIC30F DSC devices.
|
