120Vin 150mA Ultra-Low Iq High-PSRR LDO
Overview
- VIN Min (V) V (volt):6
- VIN Max (V) V (volt):120
- VOUT V (volt):3.3, 5.0
- IOUT #1 Max mA (milliampere):150
- Rated IOUT Max mA (milliampere):150
- Quiescent Current µA (microampere):8
- Voltage Drop Typ (mV):1800
- Accuracy (+/-) %:5
- Adjustable VOUT:Yes
- Reverse Battery:No
- Bypass Pin:Yes
- Current Limit:Yes
- Shutdown EN:No
- Power Good Signal:No
- Thermal Shutdown:Yes
- Wide input voltage range: 6V to 120V DC
- Ultra-low quiescent current: 8µA
- 150mA guaranteed output current
- Adjustable output from 1.22V to 5.5V
- Stable with ceramic output capacitors
- Ultra-high PSRR (75dB at 10kHz)
- Ultra-high line rejection (load dump)
- ±3% initial accuracy
- Thermal shutdown and current limit protection
- Thermally efficient 8-pin ePad SOIC packages

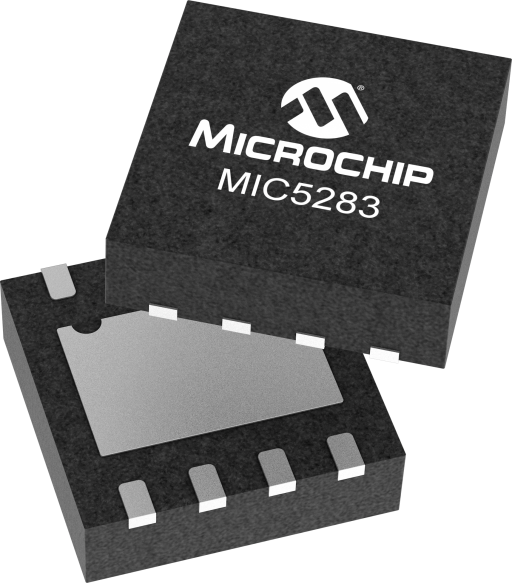

The MIC5283 high-performance linear regulator offers a very-wide input operating voltage range, up to 120V DC, and supplies an output current of up to 150mA.
Ideal for high input voltage applications such as industrial and telecom, the MIC5283 offers ±3% initial accuracy, extremely high-power supply rejection ratio (75dB at 10kHz) and an ultra-low quiescent current of 8µA. The MIC5283 is optimized for high-voltage line transients, making it ideal for harsh environment applications.
The MIC5283 is offered in both fixed output voltage (3.3V or 5.0V) and adjustable output voltage (1.22V to 5.5V) options. The MIC5283 operates over a -40°C to +125°C temperature range and is available in lead-free, RoHS-compliant, and ePad SOIC-8 packages.
