High Efficiency 600mA Inductor-less Buck Regulator Power Module w/Hyper Light Load™
Overview
- Driver Type:Step Down (Buck)
- VIN Min V:2.7
- VIN Max V:5.5
- Adjustable:Yes
- Temp Range Min °C (degrees Celsius):-40
- Temp Range Max °C (degrees Celsius):125
- Control Mode:PWM
- HyperLight Load®:Yes
- Hyper Speed Control®:No
- LowQ®:No
- Output Current:0.6
- Output Voltage (V):1.0, 1.2, 1.8, 3.3, Adj
- PWR Good:
- Soft Start:
- VOUT Max V (volt):3.3
- Input voltage range: 2.7V to 5.5V
- Fixed output voltage options from 0.72V to 3.3V
- Output current guaranteed up to 600mA
- Ultra fast transient response
- 20µA typical quiescent current
- 4MHz in PWM in constant current mode
- HyperLight Load® mode
- No external inductor required
- 25mVpp in HyperLight Load®mode
- 3mV output voltage ripple in full PWM mode
- >93% efficiency
- >83% at 1mA
- Fully integrated MOSFET switches
- Micropower shutdown
- Thermal shutdown and current limit protection
- -40°C to +125°C junction temperature range

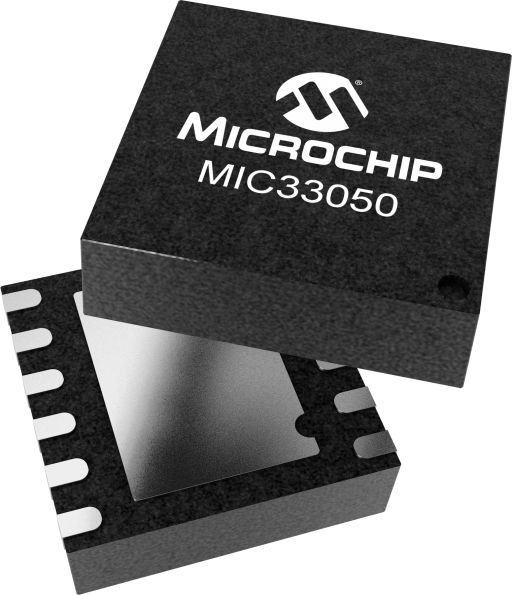

The MIC33050 is a high efficiency 600mA PWM synchronous buck (step-down) regulator with internal inductor featuring HyperLight Load®, a patent-pending switching scheme that offers best-in-class light load efficiency and transient performance while providing very small external components and low output ripple at all loads.
The MIC33050 also has a very low typical quiescent current draw of 20µA and can achieve over 83% efficiency even at 1mA.
In contrast to traditional light load schemes, the HyperLight Load® architecture does need not trade off control speed to obtain low standby currents and in doing so, the device only needs a small output capacitor to absorb the load transient as the powered device goes from light load to full load.
At higher loads, the MIC33050 provides a constant switching frequency of greater than 4MHz while providing peak efficiencies greater than 93%
The MIC33050 is available in fixed output voltage options from 0.72V to 3.3V thereby eliminating external feedback components.
The MIC33050 is available in an 12-pin 3mm x 3mm with a operating junction range of -40°C to +125°C.
