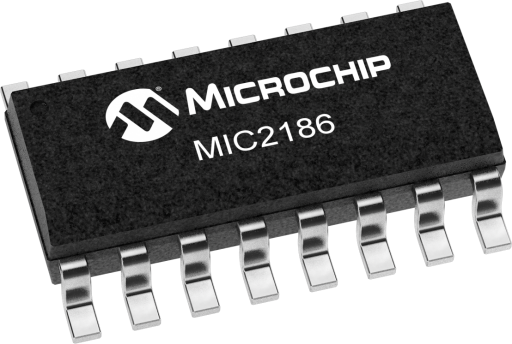

MIC2186

Status: In Production
14V Non-Synchronous Boost PWM Control with Sync

Overview

  • Current Limit / Short Circuit Protection:1
  • Max Duty Cycle (%):0.85
  • Enable Pin:1
  • External Clock Sync:1
  • Internal Voltage Bias:1
  • Iq Off (µA):0.5
  • Input Voltage Max:14
  • Input Voltage Min:2.9
  • Operating Supply Current (mA):3.5
  • PFM, Discontinuous, Hyperlight load, or Skip Mode:1
  • Package:16/SOP, 16/QSOP
  • Soft Start:1
  • Supported Outputs:1
  • Supported Topologies:Boost, SEPIC, Flyback
  • Typical Tolerance (%):±1
Read more
    • Input voltage range: 2.9V to 14V
    • 1.6O output driver
    • Oscillator frequency of 100kHz/200kHz/400kHz
    • Frequency sync to 600kHz
    • Front edge blanking
    • PWM Current Mode Control
    • Selectable light load SKIP mode
    • 600µA quiescent current (SKIP-Mode)
    • Input voltage range: 2.9V to 14V
    • 1.6O output driver
    • Oscillator frequency of 100kHz/200kHz/400kHz
    • Frequency sync to 600kHz
    • Front edge blanking
    • PWM Current Mode Control
    • Selectable light load SKIP mode
    • 600µA quiescent current (SKIP-Mode)
