28V Synchronous Buck Controllers Featuring Adaptive ON-Time Control and Hyper Speed Control™
Overview
Alternate products
Compare Products
(2)
- Current Limit / Short Circuit Protection:1
- Max Duty Cycle (%):85
- Enable Pin:1
- External Clock Sync:0
- Input UVLO Typ (V):4.2
- Internal Compensation:1
- Internal Voltage Bias:1
- Iq Off (µA):0.1
- Input Voltage Max:28
- Output Voltage Max:28
- Input Voltage Min:4.5
- Output Voltage Min:0.6
- Operating Supply Current (mA):1.1
- PFM, Discontinuous, Hyperlight load, or Skip Mode:0
- Package:3mm X 3mm
- Power Good Signal:1
- Soft Start:1
- Supported Outputs:1
- Supported Topologies:COT, Sync. Buck
- Typical Tolerance (%):1
- Hyper Speed Control® architecture enables:
- High delta-V operation (VIN = 28V and VOUT = 0.6V)
- Any Capacitor™ stable
- 4.5V to 28V input voltage
- Adjustable output voltage from 0.6V to 24V
- 200kHz to 650kHz programmable switching frequency
- HyperLight Load® (MIC2125)
- Hyper Speed Control® (MIC2126)
- Enable input and power good output
- Built-in 5V regulator for single-supply operation
- Programmable current limit and "hiccup" mode short-circuit protection
- 7ms internal soft-start, internal compensation, and thermal shutdown
- Supports safe start-up into a pre-biased output
- -40°C to +125°C junction temperature range

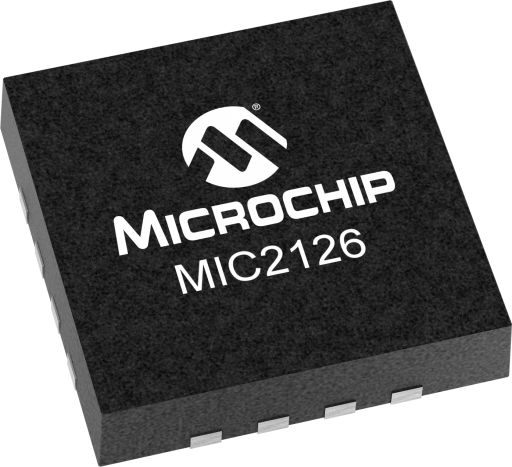

- Available in 16-pin 3mm x 3mm QFN package
MIC2125 and MIC2126 are constant-frequency synchronous buck controllers featuring a unique adaptive ON-time control architecture. The MIC2125/6 operates over an input voltage range from 4.5V to 28V and can be used to supply load current up to 25A . The output voltage is adjustable down to 0.6V with a guaranteed accuracy of ±1%. The device operates with programmable switching frequency from 200kHz to 650kHz.
HyperLight Load® architecture provides the same high efficiency and ultra-fast transient response as the Hyper Speed Control® architecture under the medium to heavy loads. It also maintains high efficiency under light load conditions by transitioning to variable frequency, discontinuous conduction mode operation.
The MIC2125/6 offers a full suite of protection features to ensure protection of the IC during fault conditions. These include undervoltage lockout to ensure proper operation under power-sag conditions, internal soft-start to reduce inrush current, "hiccup" mode short-circuit protection, and thermal shutdown.
Use your up or down key to switch images.
Tools And Software
Demo & Evaluation Boards
Library and Firmware
| Tools |
|---|
 The MIC2125/6 Demo Board has been developed to demonstrate the capabilities of the MIC2125/6 device with two adaptive ON-time control architectures:
Hyper Speed Control (MIC2126)
HyperLight Load (MIC2125)
|
