Battery-Backed SPI Real-Time Clock/Calendar with Pre-Programmed EUI-64™ MAC ID
Overview
- EEPROM Data Memory Bytes:1
- Unique ID with MAC Address:EUI-64
- User SRAM (Bytes):64
- Max Interface Speed:10 MHz
- Minimum Clock Count:0.01 sec
- Pin Count:10
- Unique ID (Bits):128
- Temp Range Min (°C (degrees Celsius)):-40
- Temp Range Max (°C (degrees Celsius)):85
- General purpose SPI RTCC with features that target low power, security & communications applications. • Low Power Operation - VCC Min = 1.8V - Icc < 5 µA Typical Standby Current • Low Backup Power - VBAT Min = 1.3V - Ibat < 700nA Typical Timekeeping & SRAM Retention Current • Automatic Battery Switchover with Timestamp - VCC to VBAT (VCC Lost) - VBAT to VCC (VCC Restored) • Dual configurable alarms with a 0.01 sec count on one alarm - IRQ (VCC or VBAT) • Clock Out frequencies: 32.768, 8.192 & 4.096 KHz and 1 Hz • Digital Trimming Range from -255 to + 255 ppm in 1 ppm steps - Adjusts up to 22 seconds/day • EEPROM has 8 Bytes/Page with Block Sector write protection - Protect: None, 1/4, 1/2 or all of array • Factory standard MAC address programming or custom ID available

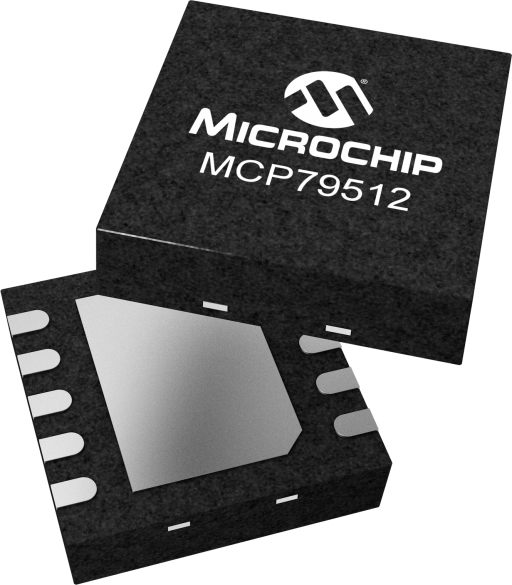

The MCP79512 SPI RTCC is highly integrated with memory and advanced features normally found in higher priced devices. By starting with a basic real-time clock, digital trimming was added for higher accuracy, a battery switchover for backup power, a timestamp to log power failures and three types of memory, which includes SRAM, EEPROM and a unique ID in a locked section of EEPROM. This ID is preprogrammed with a 64-bit MAC Address, but it can also be ordered blank for the end user to program.
