7.5 µA, 80 kHz Zero-Drift Op Amps
Overview
- CMRR Min (dB):119
- Enhanced EMI Protection:No
- Gain Bandwidth Product kHz (kilohertz):80
- Iq Max (uA):11
- Input Voltage Noise Density (nV/rt(Hz)):102
- Iq Typical (µA):7.5
- Operating Voltage Max V (volt):5.5
- Operating Voltage Min V (volt):1.6
- PM (deg):70
- PSRR Min (dB):118
- # Per Package:1
- Slew Rate (V/µs):0.03
- Vos Max µV (microvolt):8
- Zero Drift architecture
- Maximum offset of only 8 uV
- Maximum offset drift of 50 nV/C
- No 1/f noise
- Low Power operation

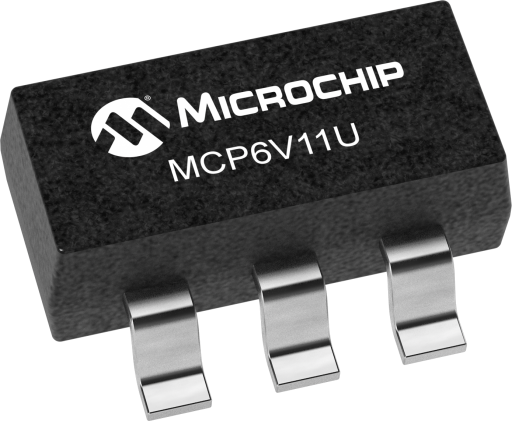

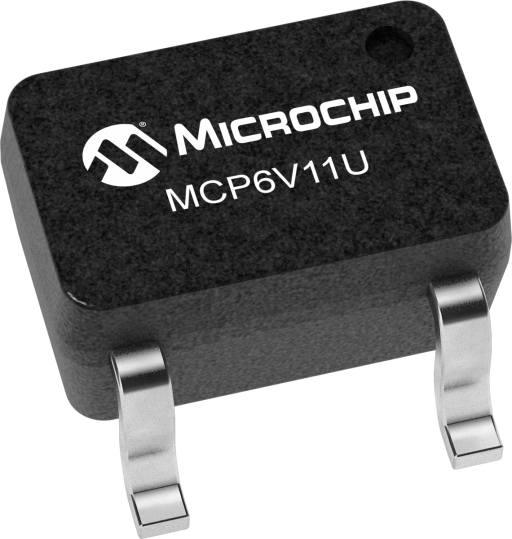

- Small SC-70 and SOT-23 packaging
- AEC-Q100 Grade 1
The MCP6V1x family of operational amplifiers provides input offset voltage correction for very low offset and offset drift. These are low power devices, with a gain bandwidth product of 80 kHz. They are unity gain stable, have no 1/f noise, and provide superior CMRR and PSRR performance. These products operate with a single supply voltage as low as 1.6V with a maximum quiescent current of only 11 uA. AEC-Q100 Grade 1 qualification is available for this device.
