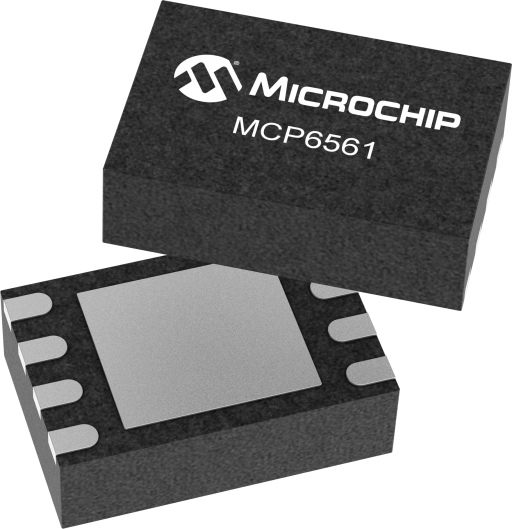

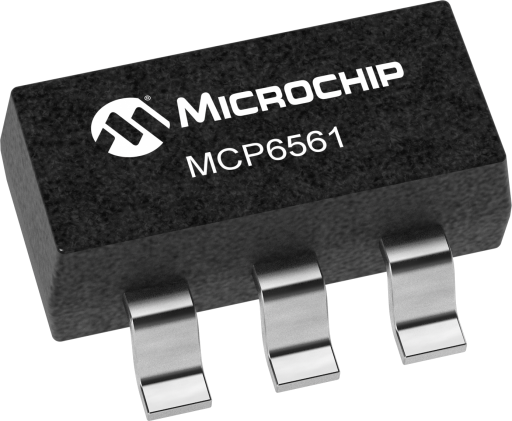

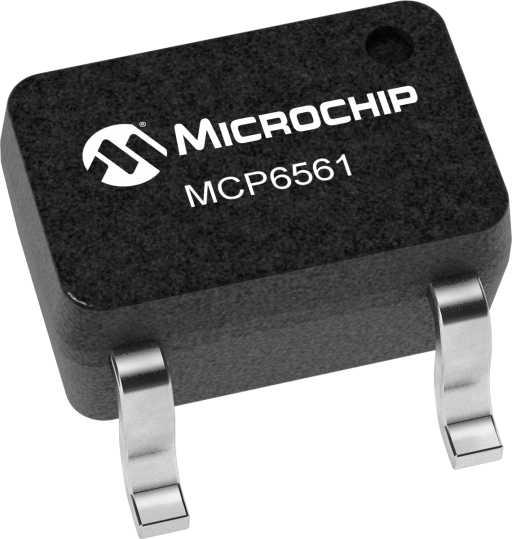

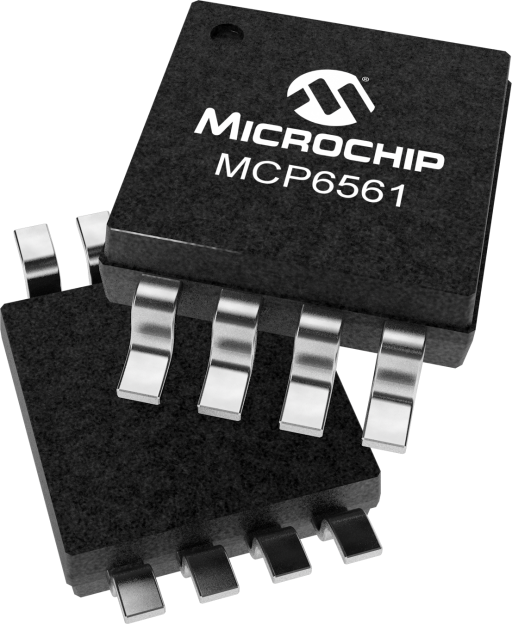

1.8V Low-Power Push-Pull Output Comparator
Overview
- Channels:1
- Iq Max (uA):130
- Iq Typical (µA):100
- Operating Voltage Max V (volt):5.5
- Operating Voltage Min V (volt):1.8
- Output Logic:Push Pull
- Propagation Delay (Typical) ns (nanosecond):47
- Vos Max µV (microvolt):10000
These comparators are optimized for low power, single-supply operation with greater than rail-to-rail input operation. The push-pull output of the MCP6561/2/4 family supports rail-to-rail output swing, and interfaces with TTL/CMOS logic. The output limits supply current surges, and dynamic power consumption while switching. AEC-Q100 Grade 1 qualification is available for this device
