Push-Pull Output Sub-Microamp Comparators
Overview
- Channels:2
- Iq Max (uA):1
- Iq Typical (µA):0.6
- Operating Voltage Max V (volt):5.5
- Operating Voltage Min V (volt):1.6
- Output Logic:Push Pull
- Propagation Delay (Typical) ns (nanosecond):4000
- Vos Max µV (microvolt):7000

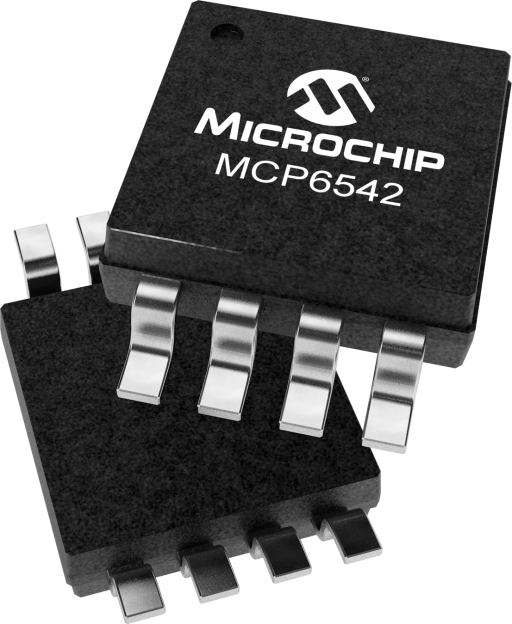

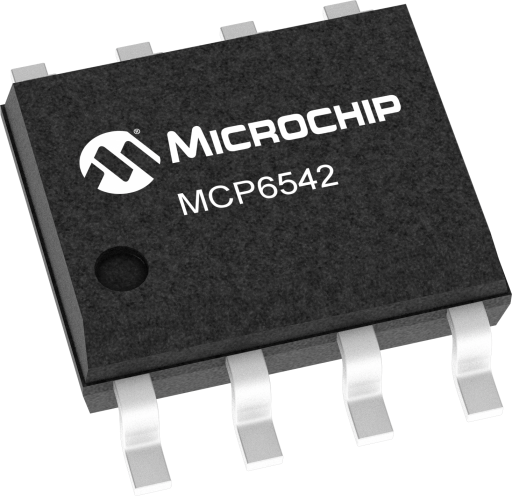

The MCP6542 is a Push-pull, dual comparator. This single-ended device operates from 1.6V to 5.5V, with typical quiescent current of 600 nA and a maximum of 1 microamp. This device is offered in the eight lead PDIP, SOIC and MSOP package. AEC-Q100 Grade 1 qualification is available for this device
Use your up or down key to switch images.
Tools And Software
Demo & Evaluation Boards
| Tools |
|---|
 This is a blank PCB that allows the operation of Microchip Technology’s 8-pin devices to be easily evaluated.
|
