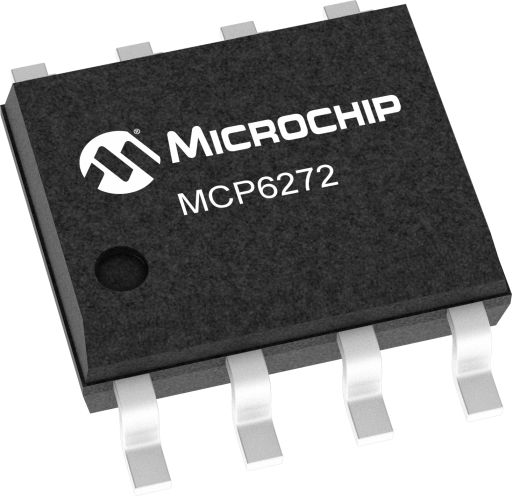

170 µA, 2 MHz Rail-to-Rail Op Amp
Overview
- CMRR Min (dB):65
- Enhanced EMI Protection:No
- Gain Bandwidth Product kHz (kilohertz):2000
- Iq Max (uA):240
- Input Voltage Noise Density (nV/rt(Hz)):20
- Iq Typical (µA):170
- Operating Voltage Max V (volt):6.0
- Operating Voltage Min V (volt):2.0
- PM (deg):65
- PSRR Min (dB):70
- # Per Package:2
- Slew Rate (V/µs):0.9
- Vos Max µV (microvolt):3000
- Input Offset Voltage: ±3 mV (max)
- Quiescent Current: 170 µA (typical)
- Common Mode Rejection Ratio: 65 dB (typical)
- Power Supply Rejection Ratio: 70 dB (typical)
- Rail-to-Rail Input/Output
- Supply Voltage Range: 2V to 6V
- Gain Bandwidth Product: 2 MHz (typical)
- Slew Rate: 0.9V/µs (typical)
- Unity Gain Stable
- Extended Temperature Range: -40°C to +125°C
The Microchip Technology Inc. MCP6271/1R/2/3/4/5 family of operational amplifiers (op amps) provide wide bandwidth for the current. This family has a 2 MHz Gain Bandwidth Product (GBWP) and a 65° Phase Margin. This family also operates from a single supply voltage as low as 2.0V, while drawing 170 µA (typical) quiescent current. The MCP6271/1R/2/3/4/5 supports rail-to-rail input and output swing, with a common mode input voltage range of VDD + 300mV to VSS – 300mV. This family of op amps is designed with Microchip’s
advanced CMOS process. The MCP6275 has a Chip Select input (CS) for dual op amps in an 8-pin package and is manufactured by
cascading two op amps (the output of op amp A connected to the non-inverting input of op amp B). The CS input puts the device in low power mode.
