0.9 µA, High-Precision Op Amps
Overview
- CMRR Min (dB):70
- Enhanced EMI Protection:No
- Gain Bandwidth Product kHz (kilohertz):10
- Iq Max (uA):1.35
- Input Voltage Noise Density (nV/rt(Hz)):165
- Iq Typical (µA):0.9
- Operating Voltage Max V (volt):5.5
- Operating Voltage Min V (volt):1.8
- PM (deg):65
- PSRR Min (dB):70
- # Per Package:2
- Slew Rate (V/µs):0.004
- Vos Max µV (microvolt):150
- Rail-to-Rail Input and Output
- Unity gain stable
- Low operating voltage
- Low quiescent current
- Low offset voltage
- AEC-Q100 Grade 1

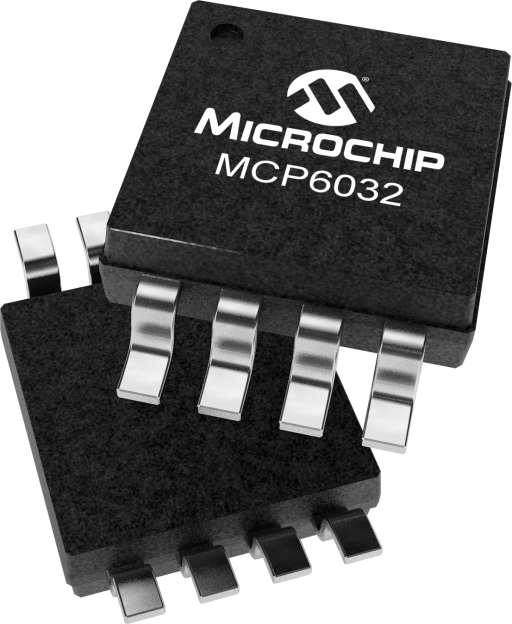

The MCP6032 operational amplifier (op amp) has a gain bandwidth of 10 kHz with a low typical operating current of 900 nA and an offset voltage that is less than 150 uV. The MCP6032 uses Microchip's advanced CMOS technology, which provides low bias current, high-speed operation, high open-loop gain and rail-to-rail input and output swing. The MCP6032 operates with a single supply voltage that can be as low as 1.8V, while drawing less than 1 uA of quiescent current. The MCP6032 is available in standard 8-lead SOIC and MSOP packages. AEC-Q100 Grade 1 qualification is available for this device.
Check out the MCP6031 PHOTODIODE PICTAIL PLUS demo board here!
Use your up or down key to switch images.
Tools And Software
Development Environment
Demo & Evaluation Boards
| Tools |
|---|
 Filter Design Made Easy
FilterLab provides the flexibility to select filter types and topologies, specify component tolerances and optimize the design based on your needs. It includes downloadable schematic diagrams of the filter circuit with component values and a complete Bill of Materials (BoM) to accelerate your design.
|
| Tools |
|---|
| The MCP6031 Photodiode PICtail™ Plus Demo Board demonstrates how to use a transimpedance amplifier, which consists of MCP6031 high precision op amp and external resistors, to convert photo-current to voltage.
|
| This board supports the capacitive humidity sensor application note AN1016. It measures the capacitance of a relative humidity sensor plugged into the board. |
| This is a blank PCB that allows the operation of Microchip Technology’s 8-pin devices to be easily evaluated.
|
