1 MHz, Low-Power Op Amp
Overview
- CMRR Min (dB):60
- Enhanced EMI Protection:No
- Gain Bandwidth Product kHz (kilohertz):1000
- Iq Max (uA):170
- Input Voltage Noise Density (nV/rt(Hz)):28
- Iq Typical (µA):100
- Operating Voltage Max V (volt):6.0
- Operating Voltage Min V (volt):1.8
- PM (deg):90
- PSRR Min (dB):na
- # Per Package:2
- Slew Rate (V/µs):0.6
- Vos Max µV (microvolt):4500
- Gain Bandwidth Product (GBWP): 1 MHz
- Quiescent Current: 100 µA (typ.)
- Supply voltage range: 1.8V to 6V
- Rail to Rail Input and Output
- Extended Temperature Range
- Space Saving Package Offering:8-lead PDIP, SOIC and MSOP

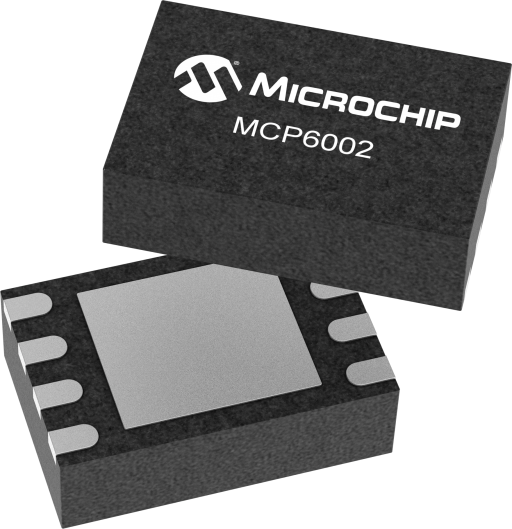

The MCP6002 is a dual general purpose op amp offering rail-to-rail input and output over the 1.8 to 6V operating range. This amplifier has a typical GBWP of 1 MHz with typical quiescent current of 100 microamperes. The MCP6002 is available in 8-lead PDIP, SOIC and MSOP packages.
Use your up or down key to switch images.
Tools And Software
Development Environment
Demo & Evaluation Boards
3rd Party Tools
| Tools |
|---|
 Filter Design Made Easy
FilterLab provides the flexibility to select filter types and topologies, specify component tolerances and optimize the design based on your needs. It includes downloadable schematic diagrams of the filter circuit with component values and a complete Bill of Materials (BoM) to accelerate your design.
|
| Tools |
|---|
| The MCP6SX2 PGA Thermistor PICtail Demo Board features the MCP6S22 and MCP6S92 Programmable Gain Amplifiers (PGA). |
| This board supports the capacitive humidity sensor application note AN1016. It measures the capacitance of a relative humidity sensor plugged into the board. |
| This is a blank PCB that allows the operation of Microchip Technology’s 8-pin devices to be easily evaluated.
|
| Tools |
|---|
| ECG 7 Click is a compact add-on board that records the heart's electrical activity. This board features the MCP6N16, a single zero-drift instrumentation amplifier with selectable gain from Microchip. In addition to the jack connector provided for connecting the cable with ECG electrodes, this Click board™ offers the possibility of connecting electrodes through screw terminals or an onboard header if the electrode connection does not match the jack connector. Besides, the user is allowed to process the output signal in analog or digital form. This Click board™ is suitable for medical remote diagnostic equipment applications, such as electrocardiogram (ECG) measurement.
