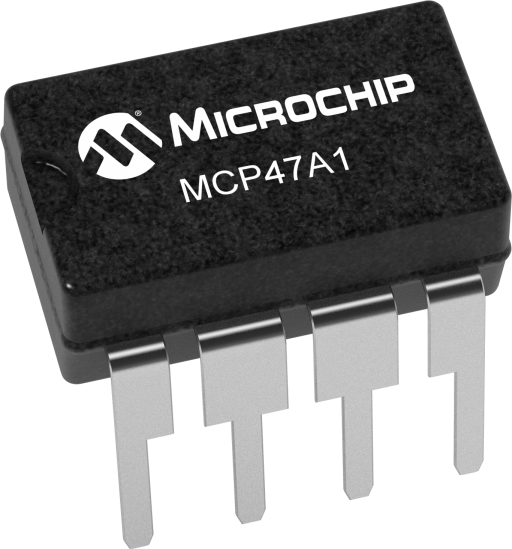

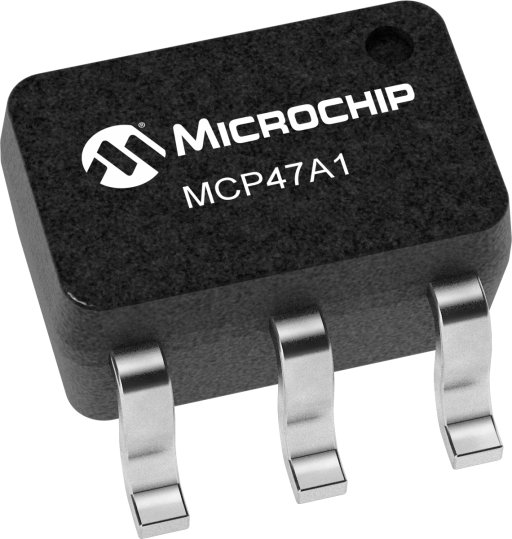

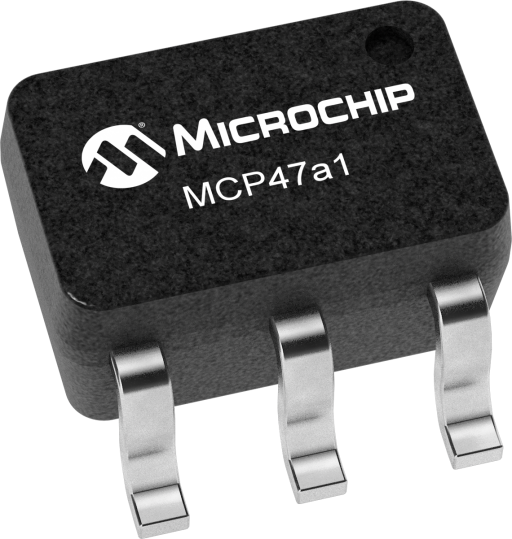

6-Bit Single Output DAC w/Command Code I2C™
Overview
- Resolution:6
- Number of Input Channels:1
- Interface:I²C
- INL Max LSB:1
- Output Settling Time (μs):15
- Memory Type:Volatile
MCP47A1 is a volatile, 6-bit Digital-to-Analog converter (DAC) for general purpose applications. Settings are controlled through an I2C™Compatible serial interface. The I2C™Compatible slave addresses of “010 1110” and “011 1110” are supported.
