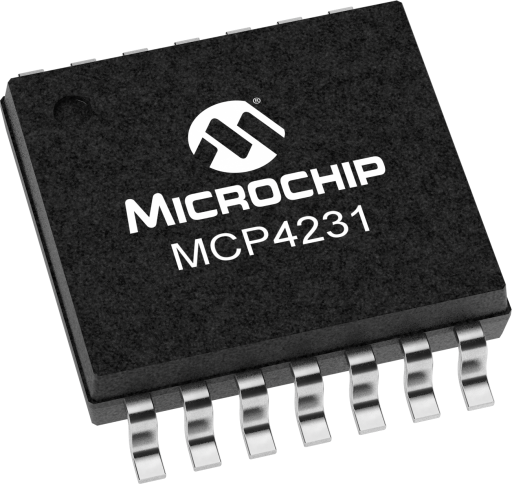

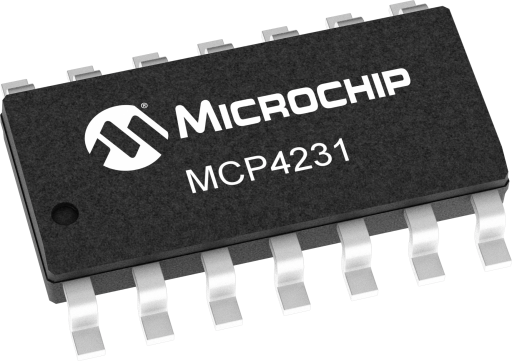

7-Bit Dual Digital POT with SPI
Overview
- # of Steps b (bit):129
- RAB kΩ (kilo ohm):5, 10, 50, 100
- 7-bit:128 Resistors with Taps to VSS and VDD
- SPI compatible interace
- Automatic Recall of Potentiometer Wiper Settings
- Resistance Values: 5kΩ, 10kΩ, 50kΩ,100kΩ
- Absolute (Rheostat): <100 ppm (typ.)
- Ratiometric (Potentiometer): <10 ppm (typ.)
- Low Wiper Resistance: 100Ω (typ.)
- Low-Power Operation: 1µA Max Static Current
- Wide Operating Voltage: 1.8V to 5.5V
- Extended Temperature Range: -40°C to +125°C
The MCP41/423X devices are volatile, 7-bit (129 wiper steps) digital potentiometers with an SPI compatible interface. The MCP41/42XX family is available with end-to-end resistor values of 5KΩ, 10KΩ, 50kΩ and 100KΩ. These devices offer a variety of configurations simplifying design while minimizing cost, package size and pin count.
Use your up or down key to switch images.
Tools And Software
Demo & Evaluation Boards
| Tools |
|---|
 The MCP402xEV is a low cost evaluation board that quickly enables the user to exercise all of the features of the MCP402X Non-Volatile Digital Potentiometer. |
| The MCP42XX PICtail Plus Daughter Board is used to demonstrate the operation of the MCP42XX Digital Potentiometers. The operation of the MCP41XX devices is similar to the MCP42XX devices. |
| The MCP4xxx Digital Potentiometer Daughter Board allows the system designer to quickly evaluate the operation of Microchip Technology’s MCP42XXX and MCP402X Digital Potentiometers.
|
| The 14-Lead SOIC/TSSOP/DIP Evaluation Board allows the system designer to quickly evaluate the operation of Microchip Technology’s devices in either SOIC, DIP, or TSSOP packages. |
