10-Bit, 200kSPS, Dual Channel ADC
Overview
- Resolution:10
- Sample Rate kSPS Max:200
- Input Channels Differential:1
- SFDR typ:78
- ENOB:9.9
- INL Typ LSB:0.5
- 10-bit resolution
- Dual channel
- SPI interface
- ±1 LSB DNL
- ±1 LSB INL
- 200 ksps sample rate at 5V
- -40 to +85°C temperature range
- AEC-Q100 Grade 3

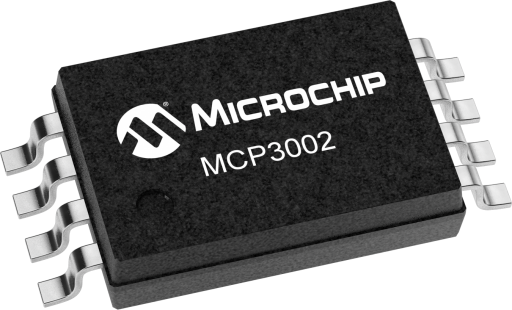

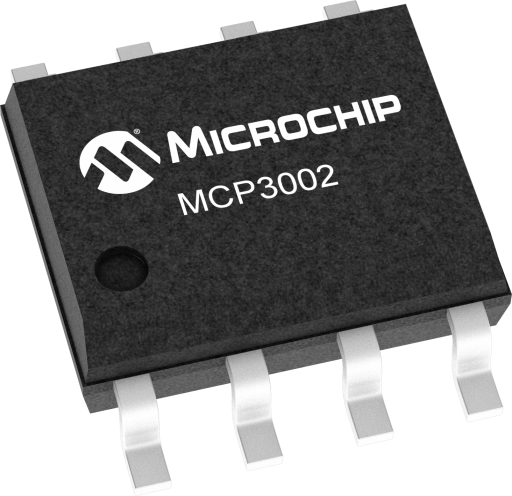

MCP3002 10-bit Analog-to-Digital Converter (ADC) combines high performance and low power consumption in a small package, making it ideal for embedded control applications. The MCP3002 features a successive approximation register (SAR) architecture and an industry-standard SPI™ serial interface, allowing 10-bit ADC capability to be added to any PICmicro® microcontroller. The MCP3002 features 200k samples/second, 2 input channels, low power consumption (5nA typical standby, 520µA typical active), and is available in 8-pin PDIP, SOIC and TSSOP packages. Applications for the MCP3002 include data acquisition, instrumentation and measurement, multi-channel data loggers, industrial PCs, motor control, robotics, industrial automation, smart sensors, portable instrumentation and home medical appliances.
Use your up or down key to switch images.
Tools And Software
Demo & Evaluation Boards
| Tools |
|---|
 This is a blank PCB that allows the operation of Microchip Technology’s 8-pin devices to be easily evaluated.
|
