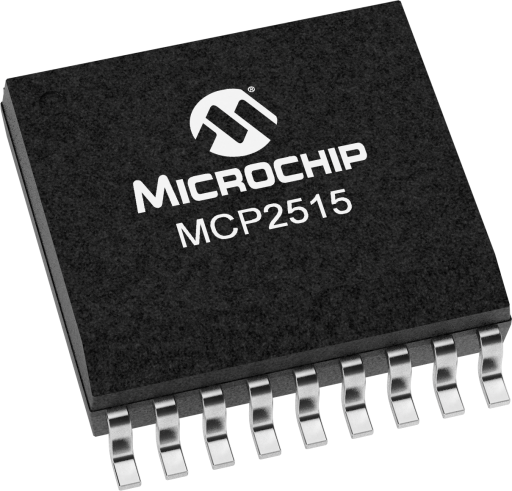

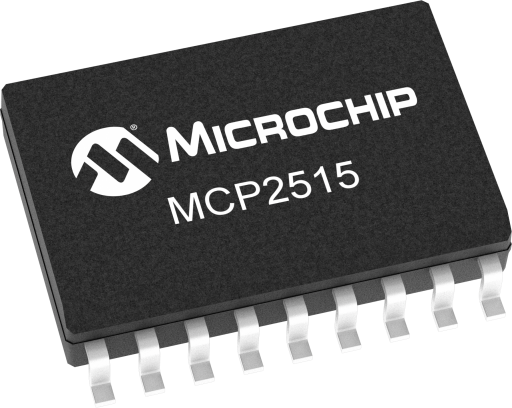

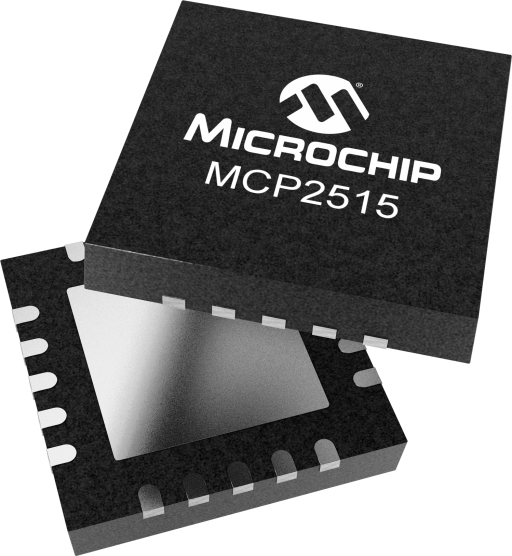

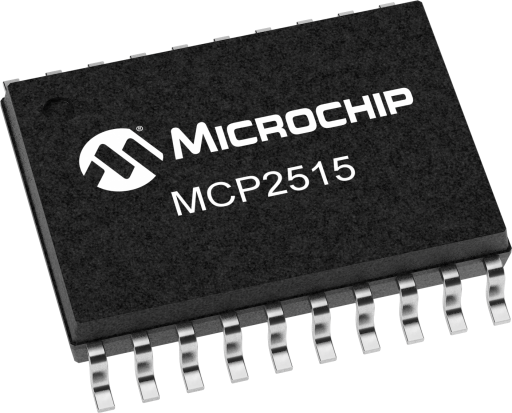

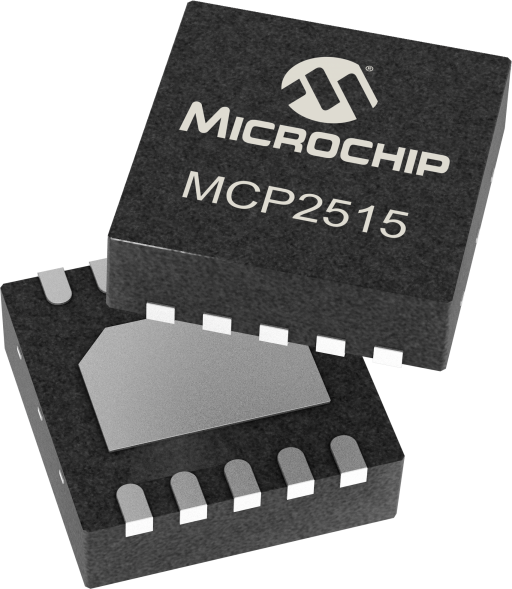

Stand-Alone CAN Controller with SPI Interface
Overview
Alternate products
Compare Products
(2)
- Bitrate Max [MBits/s]:1
- CAN Controllers:1
- Internal CAN Clock:No
- LPM Current Max [uA]:0
- Message RAM [KB]:0
- Operating Voltage Min. [V]:2.7
- Operating Voltage Max. [V]:5.5
- Rx Buffers:2
- RX FIFOs:0
- SPI Interface:Yes
- Serial Bus Speed [MHz]:10
- Standby Current Max [uA]:0
- Operating Temperature Min. [°C]:-40
- Operating Temperature Max. [°C]:125
- Time Stamp (Bits):0
- TX Buffers:3
- TX Event FIFO:0
- TX FIFOs:0
- TX Queue:0
- CAN FD:No
- 18-pin package
- Simple SPI interface to any MCU
- One-shot mode ensures message transmission is attempted only once
- Databyte filtering
- Start-of-Frame (SOF) output
- Low-power CMOS Technology
The MCP2515 is a second generation stand-alone CAN controller. It is pin and function compatible with the MCP2510 and also includes upgraded features like faster throughput, databyte filtering, and support for time-triggered protocols. Please see our MikroElektronika click Board! https://www.mikroe.com/can-spi-5v-click
Use your up or down key to switch images.
Tools And Software
Demo & Evaluation Boards
3rd Party Tools
| Tools |
|---|
 The MCP2515 PICtail Plus Daughter Board is a simple Controller Area Network (CAN) board designed to be used with boards containing the PICtail Plus connector. |
| MCP2515 Bus monitor kit contains two identical boards. One board operates as the bus monitor and the other is the traffic generator.
|
| The MCP2515 PICtail™ Demo Board implements a simple CAN bus using two nodes. |
| The CAN BUS Analyzer Tool is a simple to use low cost CAN bus monitor which can be used to develop and debug a high speed CAN network.
|
| Tools |
|---|
| CAN SPI Click 5V is a compact add-on board that provides a complete CAN solution and can be used as a control node in a CAN network. This board features the MCP2515, a stand-alone CAN controller with an SPI interface from Microchip. This Click board™ also uses the SN65HVD230, a CAN Bus transceiver from Texas Instruments, as an interface between an MCP2515 CAN protocol controller and the physical two-wire CAN bus. This Click board™ makes the perfect solution for developing industrial automation, home automation, and the automotive and mobile machine industry.
CAN SPI Click 5V is supported by a mikroSDK compliant library, which includes functions that simplify software development. This Click board™ comes as a fully tested product, ready to be used on a system equipped with the mikroBUS™ socket. |
