Overview
- Operation Voltage Min.(V):+2
- Operation Voltage Max.(V):+3.6
- Carrier Freq. (kHz):125
- Input Sensitivity (mVpp):1
- Low Standby Current Typ (nA):5 uA when all channels enabled
- Low Operating Current Typ (nA):13 uA when all channels enabled
- Programmable Output Type:Demodulated Output (amplitude), RSSI, or Carrier Clock
- RSSI Output:Analog Current
- Programmable Input Modulation Depth Control:8%, 14 %, 33%, or 66 %
- Sensitivity 1 mV
- Mod. Sens. Depth 6%
- 3-channel input for 3-axis reception
- Dynamically tunable channels

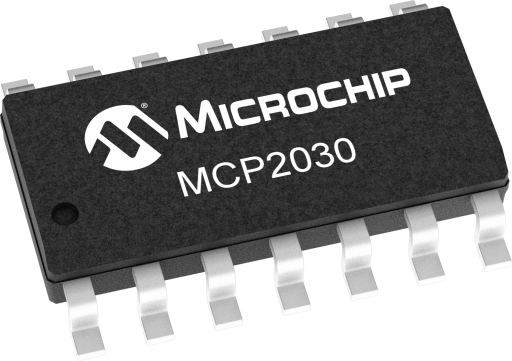

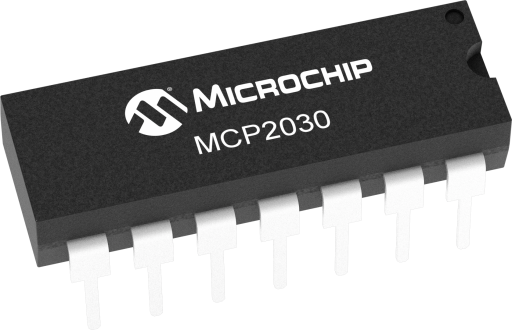

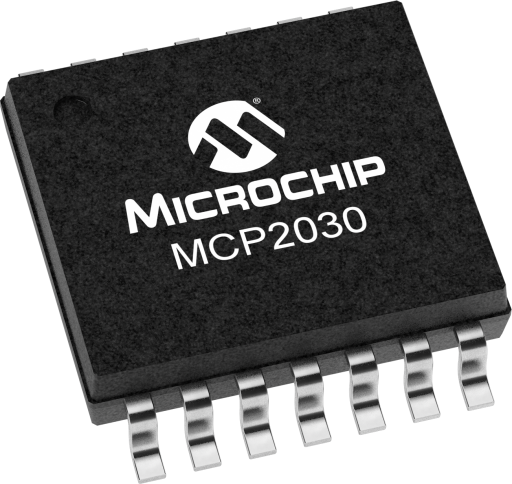

The MCP2030 is an analog front end for low frequency sense and response applications such as hands-free access to vehicles, homes or data. Additionally this device can be used in tire pressure monitoring.
Use your up or down key to switch images.
Tools And Software
Demo & Evaluation Boards
| Tools |
|---|
 The MCP2030 Bidirectional Communication Demo Kit demonstrates short range bidirectional communication applications using the features of the MCP2030. |
