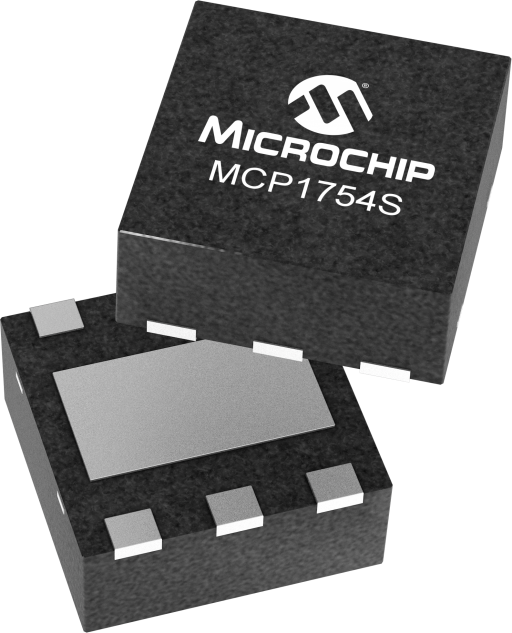

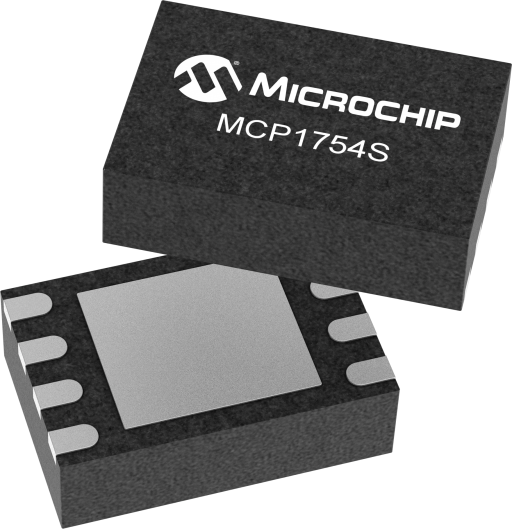

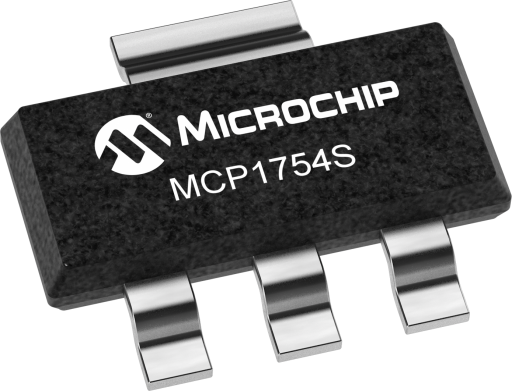

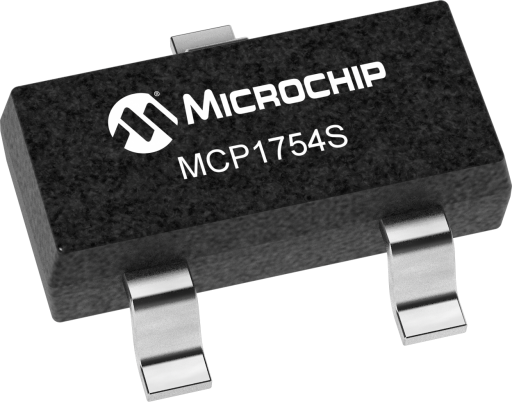

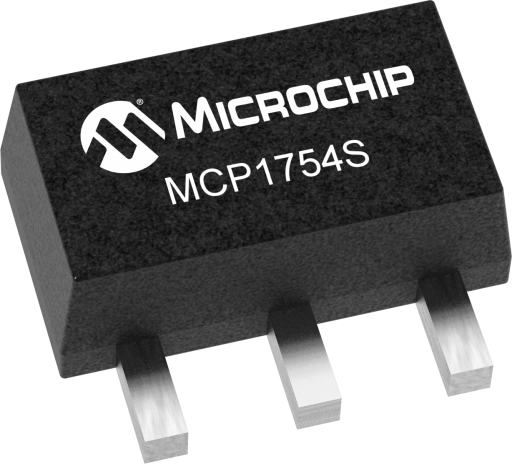

16V, High PSRR, 150mA LDO, Vout=3.3V
Overview
- VIN Min (V) V (volt):3.6
- VIN Max V (volt):16
- VOUT V (volt):1.8, 2.5, 2.8, 3.0, 3.3, 4.0, 5.0
- IOUT #1 Max mA (milliampere):150
- Rated IOUT Max mA (milliampere):150
- Quiescent Current µA (microampere):56
- Voltage Drop Typ (mV):300
- Accuracy (+/-) %:2
- Adjustable VOUT:No
- Reverse Battery:No
- Bypass Pin:No
- Current Limit:Yes
- Shutdown EN:No
- Power Good Signal:No
- Thermal Shutdown:Yes
- High PSRR: 72 dB @1 kHz Typical
- Low 56.0 µA Typical Quiescent Current
- Wide Input Operating Voltage Range: 3.6V to16.0V
- 150 mA Output Current For All Output Voltages
- Low Drop Out Voltage, 300 mV Typical at 150 mA
- 0.4% Typical Output Voltage Regulation
- Standard Output Voltage Options (1.8V, 2.5V, 3.0V, 3.3V, 5.0V), Additional Options Available On Request
- Output Voltage Tolerances of ±2.0% Over Entire Temperature Range
- Stable with Minimum 1.0 µF Output Capacitance
- True Current Foldback Protection
- Short-Circuit Protection
- Overtemperature Protection
- ESD protection (>4kV HBM)
The MCP1754/MCP1754S is a 16 volt, high PSRR voltage regulator with short circuit current foldback. The MCP1754/MCP1754S regulator provides up to 150 mA of current. The input operating voltage range is specified from 3.6V to 16V continuous, 18V absolute maximum, making it ideal for automotive and commercial 12 VDC systems. The MCP1754/MCP1754S typically delivers 72 dB of ripple rejection at 1 kHz, performing well in AC sensitive applications like GFCI and AFCI circuit breaker designs. The Current Foldback feature is a true short circuit current foldback: the device current will gradually drop to 30 mA under short circuit conditions. When the short is removed, the device will recover and continue operating.
