1uA Supervisor Open Drain Active Low
Overview
- Driver Type:Supervisor
- Min Operating Voltage (V):1
- Max Operating Voltage (V):5.5
- Nominal Reset Voltage Min:1.9
- Nominal Reset Voltage Max:4.63
- Watchdog Timer:No
- Manual Reset:No
- Power Fail:No
- Min Operating Ambient Temperature (°C):-40
- Max Operating Ambient Temperature (°C):125
- Operating current: 1.75uA (max)
- Wide Voltage range: 1.0V to 5.5V
- Available Trip Points: 1.9V, 2.32V, 2.63V, 2.93V, 3.08V, 4.38V, 4.63V
- Trip point accuracy: +/- 1.5%
- Output Options: Open-Drain

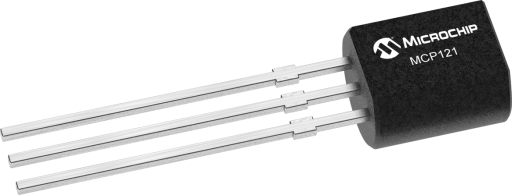

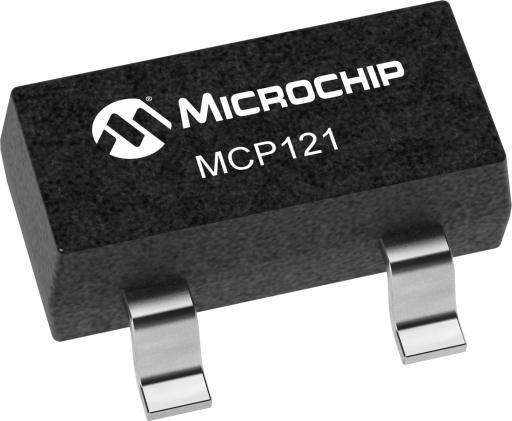

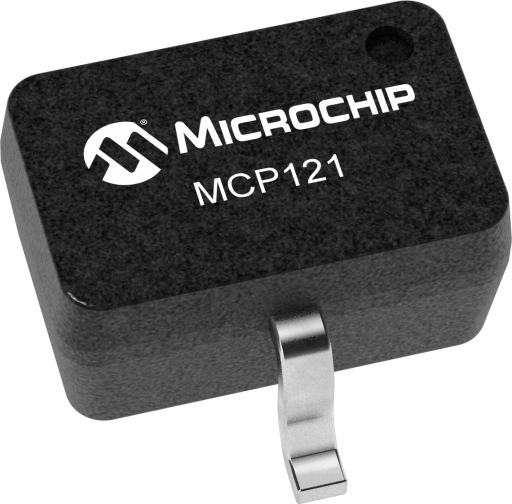

- Package options: SOT23-3, SC70-3, TO92-3
The MCP121 Series of CMOS voltage detectors are well suited for many portable and consumer electrics applications due to the extremely low 1uA operating current and small surface-mount packaging. These devices are designed to hold the microcontroller in reset until the supply voltage reaches a predetermined operating level. These devices also protect against brownout conditions that occur as a result of the supply voltage dropping below a tolerable level.
