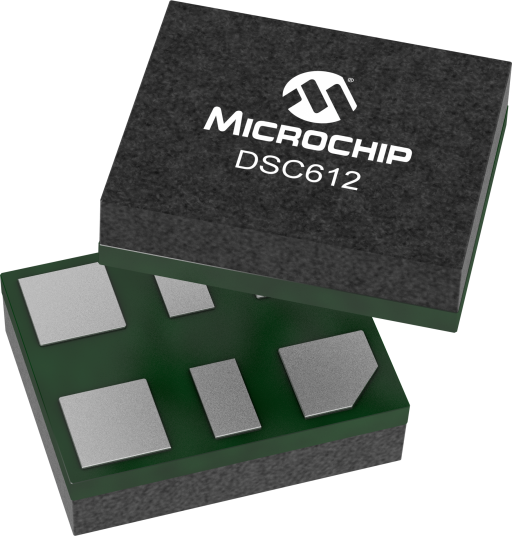

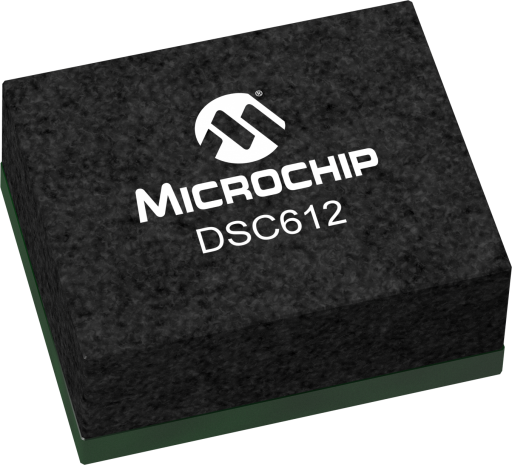

2-Output Any-Rate MEMS Clock Generator
Overview
- Product Type:Low Power Clock Generators
- # of Outputs:2
- Voltage:1.8 - 3.3
- Pull Range (±PPM):0
- Output Logic:LVCMOS
- Output Frequency Min. (MHz):0.002
- Output Frequency Max. (MHz):100
- Supports 2 Any-Rate LVCMOS clock outputs from 2kHz to 100MHz
- Integrated MEMS resonator eliminates the need for external crystal
- Low power consumption: 5mA active 1 µA standby current
- Wide supply voltage range: 1.71V -3.63V
- Ultra-small package size: 1.6mm x 1.2 mm, 2.0mm x 1.6mm, 2.5mm x 2.0mm
- Supports wide temperature range: -40 to +125ºC
- Flexible control functions: Output Enable, Standby, SLEEP, Frequency Select, SpreadSpectrum Enable
- High frequency stability across full temperature range: ±20ppm, ±25ppm, ±50ppm
- Supports 2 output drive strength and Spread Spectrum clock for EMI reduction
- Excellent shock and vibration immunity
- High reliability
- Lead free and RoHS compliant
- Refer to DSA612 for automotive applications
The DSC612 family of devices is industry’s smallest MEMS clock generator that can replace up to two crystals and oscillators on a board, reducing timing component board space by up to 80 percent. The clock generator eliminates the need for an external crystal by integrating the low power and high stability Micro-Electro-Mechanical Systems (MEMS) resonator. The family includes two low power fractional PLLs that provide leading frequency flexibility and robust jitter performance. Customer can configure output frequency, control pin function, package size, PPM accuracy and temperature range. Up to three output drive strengths are available based on the custom board loading condition. Spread-Spectrum clocks are also available for EMI reduction.
The DSC612 is a highly configurable device and is factory programmed to meet the customer’s needs. Please go to ClockWorks Configurator to configure the output frequencies and control functions, generate custom part number and data sheet, and order samples.
DSC613 product family sell sheet
Under the same family, the DSC613 supports three LVCMOS clock outputs and one control input.
