USB 2.0 FS Device
Overview
- Max ADC Resolution (bits):10
- Max ADC Sampling Rate (ksps):130
- Number of ADCs:1
- Internal Oscillator Active Clock Tuning:Yes
- Number of Comparators:1
- Data EEPROM (bytes):256
- Operation Voltage Max.(V):5.5
- OperationVoltageMin:1.8
- RAM (bytes):4096
- Program Memory Size (KB):32
- Low Power:Yes
- # of Channels:21
- Pincount:32
- Stand alone PWM:3
- Zero Cross Detect:0
- Architecture:8
- Internal Voltage Reference (Bandgap):Yes
- Configurable Logic Cell (CLC/CCL):1
- Configurable Logic Cell Modules (CLC /CCL) Type:CCL
- CPU:8-bit AVR MCU
- CPU Speed (MIPS/DMIPS):24
- Debug Interface:UPDI
- Diff ADC Inputs:No
- Max 16-Bit Digital Timers:3 x 16-bit
- Event System Channels:6
- Family:8-bit MCU
- Focus:Yes
- I2C:1
- I/O Pins Max:25
- Key Differences:USB
- Maximum Speed:24
- Number of PWM Time Bases:1
- Number of Cores:1
- Internal Oscillator:Yes
- Output Compare Channels:5
- Brown-Out Reset:Programmable BOR
- Low Voltage Detection:Programmable LVD
- Include in Focus Product Selector Guide:Yes
- PWM Max Resolution (Bits):16
- Part Family:AVR DU
- Part Prefix:AVR
- RAM (KB):4
- SPI:1
- Bootload capable:Yes
- Temp. Sensor:Yes
- Timers:3
- U(S)ART:2
- USB:Full Speed
- Number of USB Modules:1
- USB Active Clock Tuning:Yes
- Windowed Watch Dog Timer (WWDT):Yes
- Peripheral Pin Select / Pin Muxing:Yes
- Input Capture:Yes
- packagePins:32
- Power On Reset:Yes
- Standalone Output Compare/ Standard PWM:3
- TempRange Min:-40
- TempRange Max:85
- Functional Safety
- IEC 60730 Class B library (UL certified)
- ISO 26262 FMEDA
- ISO 26262 Safety Manual
- High-Performance AVR RISC CPU with Hardware Multiplier
- Running up to 24 MHz
- External High-Frequency Oscillator
- Single Cycle I/O Access
- Two-level Interrupt Controller
- Sleep Modes: Idle, Standby, Power-down
- Event System (EVSYS)
- Configurable Custom Logic (CCL)
- Single pin programming and debugging interface (UPDI)
- Analog Features
- 10-bit Analog-to-Digital Converter (ADC)
- Analog Comparator
- Timer/Counters
- Timer/Counter type A (TCA)
- Timer/Counter type B (TCB)
- Communication
- USB 2.0 Full Speed Device
- Serial communication interfaces: USART, SPI, I2C
- Built-in Safety Functions:
- Clock Failure Detection (CFD)
- Power-On Reset (POR)
- Brown-Out-Detection (BOD)
- Voltage Level Monitor (VLM)
- Cyclic Redundancy Check (CRC) Scan
- Window Watchdog Timer with Window Mode (WWDT)
AVR® DU Family
The new AVR® DU family of microcontrollers feature the well-known AVR® CPU, now running at up to 24 MHz across the full supply voltage range of 1.8V to 5.5V. The family includes 16 KB, 32 KB, and 64 KB Flash variants in 14 to 32-pin package options. The AVR® DU family is designed to bring real-time control and USB 2.0 Full Speed device support to applications including industrial control, home appliance products, automotive, and Internet of Things (IoT). The AVR DU support crystal-less USB operation, and includes an optional internal 3.3V voltage regulator.
The family uses the latest Core Independent Peripherals with low-power features and 5V operation for increased noise immunity. The Event System, Configurable Custom Logic (CCL), along with analog peripherals like 10-bit ADC and comparator.
AVR32DU32

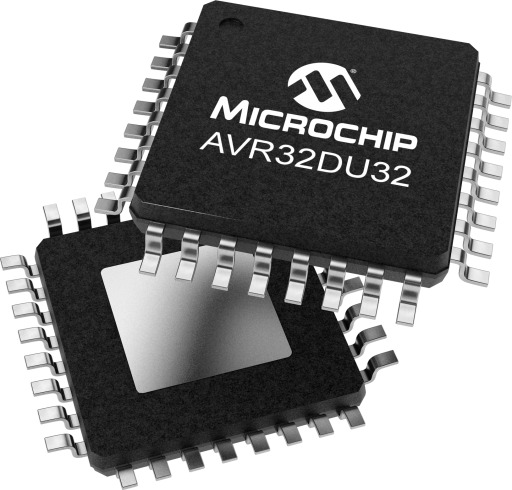

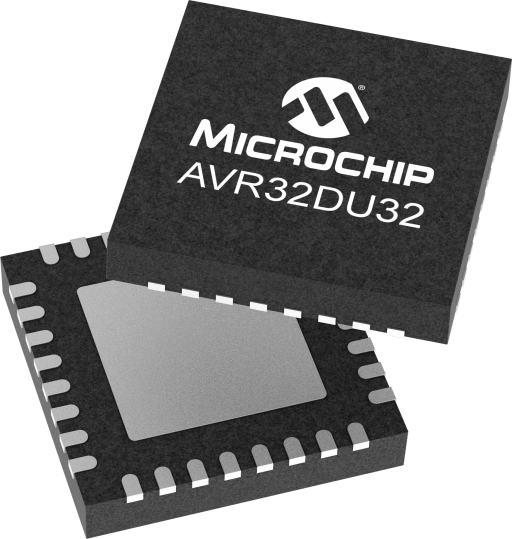

The AVR32DU32 will be available in TQFP and VQFN package options running at up to 24 MHz and with 32 KB Flash, 4 KB SRAM, and 256B of EEPROM.
The AVR32DU32 product support one USB 2.0 Full Speed Device with 16 endpoints each with one input and one output endpoint for up to 32 total endpoints. The USB module has built in DMA access to internal SRAM for improved throughput.
