Overview
Alternate products
Compare Products
(3)
- Device Type:SiP
- Flash (KB):256
- Frequency Range:769 to 935
- Link Budget:121
- Data Range (Kbps) Max:1024
- Modulation:BPSK, O-QPSK
- Operating Temp (°C) Min:-40
- Operating Temp (°C) Max:85
- Operating Voltage (V) Min:1.8
- Operating Voltage (V) Max:3.6
- Packages:QFN
- Pin Count:48
- RX Sensitivity (dBm):-110
- SRAM (KB):40
- Sleep Mode Current Consumption (μA):0.2
- TX Output Power (dBm):11
- Technology Type:Microcontroller
- Wireless Technology:Sub-GHz, Proprietary
- CPU:ARM Cortex-M0+
- TX Current Consumption (mA):26.5
- RX Current Consumption (mA):9.4
- Cortex M0+ MCU + Sub-GHz Transceiver in a single package
- 256 KB flash / 32KB RAM
- 8 KB Low Power Mode retained RAM
- USB Host and Device
- 700 nA typical with RTC
- Hardware AES Crypto accelerators
- True Random Number Generator
- High performance ADC and analog peripherals for sensor nodes
- IEEE 802.15.4-2003/2006/2011 compliant
- 769-935 MHz band support
- 16/28 programmable I/O pins
- 7 x 7 mm 48-pin QFN
- 5 x 5 mm 32-pin QFN available (ATSAMR30E18A)
- 1.8V – 3.6V
- -40°C to 85°C Industrial

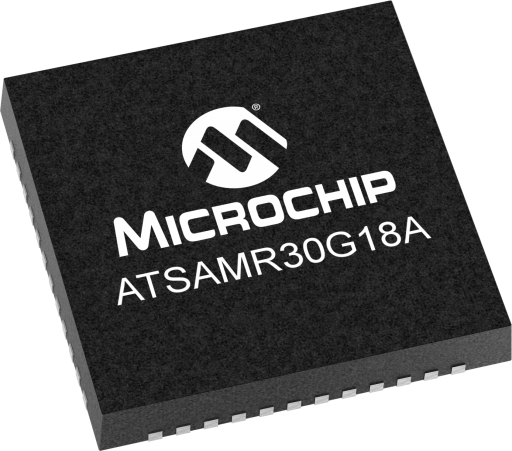

Each ATSAMR30 device is an ultra low-power microcontroller equipped with an IEEE® 802.15.4 compliant radio for the sub-1GHz frequency bands 780 MHz (China), 868 MHz (Europe) and 915 MHz (North America). It uses the 32-bit ARM® Cortex®-M0+ processor and offers 256KB of Flash and 40KB of SRAM (8KB battery backed) in as small as a 5mm QFN32 package. Advanced power management technologies, such as power domain gating, SleepWalking, and ultra low-power peripherals allow for very low power performance and long battery life sensor applications. The ATSAMR30 typically draws less than 500nA at 1.8v battery supply with wake on GPIO, Serial Communication or Real Time Counter.
The highly configurable peripherals includes up to 5 I2C/SPI /UART interfaces with one in the low power domain, 8 12-bit ADC channels, 48 capacitive touch channels with proximity sensing. The sub-GHz Radio supports BPSK and O-QPSK modulation and delivers up to 8dBm TX power with an RX sensitivity of -110dBm.
MiWi, Microchip's proprietary networking technology enables Mesh, Star and Point-to-Point connectivity for the SAMR30 devices. The MiWi library is available in the Advanced Software Framework (ASF) for Atmel Studio IDE.
Use your up or down key to switch images.
Tools And Software
Development Environment
Emulator and Debuggers
Demo & Evaluation Boards
Programmers
3rd Party Tools
Legacy
Library and Firmware
| Tools |
|---|
 MPLAB® X Integrated Development Environment (IDE) is an expandable, highly configurable software program that incorporates powerful tools to help you discover, configure, develop, debug and qualify embedded designs for most of Microchip’s microcontrollers, microprocessors and digital signal controllers.
|
| When combined with our free and award-winning MPLAB X Integrated Development Environment (IDE), the fully graphical frontend provides:
Editing errors and breakpoints that match corresponding lines in the source code
Single stepping through C and C++ (C++ only available in MPLAB XC32++ compilers) source code to inspect variables and structures at critical points
Data structures with defined data types, including floating point, display in watch windows
|
| Tools |
|---|
| The MPLAB® PICkit™ 5 in-circuit debugger/programmer enables quick prototyping and portable, production-ready programming for all Microchip devices, including PIC® microcontrollers (MCUs) and dsPIC® Digital Signal Controllers (DSCs), AVR® and SAM devices and Arm® Cortex®-based microprocessors (MPUs).
|
| The MPLAB® ICD 5 In-Circuit Debugger/Programmer offers advanced connectivity and power options for developers of designs based on PIC®, AVR® and SAM devices and dsPIC® Digital Signal Controllers (DSCs).
|
| The MPLAB ICE 4 in-circuit emulator system boosts productivity with feature-rich programming and debugging for PIC®, AVR® and SAM devices and dsPIC® Digital Signal Controllers (DSCs).
|
| J-32 Debug Probe is a JTAG/ICSP Debugger that supports all of Microchip's 32-bit MCU and MPU products.
|
| The MPLAB® Snap In-Circuit Debugger/Programmer allows affordable, fast and easy debugging and programming of PIC®, dsPIC® and AVR flash MCUs and MPUs, using the powerful graphical user interface of MPLAB X Integrated Development Environment (IDE). The MPLAB Snap can be connected to a design engineer's computer using a High-Speed USB 2.0 interface and can be connected to the target via an 8-pin Single In-Line (SIL) connector. The connector uses two device I/O pins and the reset line to implement in-circuit debugging and In-Circuit Serial Programming™ (ICSP™). It has all the speed and features entry-level users need to quickly debug their prototype.
|
| Tools |
|---|
| The SAM R30 Xplained Pro is a hardware platform designed to evaluate the ATSAMR30G18A SoC.
|
| The ATSAMR30M Sensor Board is a hardware platform to explore and evaluate the capabilities of the ATSAMR30M18A, a Sub-1 GHz IEEE® 802.15.4™ compliant RF module with an integrated ARM Cortex M0+ MCU with 256KB Flash for application and protocol development.
|
| Tools |
|---|
| The MPLAB® PICkit™ 5 in-circuit debugger/programmer enables quick prototyping and portable, production-ready programming for all Microchip devices, including PIC® microcontrollers (MCUs) and dsPIC® Digital Signal Controllers (DSCs), AVR® and SAM devices and Arm® Cortex®-based microprocessors (MPUs).
|
| The MPLAB® ICD 5 In-Circuit Debugger/Programmer offers advanced connectivity and power options for developers of designs based on PIC®, AVR® and SAM devices and dsPIC® Digital Signal Controllers (DSCs).
|
| The MPLAB ICE 4 in-circuit emulator system boosts productivity with feature-rich programming and debugging for PIC®, AVR® and SAM devices and dsPIC® Digital Signal Controllers (DSCs).
|
| J-32 Debug Probe is a JTAG/ICSP Debugger that supports all of Microchip's 32-bit MCU and MPU products.
|
| Atmel-ICE is a powerful development tool for debugging and programming ARM® Cortex®-M based SAM and AVR microcontrollers with on-chip debug capability.
|
| Tools |
|---|
| Microchip Studio is an Integrated Development Environment (IDE) for developing and debugging AVR® and SAM microcontroller applications. It merges all of the great features and functionality of Atmel Studio into Microchip’s well-supported portfolio of development tools to give you a seamless and easy-to-use environment for writing, building and debugging your applications written in C/C++ or assembly code.
|
| The MPLAB® ICD 4 In-Circuit Debugger/Programmer is Microchip’s fastest, cost-effective debugging and programming tool for PIC® Microcontrollers (MCUs), Microprocessors (MPUs) and dsPIC® Digital Signal Controllers (DSCs).
|
| Atmel START is an innovative online tool for intuitive, graphical configuration of embedded software projects. It lets you select and configure software components, drivers and middleware, as well as complete example projects, specifically tailored to the needs of your application. The configuration stage lets you review dependencies between software components, conflicts and hardware constraints. In the case of a conflict, Atmel START will automatically suggest solutions that fit your specific setup.
|
| The MPLAB® PICkit™ 4 In-Circuit Debugger/Programmer allows fast and easy debugging and programming of PIC®, dsPIC® , AVR, SAM and CEC flash microcontrollers and microprocessors.
|
