Overview
- CPU:Cortex-M4
- I2C:4
- CPU Speed Max MHz (megahertz):48
- Operation Voltage Max.(V):3.6
- Operation Voltage Min.(V):1.68
- Internal Oscillator:80Mhz, 2,4,8Mhz , 32Khz, 115Khz
- Part Family:ATSAM4LC8B
- QSPI:0
- Segmented LCD (# of segments):92
- U(S)ART:4 -UART
- Program Memory Size (KB):512
- Pincount:64
- Crypto Engine:Yes
- TempRange Min:-40
- TempRange Max:85
- ARM Cortex-M4 running at up to 48 MHz
- Memory Protection Unit (MPU)
- DSP Instructions, Thumb®-2 instruction set
- 512 Kbytes embedded Flash, 0 wait-state capability up to 24MHz
- 64 Kbytes embedded SRAM
- Embedded voltage regulator for single-supply operation
- Two Power-on-Reset and Two Brown-out Detectors (BOD)
- Quartz or ceramic resonator oscillators: 0.6 to 30MHz main power with Failure Detection and low power 32.768 kHz for RTC or device clock
- High-precision 8/12 MHz factory-trimmed internal RC oscillator
- Slow clock internal RC oscillator as permanent low-power mode device clock
- High speed 80MHz internal RC oscillator
- Low power 32kHz internal RC oscillator
- PLL up to 240MHz for device clock and for USB
- Digital Frequency Locked Loop (DFLL) with wide input range
- Up to 16 peripheral DMA (PDCA) channels
- Active mode down to 90μA/MHz with configurable voltage scaling
- High performance and efficiency: 28 coremark/mA
- Wait mode down to 3μA with fast wake-up time (<1.5μs) supporting SleepWalking
- Full RAM and Logic Retention mode down to 1.5μA with fast wake-up time (<1.5μs)
- Ultra low power Backup mode with/without RTC down to 1.5/0.9μA
- 64-lead LQFP, 10x10 mm, pitch 0.5 mm

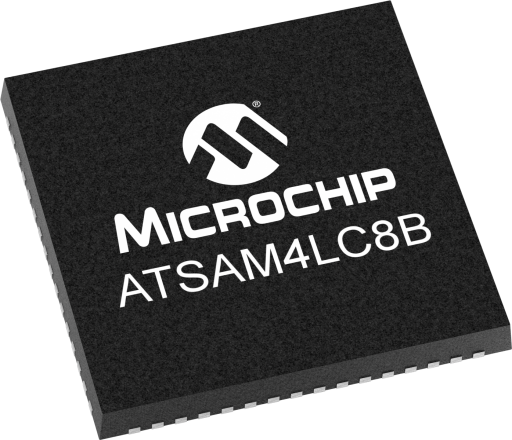

- 64-pad QFN, 9x9 mm, pitch 0.5 mm

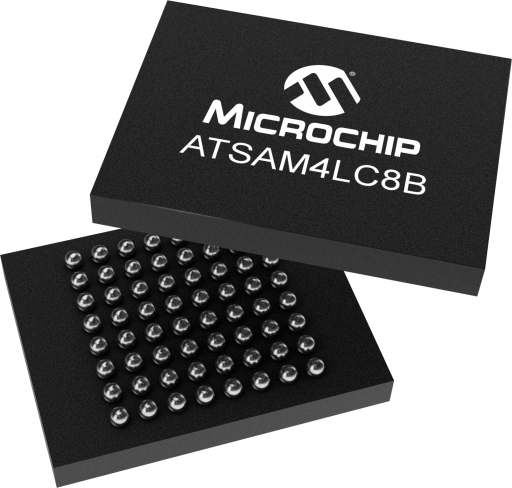

- 64-ball WLCSP, 5,270x5,194 mm, pitch 0.5 mm
- Industrial (-40° C to +85° C)
- USB 2.0 Device and Embedded Host: 12 Mbps, up to 8 bidirectional Endpoints and Multi-packet Ping-pong Mode. On-Chip Transceiver
- One USART with ISO7816, IrDA®, RS-485, SPI, Manchester and LIN Mode
- Three USART with SPI Mode
- One PicoUART for extended UART wake-up capabilities in all sleep modes
- Liquid Crystal Display (LCD) Module with Capacity up to 40 Segments and up to 4 Common Terminals
- Windowed Watchdog Timer (WDT)
- Asynchronous Timer (AST) with Real-time Clock Capability, Counter or Calendar Mode Supported
- Frequency Meter (FREQM) for Accurate Measuring of Clock Frequency
- Three 16-bit Timer/Counter (TC) Channels with capture, waveform, compare and PWM mode
- One Master/Slave Serial Peripheral Interface (SPI) with Chip Select Signals
- Four Master and Two Slave Two-wire Interfaces (TWI), up to 3.4Mbit/s I2C-compatible
- Capacitive Touch Module (CATB) supporting up to 32 buttons
- Inter-IC Sound (IISC) Controller, Compliant with Inter-IC Sound (I2S) Specification
- Peripheral Event System for Direct Peripheral to Peripheral Communication
- Parallel Capture Module (PARC)
- Glue Logic Controller (GLOC)
- 43 I/O lines with external interrupt capability (edge or level sensitivity), debouncing, glitch filtering and slew-rate control
- Three High-drive I/O Pins
- One 8-channel ADC 300Ksps (ADC) with up to 12 Bits Resolution
- One DAC 500Ksps (DACC) with up to 10 Bits Resolution
- Two Analog Comparators (ACIFC) with Optional Window Detection
- Audio Bitstream DAC (ABDACB) Suitable for Stereo Audio
- One Advanced Encryption System (AES) with 128-bit key length
- 32-bit Cyclic Redundancy Check Calculation Unit (CRCCU)
- Random generator (TRNG)
- Serial Wire/JTAG Debug Port(SWJ-DP)
- Debug access to all memories and registers in the system, including Cortex-M4 register bank when the core is running, halted, or held in reset.
- Serial Wire Debug Port (SW-DP) and Serial Wire JTAG Debug Port (SWJ-DP) debug access.
- Flash Patch and Breakpoint (FPB) unit for implementing breakpoints and code patches.
- Data Watchpoint and Trace (DWT) unit for implementing watchpoints, data tracing, and system profiling.
- Instrumentation Trace Macrocell (ITM) for support of printf style debugging.
- IEEE1149.1 JTAG Boundary-scan on all digital pins.
- ASF-Atmel software Framework – SAM software development framework
- Integrated in the Atmel Studio IDE with a graphical user interface or available as standalone for GCC, IAR compilers.
- DMA support, Interrupt handlers Driver support
- USB, TCP/IP, Wi-Fi and Bluetooth, Numerous USB classes, DHCP and Wi-Fi encryption Stacks
- RTOS integration, FreeRTOS is a core component
A member of the Microchip's SAM4L family of flash microcontrollers based on the ARM® Cortex®-M4 processor, the ATSAM4LC8B delivers the lowest power in active mode (90uA/MHz) as well as sleep mode (1.5uA) and the shortest wake-up time (down to 1.5us) in a Cortex-M4-based device.
Along with 512KB of embedded flash memory, the device features an LCD controller, hardware cryptography, USB host and device, peripheral event system, SleepWalking intelligent peripherals, and built-in security, including 128-bit Advanced Encryption Standard (AES).
Integrated Microchip QTouch technology makes it easy to bring capacitive touch functionality to your hardware.
