ATSAM4E16C | Microchip Technology

ATSAM4E16C

Status: In Production
Data Sheet:
PDF
SAM4E Series Datasheet
Overview Documentation Tools And Software Design Resources Similar Devices Purchase Related Videos

Overview

  • Part Family:ATSAM4E16C
  • CPU Type:Cortex-M4
  • MaxSpeed (MHz):120
  • Program Memory Size (KB):1024
  • SRAM (KB):128
  • Temp. Range Min.:-40
  • Temp. Range Max.:85
  • Operation Voltage Min.(V):1.62
  • Operation Voltage Max.(V):3.6
  • SPI:3
  • I2C:2
  • UART:4
  • QSPI:0
  • Crypto Engine:Yes
  • Internal Oscillator:4,8,12Mhz,32Khz
  • Pin Count:100
Read more
  • ARM Cortex-M4 with 2 Kbytes Cache running at up to 120 MHz
  • Memory Protection Unit (MPU)
  • DSP Instructions, Floating Point Unit (FPU), Thumb®-2 instruction set
  • 1024 Kbytes Embedded Flash
  • 128 Kbytes Embedded SRAM
  • 16 Kbytes ROM with Embedded Boot Loader Routines (UART) and IAP Routines
  • Embedded voltage regulator for single-supply operation
  • Power-on-Reset (POR), Brown-out Detector (BOD) and Dual Watchdog for Safe Operation
  • Quartz or ceramic resonator oscillators: 3 to 20 MHz with clock failure detection and 32.768 kHz for RTT or system clock
  • RTC with Gregorian and Persian Calendar Mode, Waveform Generation in Backup mode
  • RTC counter calibration circuitry compensates for 32.768 kHz crystal frequency inaccuracy
  • High-precision 8/16/24 MHz factory-trimmed internal RC oscillator. In-application trimming access for frequency adjustment
  • Slow clock internal RC oscillator as permanent low-power mode device clock
  • One PLL up to 240 MHz for Device Clock and for USB
  • Temperature Sensor
  • Low-power tamper detection on two inputs, anti-tampering by immediate clear of general-purpose backup registers (GPBR)
  • Up to 2 Peripheral DMA Controllers (PDC) with up to 33 Channels
  • One 4-channel DMA Controller
  • Sleep, Wait and Backup modes, down to 0.9 µA in Backup mode with RTC, RTT, and GPBR

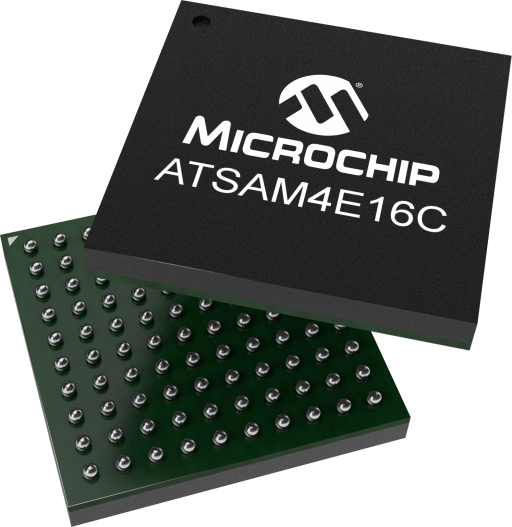

  • 100-ball TFBGA, 9x9 mm, pitch 0.8 mm

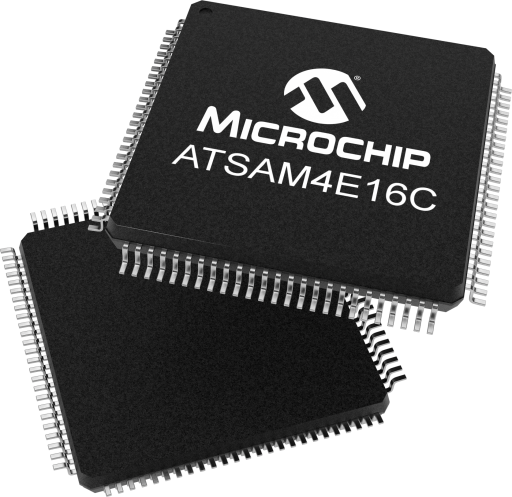

  • 100-lead LQFP, 14x14 mm, pitch 0.5 mm
  • Revision A - Industrial (-40° C to +85° C), Revision B -(-40° C to +105° C)
  • Two USARTs with USART1 (ISO7816, IrDA®, RS-485, SPI, Manchester and Modem Modes)
  • USB 2.0 Device: Full Speed (12 Mbits), 2668 byte FIFO, up to 8 Endpoints. On-chip Transceiver
  • Two 2-wire UARTs
  • Two 2-wire Interfaces (TWI)
  • High-speed Multimedia Card Interface (SDIO/SD Card/MMC)
  • One Master/Slave Serial Peripheral Interface (SPI) with Chip Select Signals
  • Three 3-channel 32-bit Timer/Counter blocks with Capture, Waveform, Compare and PWM Mode. Quadrature Decoder Logic and 2-bit Gray Up/Down Counter for Stepper Motor.
  • 32-bit low-power Real-time Timer (RTT) and low-power Real-time Clock (RTC) with calendar and alarm features
  • 256-bit General Purpose Backup Registers (GPBR)
  • One Ethernet MAC (GMAC) 10/100 Mbps in MII mode only with dedicated DMA and Support for IEEE1588, Wake-on-LAN
  • One CAN Controllers with eight Mailboxes
  • 4-channel 16-bit PWM with Complementary Output, Fault Input, 12-bit Dead Time Generator Counter for Motor Control.
  • Real-time Event Management
  • Up to 79 I/O Lines with External Interrupt Capability (Edge or Level Sensitivity), Debouncing, Glitch Filtering
  • Bidirectional Pad, Analog I/O, Programmable Pull-up/Pull-down
  • Five 32-bit Parallel Input/Output Controllers, Peripheral DMA Assisted Parallel Capture Mode
  • AES 256-bit Key Algorithm compliant with FIPS Publication 197
  • AFE (Analog Front End): 2x16-bit ADC, up to 24-channels, Differential Input Mode, Programmable Gain Stage, Auto Calibration and Automatic Offset Correction
  • One 2-channel 12-bit 1 Msps DAC
  • One Analog Comparator with Flexible Input Selection, Selectable Input Hysteresis
  • Serial Wire/JTAG Debug Port(SWJ-DP)
  • Debug access to all memories and registers in the system, including Cortex-M4 register bank when the core is running, halted, or held in reset.
  • Serial Wire Debug Port (SW-DP) and Serial Wire JTAG Debug Port (SWJ-DP) debug access.
  • Flash Patch and Breakpoint (FPB) unit for implementing breakpoints and code patches.
  • Data Watchpoint and Trace (DWT) unit for implementing watchpoints, data tracing, and system profiling.
  • Instrumentation Trace Macrocell (ITM) for support of printf style debugging.
  • IEEE1149.1 JTAG Boundary-scan on all digital pins.
  • ASF-Atmel software Framework – SAM software development framework
  • Integrated in the Atmel Studio IDE with a graphical user interface or available as standalone for GCC, IAR compilers.
  • DMA support, Interrupt handlers Driver support
  • USB, TCP/IP, Wi-Fi and Bluetooth, Numerous USB classes, DHCP and Wi-Fi encryption Stacks
  • RTOS integration, FreeRTOS is a core component
